MTZJT-72 Series

Catalog

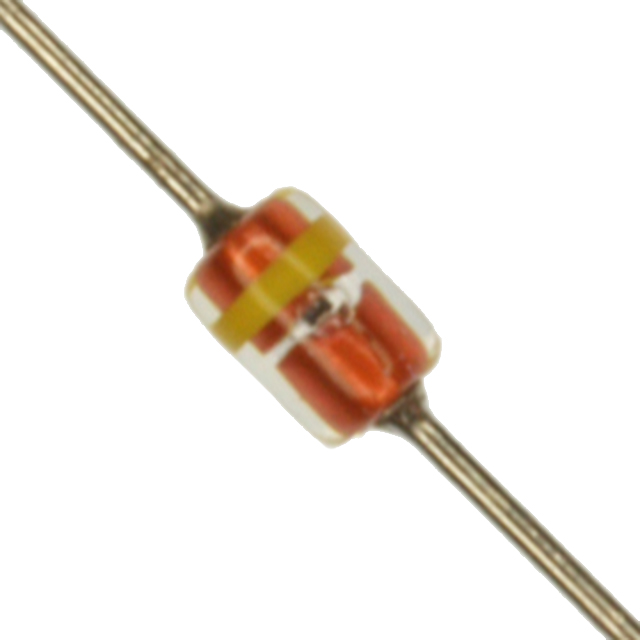

DIODE ZENER 18V 500MW MSD

Part	Current - Reverse Leakage @ Vr	Package / Case	Impedance (Max) (Zzt) [Max]	Power - Max [Max]	Supplier Device Package	Mounting Type	Tolerance	Voltage - Zener (Nom) (Vz)
Rohm Semiconductor MTZJT-7218B	200 nA	Axial DO-204AG DO-34	30 Ohms	500 mW	MSD	Through Hole	3 %	18 V
Rohm Semiconductor MTZJT-7210C	200 nA	Axial DO-204AG DO-34	20 Ohms	500 mW	MSD	Through Hole	3 %	10 V
Rohm Semiconductor MTZJT-7215B	200 nA	Axial DO-204AG DO-34	25 Ohms	500 mW	MSD	Through Hole	3 %	15 V
Rohm Semiconductor MTZJT-7227B	200 nA	Axial DO-204AG DO-34		500 mW	MSD	Through Hole	3 %	27 V
Rohm Semiconductor MTZJT-7212B	200 nA	Axial DO-204AG DO-34	25 Ohms	500 mW	MSD	Through Hole	3 %	12 V
Rohm Semiconductor MTZJT-7211B	200 nA	Axial DO-204AG DO-34	20 Ohms	500 mW	MSD	Through Hole	3 %	11 V
Rohm Semiconductor MTZJT-724.3C	5 µA	Axial DO-204AG DO-34		500 mW	MSD	Through Hole	3 %	4.3 V
Rohm Semiconductor MTZJT-7216B	200 nA	Axial DO-204AG DO-34	25 Ohms	500 mW	MSD	Through Hole	3 %	16 V
Rohm Semiconductor MTZJT-7224B	200 nA	Axial DO-204AG DO-34	35 Ohms	500 mW	MSD	Through Hole	3 %	24 V
Rohm Semiconductor MTZJT-7236B	200 nA	Axial DO-204AG DO-34	75 Ohms	500 mW	MSD	Through Hole	3 %	36 V
