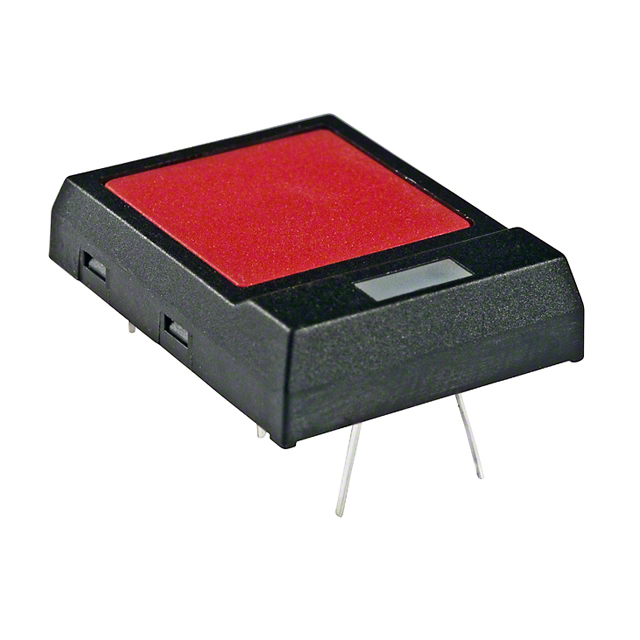

JF15RP1C Series
Manufacturer: NKK Switches
Beta
⌘K
ILLUMINATED ULTRA-THIN PROCESS SEALED TACTILE
| Part | Switch Travel | Actuator Material | Mechanical Life | Switch Function | Features | Contact Rating @ Voltage | Actuator Height off PCB, Vertical | Termination Style | Illumination | Operating Force | Illumination Voltage (Nominal) | Mounting Type | Actuator Type | Operating Temperature [Min] | Operating Temperature [Max] | Illumination Type, Color | Circuit | Actuator Orientation | Outline [x] | Outline [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 0.4 mm | Polyamide (PA) Nylon | 500000 Cycles | Off-Mom | Process Sealed | 0.05 A 24 VDC | 5.08 mm | PC Pin | Illuminated | 300 gf | 2 VDC | Through Hole | Square Button | -25 °C | 70 °C | Green LED | SPST-NO | Top Actuated | 22.8 mm | 17.7 mm |
 NKK Switches | 0.4 mm | Polyamide (PA) Nylon | 500000 Cycles | Off-Mom | Process Sealed | 0.05 A 24 VDC | 5.08 mm | PC Pin | Illuminated | 300 gf | 2 VDC | Through Hole | Square Button | -25 °C | 70 °C | LED Red | SPST-NO | Top Actuated | 22.8 mm | 17.7 mm |
