GK1LAC-P Series
Manufacturer: ODU
Beta
⌘K

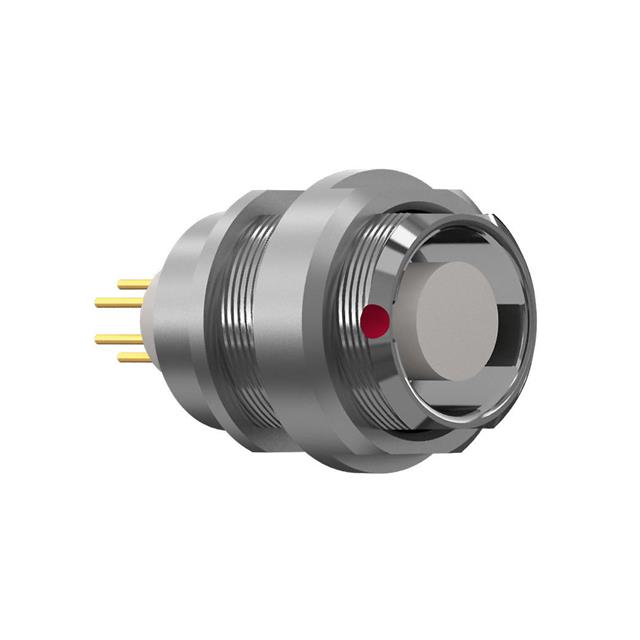

ODU MINI-SNAP RT.ANGLE RECEPT, S
| Part | Current Rating (Amps) | Fastening Type | Mounting Type | Insert Material | Shell Size - Insert | Features | Number of Positions | Orientation | Contact Material | Primary Material | Mounting Feature | Ingress Protection | Color | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Applications | Shielding | Termination | Contact Finish - Mating | Shell Finish | Shell Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
4 A | Push-Pull | Panel Mount Through Hole | Polyetheretherketone (PEEK) | 1 | Ground | 14 | A | Brass | Metal | Bulkhead - Front Side Nut | IP50 - Dust Protected | Silver | Receptacle Female Sockets | 120 °C | -40 C | 300 VDC | Industrial Medical Military Testing Equipment & Measurement | Unshielded | Solder | Gold | Chrome over Nickel | Brass | |
7.5 A | Push-Pull | Panel Mount | Polyetheretherketone (PEEK) | 1 | Ground | 6 | A | Brass | Metal | Bulkhead - Front Side Nut | IP50 - Dust Protected | Silver | Receptacle Female Sockets | 120 °C | -40 C | 333 V | Industrial Medical Military Testing Equipment & Measurement | Unshielded | Gold | Chrome over Nickel | Brass | ||
6 A | Push-Pull | Panel Mount Through Hole | Polyetheretherketone (PEEK) | 1 | Ground | 8 | A | Brass | Metal | Bulkhead - Front Side Nut | IP50 - Dust Protected | Silver | Receptacle Female Sockets | 120 °C | -40 C | 333 V | Industrial Medical Military Testing Equipment & Measurement | Unshielded | Solder | Gold | Chrome over Nickel | Brass | |
4 A | Push-Pull | Panel Mount Through Hole | Polyetheretherketone (PEEK) | 1 | Ground | 14 | A | Brass | Metal | Bulkhead - Front Side Nut | IP50 - Dust Protected | Silver | Receptacle Female Sockets | 120 °C | -40 C | 300 VDC | Industrial Medical Military Testing Equipment & Measurement | Unshielded | Solder | Gold | Chrome over Nickel | Brass | |
7.5 A | Push-Pull | Panel Mount | Polyetheretherketone (PEEK) | 1 | Ground | 8 | A | Brass | Metal | Bulkhead - Front Side Nut | IP50 - Dust Protected | Silver | Receptacle Female Sockets | 120 °C | -40 C | 300 VDC | Industrial Medical Military Testing Equipment & Measurement | Unshielded | Gold | Chrome over Nickel | Brass | ||
10 A | Push-Pull | Panel Mount | Polyetheretherketone (PEEK) | 1 | Ground | 5 | A | Brass | Metal | Bulkhead - Front Side Nut | IP50 - Dust Protected | Silver | Receptacle Female Sockets | 120 °C | -40 C | 333 V | Industrial Medical Military Testing Equipment & Measurement | Unshielded | Crimp | Gold | Chrome over Nickel | Brass | |
15 A | Push-Pull | Panel Mount | Polyetheretherketone (PEEK) | 1 | Ground | A | Brass | Metal | Bulkhead - Front Side Nut | IP50 - Dust Protected | Silver | Receptacle Female Sockets | 120 °C | -40 C | 333 V | Industrial Medical Military Testing Equipment & Measurement | Unshielded | Crimp | Gold | Chrome over Nickel | Brass | ||
4 A | Push-Pull | Panel Mount Through Hole | Polyetheretherketone (PEEK) | 1 | Ground | 10 | A | Brass | Metal | Bulkhead - Front Side Nut | IP50 - Dust Protected | Silver | Receptacle Female Sockets | 120 °C | -40 C | 333 V | Industrial Medical Military Testing Equipment & Measurement | Unshielded | Solder | Gold | Chrome over Nickel | Brass |
