160313 Series

Catalog

CONN QC RCPT 13-17AWG 0.250

Part	Wire Gauge [Min]	Wire Gauge [Max]	Termination	Contact Finish	Contact Material	Tab Width	Tab Width	Gender	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Color	Length - Overall [x]	Length - Overall [x]	Insulation	Tab Length	Tab Length	Mounting Type	Tab Thickness	Tab Thickness	Terminal Type

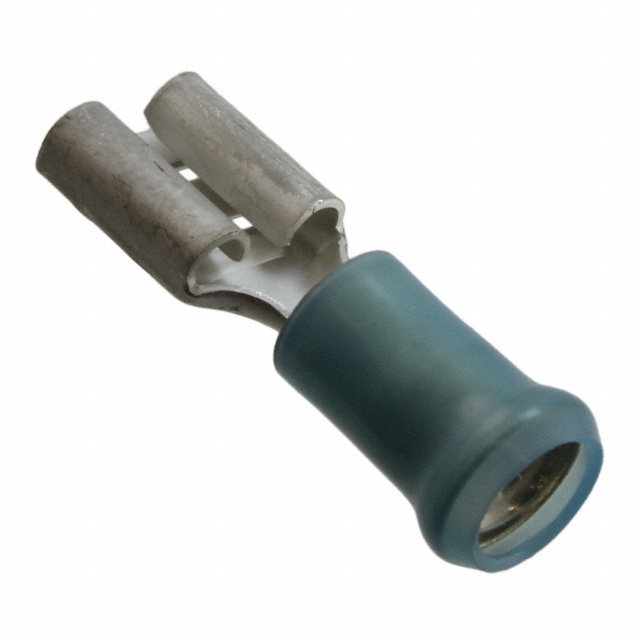

TE Connectivity Raychem Cable Protection 9-160313-5	13 AWG	17 AWG	Crimp	Tin	Phosphor Bronze	6.35 mm	0.25 in	Female	4.29 mm	0.169 in	Blue	23.2 mm	0.913 in	Non-Mating End Insulated	0.303 in	7.7 mm	Free Hanging (In-Line)	0.032 in	0.81 mm	Standard

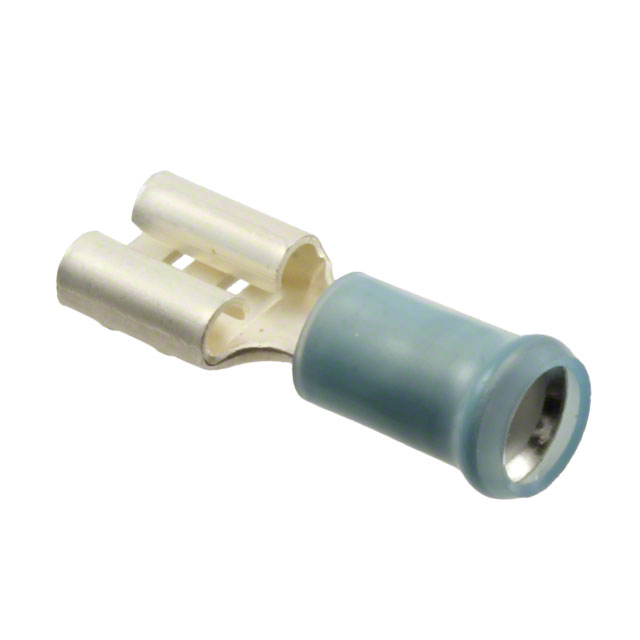

TE Connectivity Raychem Cable Protection 9-160313-6	13 AWG	17 AWG	Crimp	Silver	Phosphor Bronze	6.35 mm	0.25 in	Female	4.29 mm	0.169 in	Blue	23.2 mm	0.913 in	Non-Mating End Insulated	0.303 in	7.7 mm	Free Hanging (In-Line)	0.032 in	0.81 mm	Standard
