MAX17670 Series

Catalog

EVAL MAX17670E LDO REG

Part	Outputs and Type	Outputs and Type	Voltage - Output	Current - Output	Frequency - Switching	Main Purpose	Utilized IC / Part	Regulator Topology	Voltage - Input [Max]	Voltage - Input [Min]	Board Type	Supplied Contents	Package / Case	Supplier Device Package	Frequency - Switching [Max]	Frequency - Switching [Min]	Voltage/Current - Output 1	Voltage/Current - Output 1	Voltage/Current - Output 2	Voltage/Current - Output 2	Voltage/Current - Output 3	Voltage/Current - Output 3	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Outputs	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Function	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Topology	Output Type	Voltage - Output (Min/Fixed)	Output Configuration

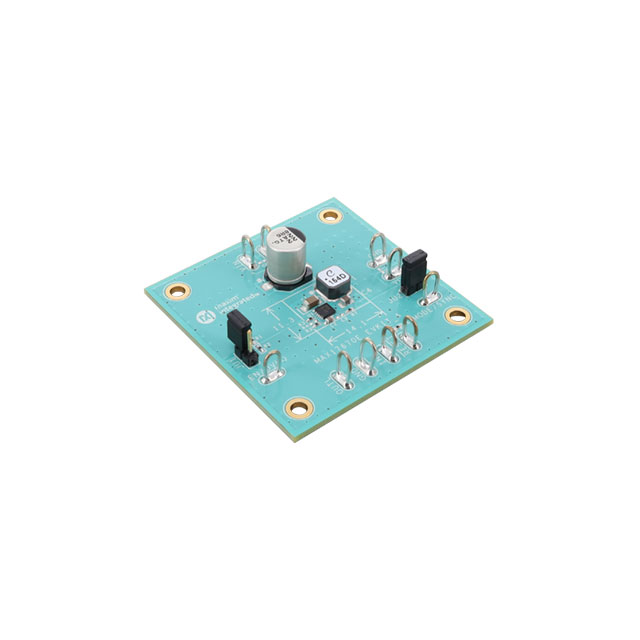

Analog Devices Inc./Maxim Integrated MAX17670EEVKIT#	Non-Isolated	1	3.3 V	150 mA	200 kHz	DC/DC Step Down	MAX17670	Buck	60 V	4.5 V	Fully Populated	Board(s)
Analog Devices Inc./Maxim Integrated MAX17670EATB+T													10-WFDFN Exposed Pad	10-TDFN (3x3)	2.2 MHz	200 kHz	Fixed	3.3 V 150 mA	3.3 V 150 mA	Fixed	3 V 50 mA	Fixed	60 V	4 V	3	Surface Mount	-40 °C	125 °C
Analog Devices Inc./Maxim Integrated MAX17670EATB+				150 mA	610 kHz								10-WFDFN Exposed Pad	10-TDFN (3x3)											1	Surface Mount	-40 °C	125 °C	Step-Down	4 V	60 V	Buck	1.81 mOhm	3.3 V	Positive
