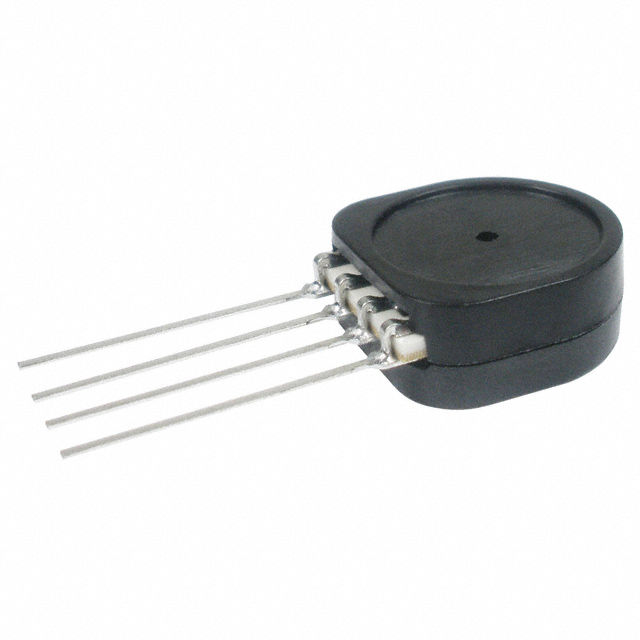

HSCSSNN Series

Catalog

SENSOR 1PSID 12BIT 4SIP

Part	Mounting Type	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Maximum Pressure	Maximum Pressure	Output	Accuracy	Port Style	Supplier Device Package	Applications	Termination Style	Features	Pressure Type	Operating Temperature [Max]	Operating Temperature [Min]	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Pressure	Operating Pressure	Maximum Pressure	Maximum Pressure	Output [Min]	Output [Max]	Operating Pressure [custom]	Operating Pressure [custom]

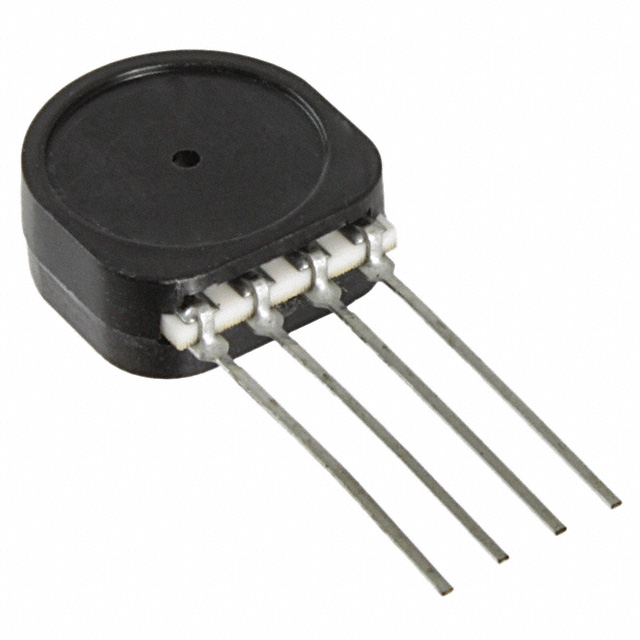

Honeywell Sensing and Productivity Solutions HSCSSNN001PD2A3	Through Hole	I2C	3.6 V	3 V	4-SIP Module	68.95 kPa	10 PSI	12 b	0.25 %	No Port	4-SIP	Board Mount	PC Pin	Amplified Output Temperature Compensated	Differential	85 °C	-20 C
Honeywell Sensing and Productivity Solutions HSCSSNN100PG2A3	Through Hole	I2C	3.6 V	3 V	4-SIP Module			12 b	0.25 %	No Port	4-SIP	Board Mount	PC Pin	Amplified Output Temperature Compensated	Vented Gauge	85 °C	-20 C	250 PSI	1723.69 kPa	689.48 kPa	100 PSI
Honeywell Sensing and Productivity Solutions HSCSSNN005PDAA5	Through Hole	Analog Voltage	5.25 V	4.75 V	4-SIP Module				0.25 %	No Port	4-SIP	Board Mount	PC Pin	Amplified Output Temperature Compensated	Differential	85 °C	-20 C			34.47 kPa	5 PSI	±30PSI	±206.84kPa	0.5 V	4.5 V
Honeywell Sensing and Productivity Solutions HSCSSNN015PG2A5	Through Hole	I2C	5.25 V	4.75 V	4-SIP Module			12 b	0.25 %	No Port	4-SIP	Board Mount	PC Pin	Amplified Output Temperature Compensated	Vented Gauge	85 °C	-20 C	30 PSI	206.84 kPa							15 PSI	103.42 kPa
