BC856 Series

Manufacturer: Micro Commercial Components

Catalog

INTERFACE

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Package / Case	Supplier Device Package	Voltage - Collector Emitter Breakdown (Max)	Current - Collector Cutoff (Max) [Max]	Frequency - Transition	Transistor Type	DC Current Gain (hFE) (Min) @ Ic, Vce	Vce Saturation (Max) @ Ib, Ic	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]	Qualification	Grade	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Voltage - Collector Emitter Breakdown (Max) [Max]
Micro Commercial Components BC856AW-TP	150 °C	-65 °C	Surface Mount	SC-70 SOT-323	SOT-323	65 V	15 nA	100 MHz	PNP	125 hFE	650 mV	100 mA	150 mW
Micro Commercial Components BC856BWHE3-TP	150 °C	-65 °C	Surface Mount	SC-70 SOT-323	SOT-323	65 V	100 nA	100 MHz	PNP	220 hFE	650 mV	100 mA	150 mW	AEC-Q101	Automotive
Micro Commercial Components BC856AM3-TP	150 °C	-55 °C	Surface Mount	SOT-723	SOT-723	65 V	1 mA	100 MHz	PNP		650 mV	100 mA	265 mW			110

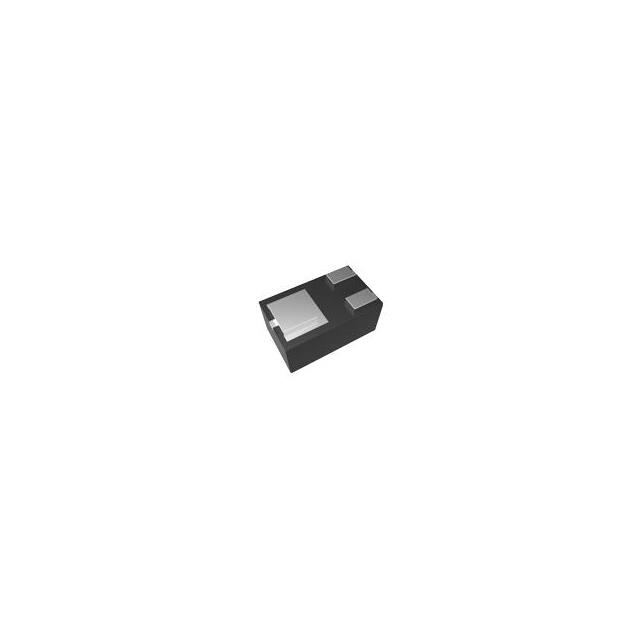

Micro Commercial Components BC856BM-TP	150 °C	-55 °C	Surface Mount	SC-101 SOT-883	SOT-883	65 V	100 nA	100 MHz	PNP	220 hFE	500 mV	100 mA
Micro Commercial Components BC856BW-TP	150 °C	-65 °C	Surface Mount	SC-70 SOT-323	SOT-323	65 V	15 nA	100 MHz	PNP	220 hFE	650 mV	100 mA	150 mW
Micro Commercial Components BC856BS-TPQ2	150 °C	-55 °C	Surface Mount	6-TSSOP SC-88 SOT-363	SOT-363		15 nA	100 MHz	2 PNP		650 mV	100 mA	200 mW			200	65 V

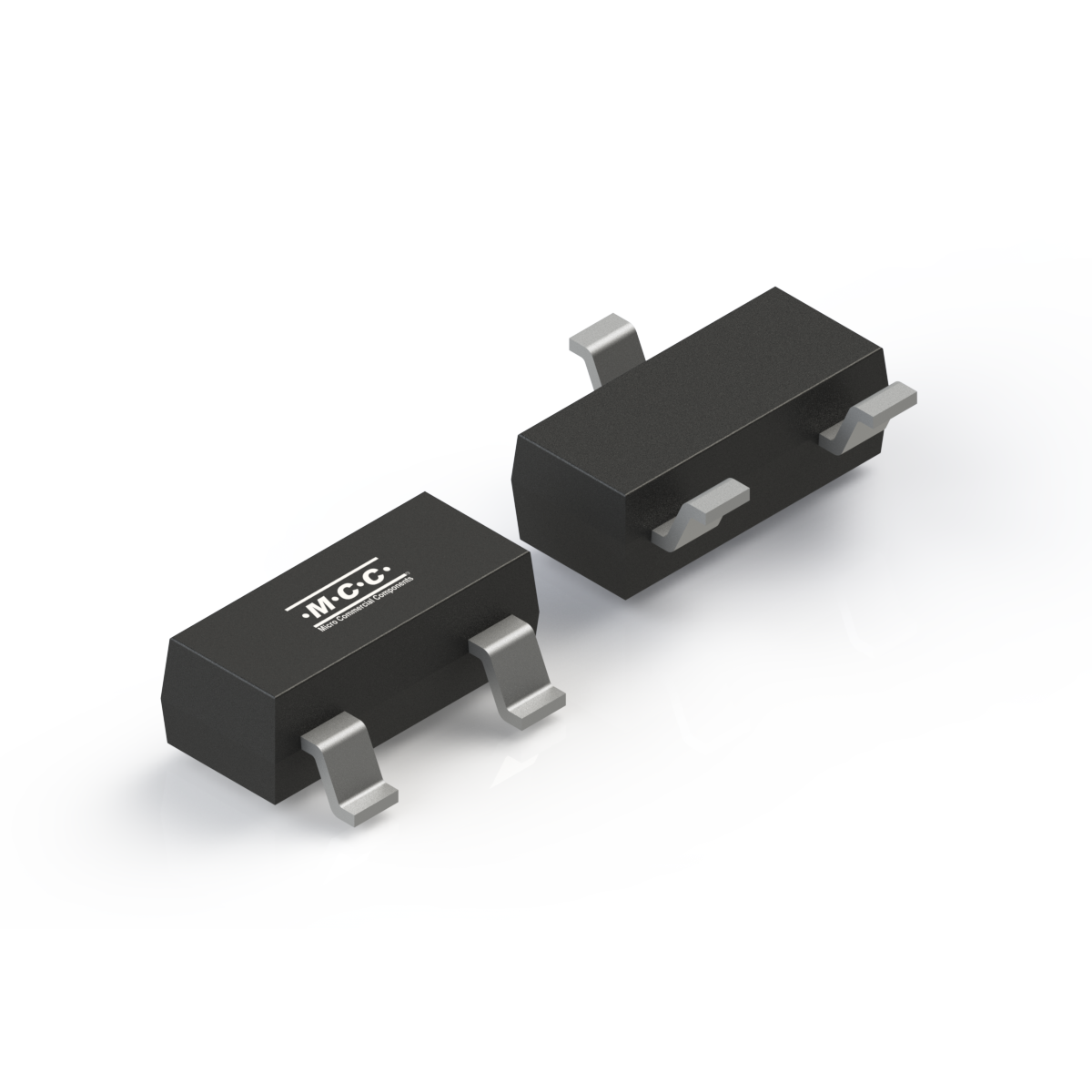

Micro Commercial Components BC856B-TP	150 °C	-55 °C	Surface Mount	SC-59 SOT-23-3 TO-236-3	SOT-23	65 V	15 nA	200 MHz	PNP	220 hFE	650 mV	100 mA	310 mW
Micro Commercial Components BC856AL3-TP	150 °C	-55 °C	Surface Mount	SC-101 SOT-883	DFN1006-3	65 V	1 mA	100 MHz	PNP		650 mV	100 mA	150 mW			110
