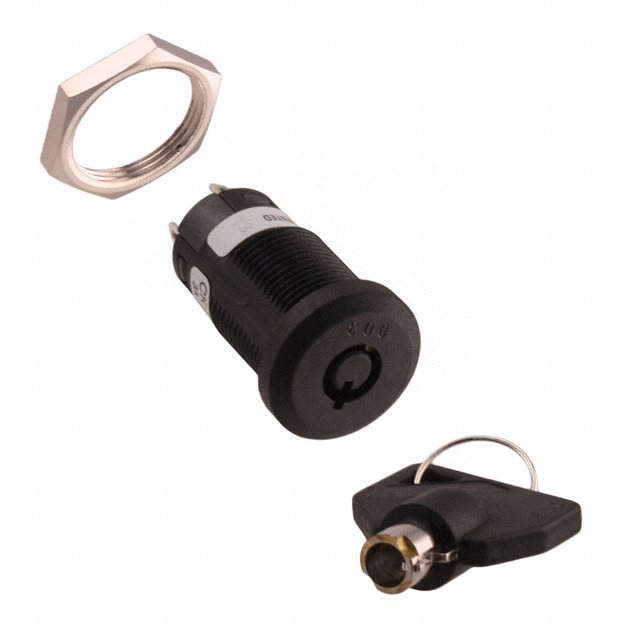

CKM13ETW Series

Catalog

SWITCH KEYLOCK 3POS SPDT 3A 250V

Part	Depth Behind Flange	Electrical Life	Mechanical Life	Panel Cutout Dimensions [diameter]	Key Removable Positions	Voltage Rating - AC	Mounting Type	Features	Current Rating (Amps)	Angle of Throw	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Circuit	Actuator Type	Contact Timing	Contact Material	Termination Style	Switch Function
NKK Switches CKM13ETW01-012	31.2 mm	10000 Cycles	30000 Steps	16 mm	2	250 V	Panel Mount	Epoxy Sealed Terminals	3 A	45 °	-25 °C	70 °C	Silver	SPDT	Tubular Key	Non-Shorting (BBM)	Silver (Ag)	Solder Lug	On-Off-On
NKK Switches CKM13ETW01-011	31.2 mm	10000 Cycles	30000 Steps	16 mm	2	250 V	Panel Mount	Epoxy Sealed Terminals	3 A	45 °	-25 °C	70 °C	Silver	SPDT	Tubular Key	Non-Shorting (BBM)	Silver (Ag)	Solder Lug	On-Off-On
NKK Switches CKM13ETW01-020	31.2 mm	10000 Cycles	30000 Steps	16 mm	2	250 V	Panel Mount	Epoxy Sealed Terminals	3 A	45 °	-25 °C	70 °C	Silver	SPDT	Tubular Key	Non-Shorting (BBM)	Silver (Ag)	Solder Lug	On-Off-On

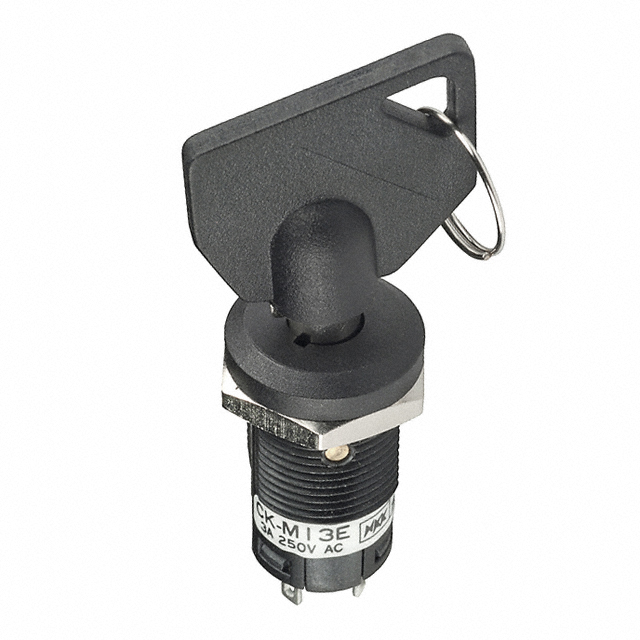

NKK Switches CKM13ETW01-003	31.2 mm	10000 Cycles	30000 Steps	16 mm	2	250 V	Panel Mount	Epoxy Sealed Terminals	3 A	45 °	-25 °C	70 °C	Silver	SPDT	Tubular Key	Non-Shorting (BBM)	Silver (Ag)	Solder Lug	On-Off-On
NKK Switches CKM13ETW01-018	31.2 mm	10000 Cycles	30000 Steps	16 mm	2	250 V	Panel Mount	Epoxy Sealed Terminals	3 A	45 °	-25 °C	70 °C	Silver	SPDT	Tubular Key	Non-Shorting (BBM)	Silver (Ag)	Solder Lug	On-Off-On
NKK Switches CKM13ETW01	31.2 mm	10000 Cycles	30000 Steps	16 mm	2	250 V	Panel Mount	Epoxy Sealed Terminals	3 A	45 °	-25 °C	70 °C	Silver	SPDT	Tubular Key	Non-Shorting (BBM)	Silver (Ag)	Solder Lug	On-Off-On
