2314917 Series

Catalog

16P,2MM,B-B,REC,DRHZ,2.1,0.38AU,

Part	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Fastening Type	Contact Material	Insulation Height	Insulation Height	Insulation Color	Number of Positions Loaded	Voltage Rating	Number of Positions	Contact Type	Mounting Type	Connector Type	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape

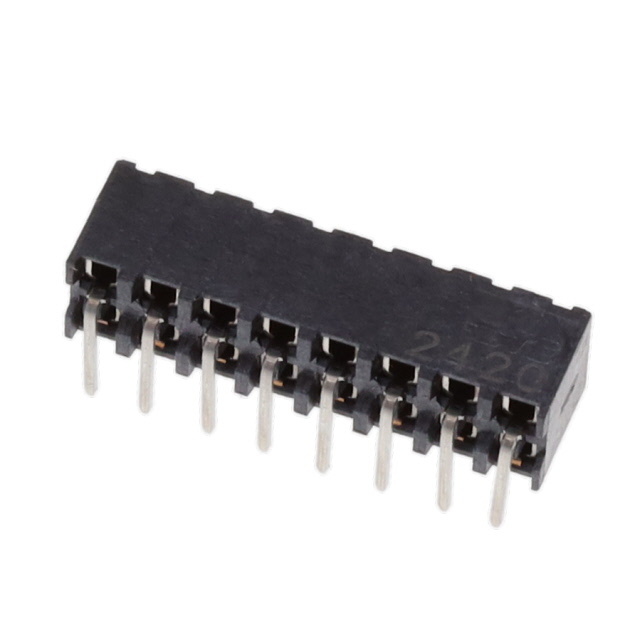

TE Connectivity Raychem Cable Protection 1-2314917-6	Gold	0.083 in	2.11 mm	2 A	Tin	15 µin	0.38 µm	Solder	Push-Pull	Phosphor Bronze	0.161 in	4.1 mm	Black	All	125 VDC	16	Female Socket	Through Hole Right Angle	Receptacle	2	0.3 µm	12 µin	0.079 in	2 mm	UL94 V-0	0.079 in	2 mm	Liquid Crystal Polymer (LCP)	125 °C	-40 °C	Square
