1561/24 Series

Catalog

HOOK-UP SOLID 24AWG ORANGE 1000'

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge	Cable Type	Length	Length	Voltage	Conductor Strand	Jacket Color	Conductor Material	Qualification	Length [x]	Length [x]

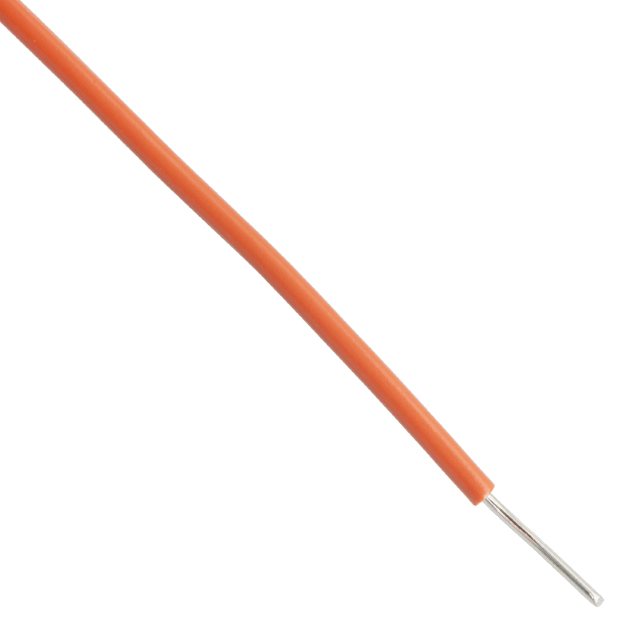

ALPHA WIRE 1561/24 OR001	0.41 mm	0.016 in	1.32 mm	0.052 in	Poly-Vinyl Chloride (PVC)	80 °C	-40 C	24 AWG	Hook-Up	304.8 m	1000 ft	1 kV	Solid	Orange	Copper Tinned	MIL-W-76B Type MW
ALPHA WIRE 1561/24 OR005	0.41 mm	0.016 in	1.32 mm	0.052 in	Poly-Vinyl Chloride (PVC)	80 °C	-40 C	24 AWG	Hook-Up			1 kV	Solid	Orange	Copper Tinned	MIL-W-76B Type MW	100 ft	30.5 m

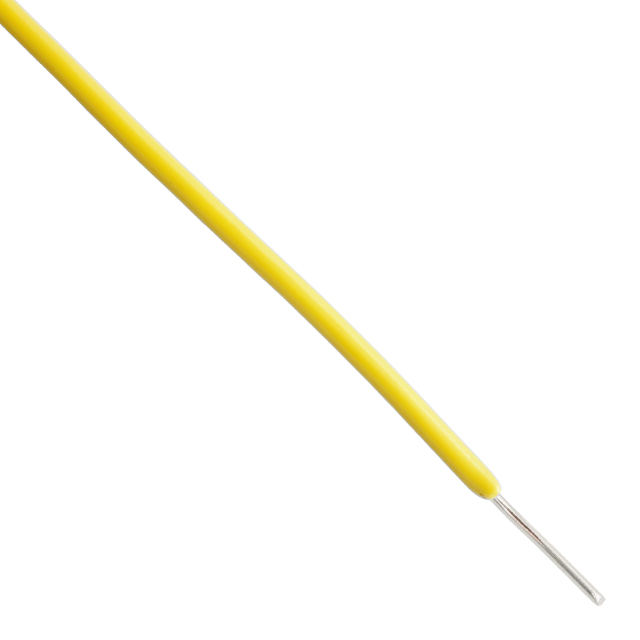

ALPHA WIRE 1561/24 YL005	0.41 mm	0.016 in	1.32 mm	0.052 in	Poly-Vinyl Chloride (PVC)	80 °C	-40 C	24 AWG	Hook-Up			1 kV	Solid	Yellow	Copper Tinned	MIL-W-76B Type MW	100 ft	30.5 m
ALPHA WIRE 1561/24 VI001	0.41 mm	0.016 in	1.32 mm	0.052 in	Poly-Vinyl Chloride (PVC)	80 °C	-40 C	24 AWG	Hook-Up	304.8 m	1000 ft	1 kV	Solid	Violet	Copper Tinned	MIL-W-76B Type MW
ALPHA WIRE 1561/24 RD001	0.41 mm	0.016 in	1.32 mm	0.052 in	Poly-Vinyl Chloride (PVC)	80 °C	-40 C	24 AWG	Hook-Up	304.8 m	1000 ft	1 kV	Solid	Red	Copper Tinned	MIL-W-76B Type MW
ALPHA WIRE 1561/24 BK005	0.41 mm	0.016 in	1.32 mm	0.052 in	Poly-Vinyl Chloride (PVC)	80 °C	-40 C	24 AWG	Hook-Up			1 kV	Solid	Black	Copper Tinned	MIL-W-76B Type MW	100 ft	30.5 m
ALPHA WIRE 1561/24 BL005	0.41 mm	0.016 in	1.32 mm	0.052 in	Poly-Vinyl Chloride (PVC)	80 °C	-40 C	24 AWG	Hook-Up			1 kV	Solid	Blue	Copper Tinned	MIL-W-76B Type MW	100 ft	30.5 m
ALPHA WIRE 1561/24 SL005	0.41 mm	0.016 in	1.32 mm	0.052 in	Poly-Vinyl Chloride (PVC)	80 °C	-40 C	24 AWG	Hook-Up			1 kV	Solid	Slate	Copper Tinned	MIL-W-76B Type MW	100 ft	30.5 m
