AA-200-24 Series

Catalog

THERMOELECT ASSY AIR-AIR 180W

Part	Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Fan Location	Current	Dimensions - Overall [z]	Dimensions - Overall [y]	Dimensions - Overall [x]	Heat Transfer Type	Power - Cooling	Weight	Weight	Power - Input

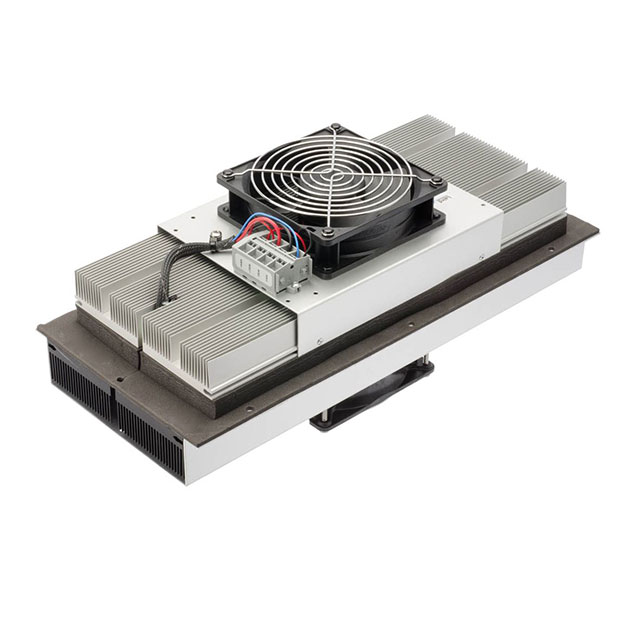

Laird Thermal Systems, Inc. AA-200-24-24-00-10	24 V	56 °C	-10 °C	Cold Side Warm Side	9.9 A	178 mm	153 mm	400 mm	Air to Air	180 W

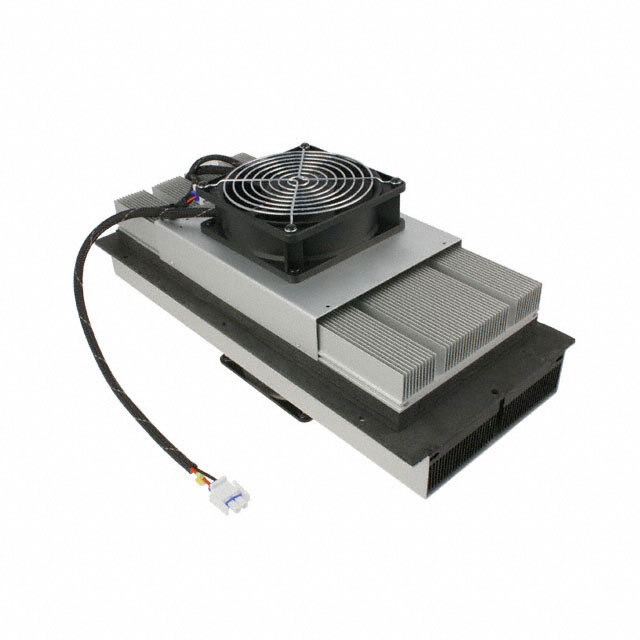

Laird Thermal Systems, Inc. AA-200-24-44-LK-XX	24 V	55 °C	-40 C	Cold Side Warm Side	11.3 A	178 mm	180 mm	400 mm	Air to Air	193 W	6.8 kg	15 lbs

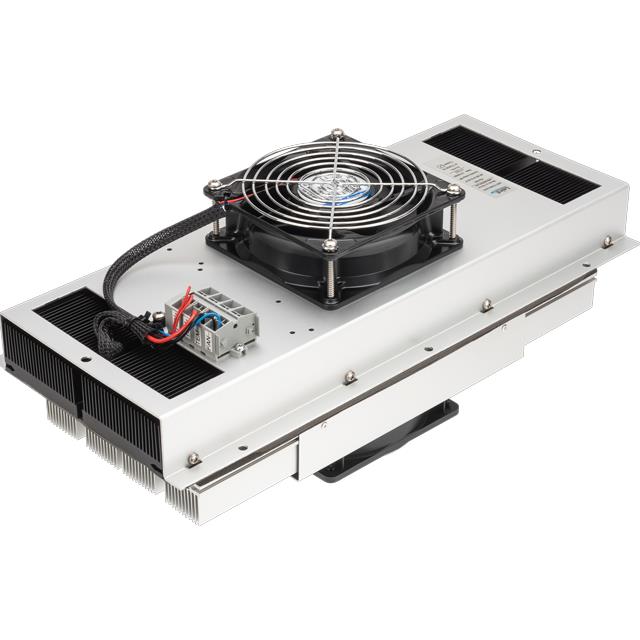

Laird Thermal Systems, Inc. AA-200-24-22-00-00	24 V	48 °C	-10 °C	Cold Side Warm Side	11.3 A	178 mm	153 mm	400 mm	Air to Air	193 W	7.3 kg	16 lbs	271 W

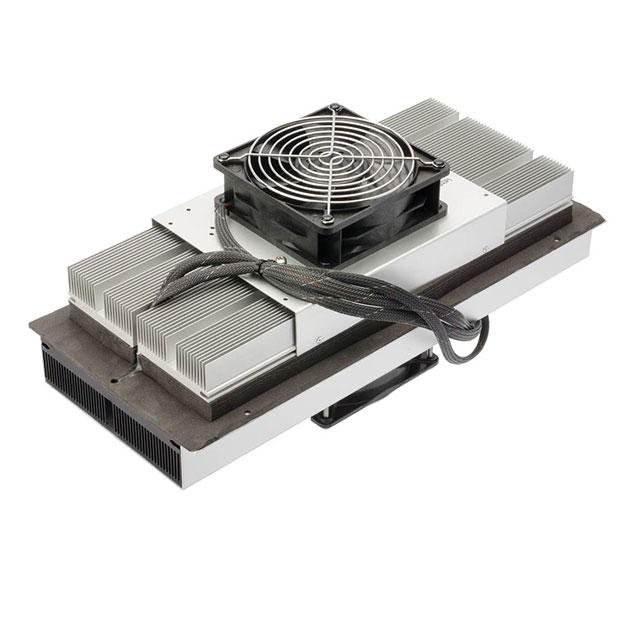

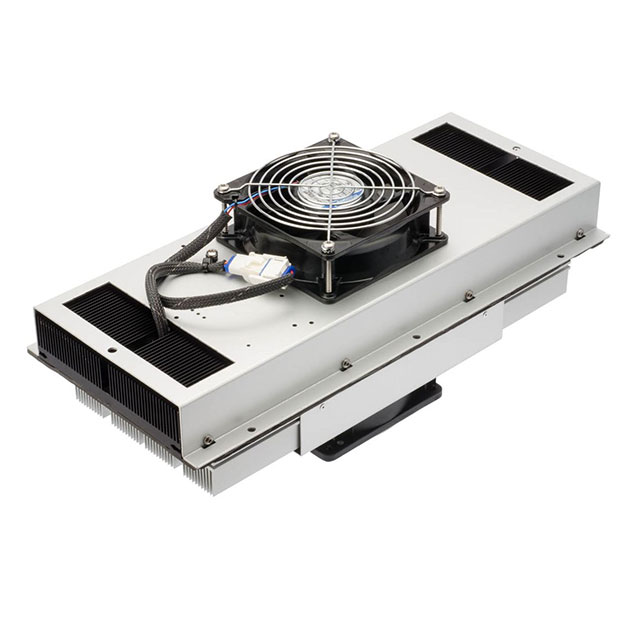

Laird Thermal Systems, Inc. AA-200-24-44-00-XX	24 V	55 °C	-40 C	Cold Side Warm Side	11.3 A	178 mm	180 mm	400 mm	Air to Air	193 W	6.8 kg	15 lbs
