634-015 Series
Manufacturer: EDAC Inc.
Catalog
RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES
...
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Type | Termination | Material Flammability Rating | Features | Shell Material, Finish | Contact Material | Dielectric Material | Contact Finish Thickness | Flange Feature | Number of Positions | Number of Rows | Connector Style | Backset Spacing | Backset Spacing | Connector Type | Color | Contact Finish | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

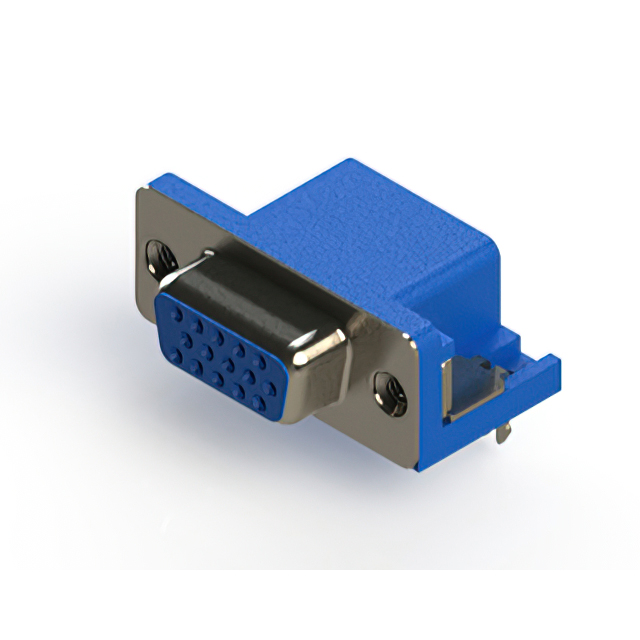

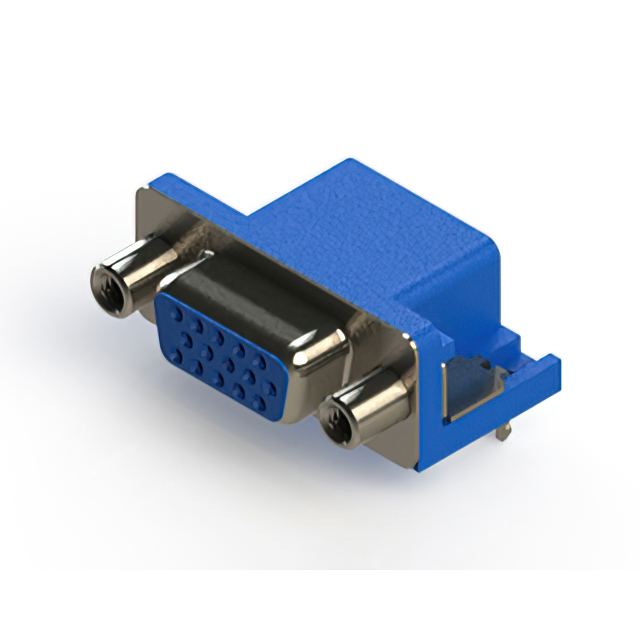

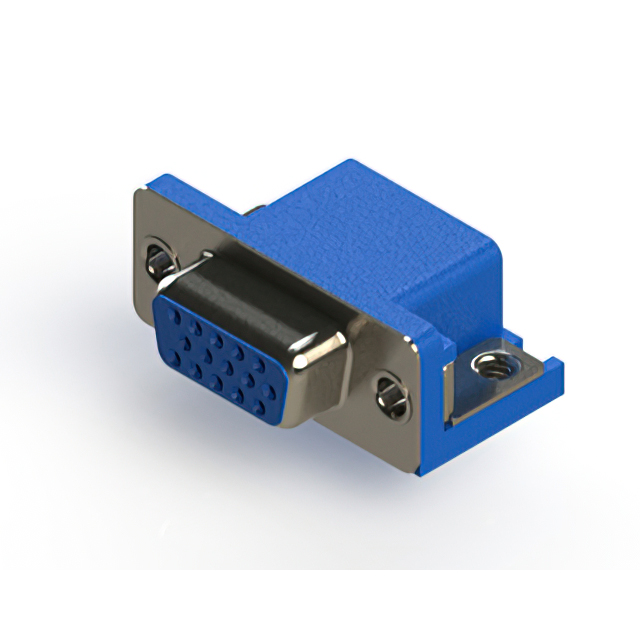

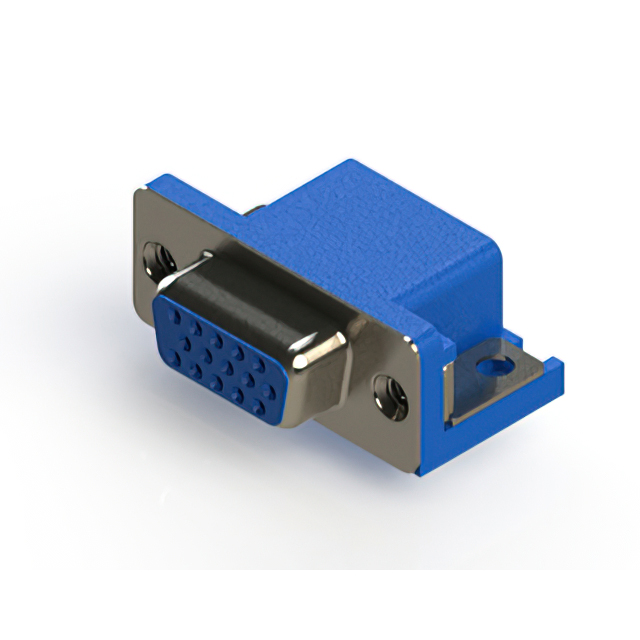

 EDAC Inc. | -55 °C | 125 °C | Board Edge Right Angle Through Hole | Signal | Solder | UL94 V-0 | Mounting Brackets Shielded | Nickel Plated Steel | Copper Alloy | Polyester Thermoplastic | Flash | Housing/Shell (4-40) | 15 | 3 | D-Sub High Density | 8.89 mm | 0.35 in | Receptacle Female Sockets | Blue | Gold | DE E | 1 | High Density | 3 A | ||
 EDAC Inc. | -55 °C | 125 °C | Board Edge Right Angle Through Hole | Signal | Solder | UL94 V-0 | Board Lock Mounting Brackets Shielded | Nickel Plated Steel | Copper Alloy | Polyester Thermoplastic | Flash | Housing/Shell (4-40) | 15 | 3 | D-Sub High Density | 8.89 mm | 0.35 in | Receptacle Female Sockets | Gold | DE E | 1 | High Density | 3 A | |||
 EDAC Inc. | -55 °C | 85 °C | Board Edge Right Angle Through Hole | Signal | Solder | UL94 V-0 | Board Lock Mounting Brackets Shielded | Nickel Plated Steel | Copper Alloy | Polyester Thermoplastic | 4-40 | 15 | 3 | D-Sub High Density | 8.89 mm | 0.35 in | Receptacle Female Sockets | Gold | DE E | 1 | High Density | 3 A | 15 µin | 0.38 µm | ||
 EDAC Inc. | -55 °C | 125 °C | Board Edge Right Angle Through Hole | Signal | Solder | UL94 V-0 | Board Lock Mounting Brackets Shielded | Nickel Plated Steel | Copper Alloy | Polyester Thermoplastic | Flash | Housing/Shell (M3) | 15 | 3 | D-Sub High Density | 8.89 mm | 0.35 in | Receptacle Female Sockets | Gold | DE E | 1 | High Density | 3 A | |||
 EDAC Inc. | -55 °C | 85 °C | Board Edge Right Angle Through Hole | Signal | Solder | UL94 V-0 | Board Lock Mounting Brackets Shielded | Nickel Plated Steel | Copper Alloy | Polyester Thermoplastic | Flash | 4-40 | 15 | 3 | D-Sub High Density | 8.89 mm | 0.35 in | Receptacle Female Sockets | Blue | Gold | DE E | 1 | High Density | 3 A | ||
 EDAC Inc. | -55 °C | 125 °C | Board Edge Right Angle Through Hole | Signal | Solder | UL94 V-0 | Board Lock Mounting Brackets Shielded | Nickel Plated Steel | Copper Alloy | Polyester Thermoplastic | 4-40 | 15 | 3 | D-Sub High Density | 8.89 mm | 0.35 in | Receptacle Female Sockets | Gold | DE E | 1 | High Density | 3 A | 15 µin | 0.38 µm | ||
 EDAC Inc. | -55 °C | 85 °C | Board Edge Right Angle Through Hole | Signal | Solder | UL94 V-0 | Board Lock Mounting Brackets Shielded | Nickel Plated Steel | Copper Alloy | Polyester Thermoplastic | Female Screwlock (4-40) Mating Side | 15 | 3 | D-Sub High Density | 8.89 mm | 0.35 in | Receptacle Female Sockets | Gold | DE E | 1 | High Density | 3 A | 15 µin | 0.38 µm | ||
 EDAC Inc. | -55 °C | 85 °C | Board Edge Right Angle Through Hole | Signal | Solder | UL94 V-0 | Mounting Brackets Shielded | Nickel Plated Steel | Copper Alloy | Polyester Thermoplastic | Flash | Housing/Shell (Unthreaded) | 15 | 3 | D-Sub High Density | 8.89 mm | 0.35 in | Receptacle Female Sockets | Blue | Gold | DE E | 1 | High Density | 3 A | ||
 EDAC Inc. | -55 °C | 85 °C | Board Edge Right Angle Through Hole | Signal | Solder | UL94 V-0 | Board Lock Mounting Brackets Shielded | Nickel Plated Steel | Copper Alloy | Polyester Thermoplastic | Flash | Housing/Shell (4-40) | 15 | 3 | D-Sub High Density | 8.89 mm | 0.35 in | Receptacle Female Sockets | Gold | DE E | 1 | High Density | 3 A | |||
 EDAC Inc. | -55 °C | 85 °C | Board Edge Right Angle Through Hole | Signal | Solder | UL94 V-0 | Board Lock Mounting Brackets Shielded | Nickel Plated Steel | Copper Alloy | Polyester Thermoplastic | Flash | Housing/Shell (M3) | 15 | 3 | D-Sub High Density | 8.89 mm | 0.35 in | Receptacle Female Sockets | Blue | Gold | DE E | 1 | High Density | 3 A |
