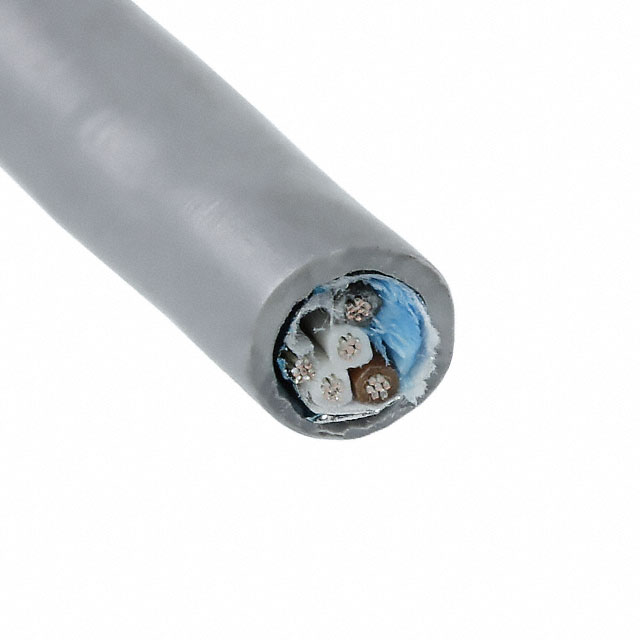

5492C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PAIR 4COND 24AWG BLK 1000'
| Part | Shield Coverage | Shield Material | Length | Length | Shield Type | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Insulation | Jacket (Insulation) Material | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Wire Gauge | Features | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Jacket Color | Usage | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 304.8 m | 1000 ft | Foil | -35 °C | 105 ░C | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 300 VDC | 0.813 mm | 0.032 in | ISO 10993 UL Style 2464 | 24 AWG | Biological Compatibility Drain Wire Rip Cord | Copper Tinned | 7 | 32 AWG | 4 | Black | Communication Control | Multi-Pair |
 ALPHA WIRE | 100 % | Aluminum | 304.8 m | 1000 ft | Foil | -35 °C | 105 ░C | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 300 VDC | 0.813 mm | 0.032 in | ISO 10993 UL Style 2464 | 24 AWG | Biological Compatibility Drain Wire Rip Cord | Copper Tinned | 7 | 32 AWG | 4 | Slate | Communication Control | Multi-Pair |
ALPHA WIRE | 100 % | Aluminum | 152.4 m | 500 ft | Foil | -35 °C | 105 ░C | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 300 VDC | 0.813 mm | 0.032 in | ISO 10993 UL Style 2464 | 24 AWG | Biological Compatibility Drain Wire Rip Cord | Copper Tinned | 7 | 32 AWG | 4 | Slate | Communication Control | Multi-Pair |
