2823235 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

32P,2MM,PL HDR,DRVT,SMD,SN,TR W/

Part	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Features	Number of Positions Loaded	Fastening Type	Contact Material	Insulation Color	Number of Rows	Contact Length - Mating	Contact Length - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Insulation Material	Material Flammability Rating	Style	Connector Type	Contact Finish - Post	Contact Type	Insulation Height [custom]	Insulation Height [custom]	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions
TE Connectivity Raychem Cable Protection 3-2823235-2	2 A	-40 °C	105 ░C	125 VAC	118.1 µin	3 µm	Surface Mount	Shrouded - 2 Wall	0.3 µm	12 µin	Solder	Pick and Place	All	Latch Holder	Phosphor Bronze	Black	2	4 mm	0.157 in	0.079 in	2 mm	Square	Thermoplastic	UL94 V-0	Board to Board Cable	Header	Tin	Male Pin	5.51 mm	0.217 in	0.079 in	2 mm
TE Connectivity Raychem Cable Protection 2823235-6	2 A	-40 °C	105 ░C	125 VAC	118.1 µin	3 µm	Surface Mount	Shrouded - 2 Wall	0.3 µm	12 µin	Solder	Pick and Place	All	Latch Holder	Phosphor Bronze	Black	2	4 mm	0.157 in	0.079 in	2 mm	Square	Thermoplastic	UL94 V-0	Board to Board Cable	Header	Tin	Male Pin	5.51 mm	0.217 in	0.079 in	2 mm	6

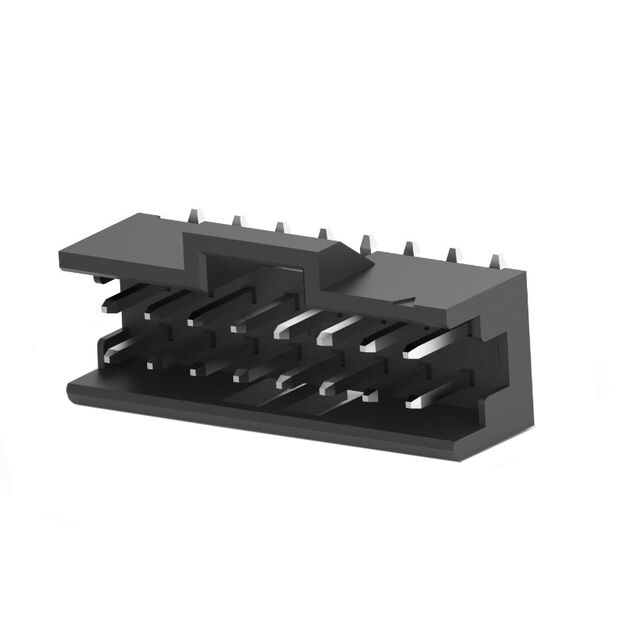

TE Connectivity Raychem Cable Protection 2-2823235-4	2 A	-40 °C	105 ░C	125 VAC	118.1 µin	3 µm	Surface Mount	Shrouded - 2 Wall	0.3 µm	12 µin	Solder	Pick and Place	All	Latch Holder	Phosphor Bronze	Black	2	4 mm	0.157 in	0.079 in	2 mm	Square	Thermoplastic	UL94 V-0	Board to Board Cable	Header	Tin	Male Pin	5.51 mm	0.217 in	0.079 in	2 mm	24

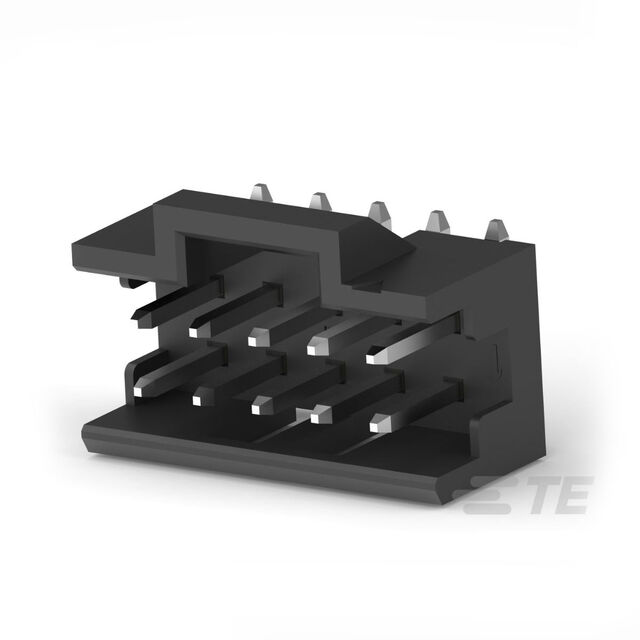

TE Connectivity Raychem Cable Protection 1-2823235-0	2 A	-40 °C	105 ░C	125 VAC	118.1 µin	3 µm	Surface Mount	Shrouded - 2 Wall	0.3 µm	12 µin	Solder	Pick and Place	All	Latch Holder	Phosphor Bronze	Black	2	4 mm	0.157 in	0.079 in	2 mm	Square	Thermoplastic	UL94 V-0	Board to Board Cable	Header	Tin	Male Pin	5.51 mm	0.217 in	0.079 in	2 mm	10
TE Connectivity Raychem Cable Protection 2823235-8	2 A	-40 °C	105 ░C	125 VAC	118.1 µin	3 µm	Surface Mount	Shrouded - 2 Wall	0.3 µm	12 µin	Solder	Pick and Place	All	Latch Holder	Phosphor Bronze	Black	2	4 mm	0.157 in	0.079 in	2 mm	Square	Thermoplastic	UL94 V-0	Board to Board Cable	Header	Tin	Male Pin	5.51 mm	0.217 in	0.079 in	2 mm	8

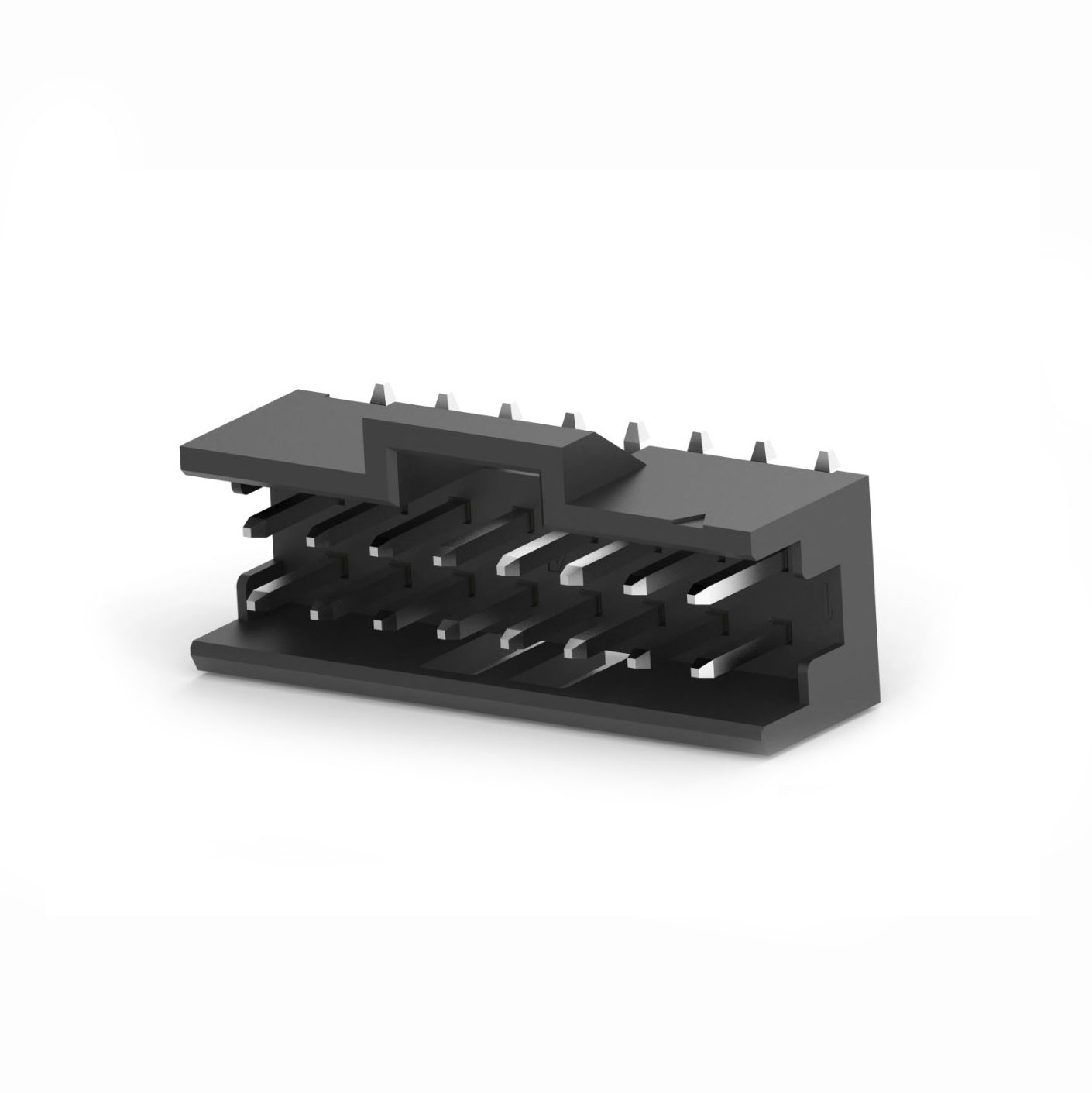

TE Connectivity Raychem Cable Protection 2-2823235-2	2 A	-40 °C	105 ░C	125 VAC	118.1 µin	3 µm	Surface Mount	Shrouded - 2 Wall	0.3 µm	12 µin	Solder	Pick and Place	All	Latch Holder	Phosphor Bronze	Black	2	4 mm	0.157 in	0.079 in	2 mm	Square	Thermoplastic	UL94 V-0	Board to Board Cable	Header	Tin	Male Pin	5.51 mm	0.217 in	0.079 in	2 mm	22 positions
TE Connectivity Raychem Cable Protection 1-2823235-2	2 A	-40 °C	105 ░C	125 VAC	118.1 µin	3 µm	Surface Mount	Shrouded - 2 Wall	0.3 µm	12 µin	Solder	Pick and Place	All	Latch Holder	Phosphor Bronze	Black	2	4 mm	0.157 in	0.079 in	2 mm	Square	Thermoplastic	UL94 V-0	Board to Board Cable	Header	Tin	Male Pin	5.51 mm	0.217 in	0.079 in	2 mm	12

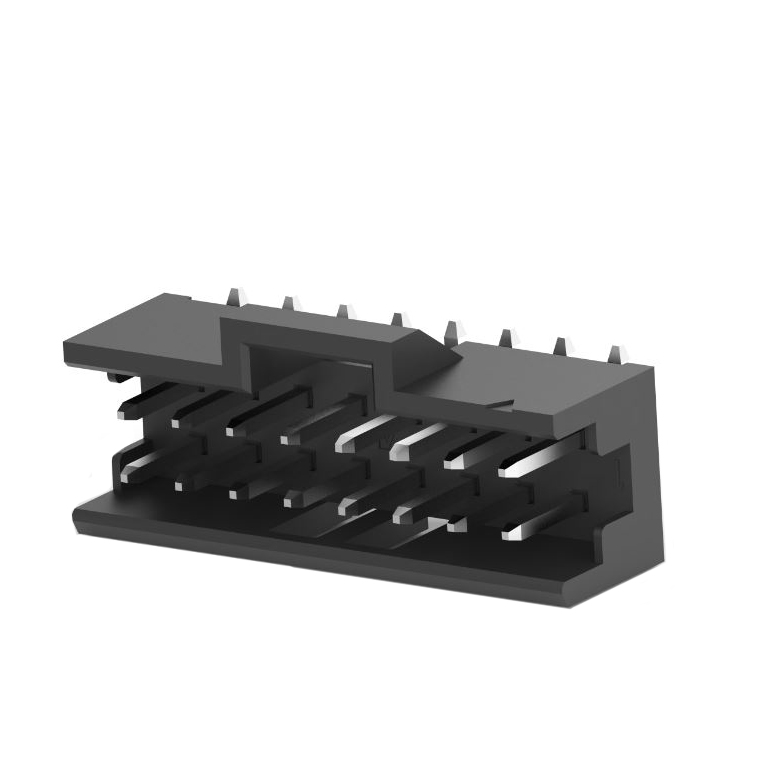

TE Connectivity Raychem Cable Protection 2-2823235-8	2 A	-40 °C	105 ░C	125 VAC	118.1 µin	3 µm	Surface Mount	Shrouded - 2 Wall	0.3 µm	12 µin	Solder	Pick and Place	All	Latch Holder	Phosphor Bronze	Black	2	4 mm	0.157 in	0.079 in	2 mm	Square	Thermoplastic	UL94 V-0	Board to Board Cable	Header	Tin	Male Pin	5.51 mm	0.217 in	0.079 in	2 mm	28

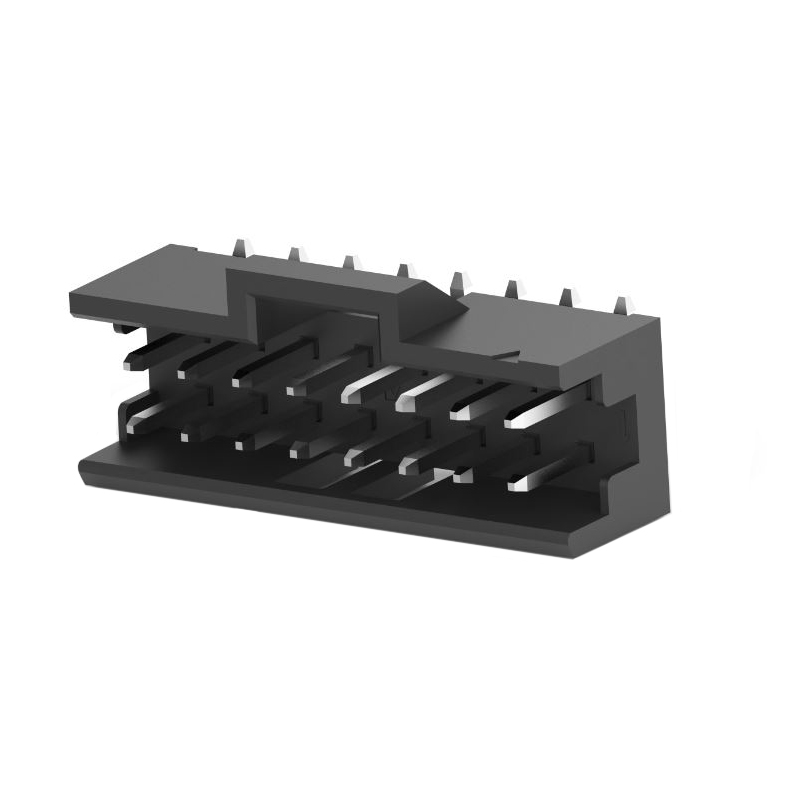

TE Connectivity Raychem Cable Protection 2-2823235-0	2 A	-40 °C	105 ░C	125 VAC	118.1 µin	3 µm	Surface Mount	Shrouded - 2 Wall	0.3 µm	12 µin	Solder	Pick and Place	All	Latch Holder	Phosphor Bronze	Black	2	4 mm	0.157 in	0.079 in	2 mm	Square	Thermoplastic	UL94 V-0	Board to Board Cable	Header	Tin	Male Pin	5.51 mm	0.217 in	0.079 in	2 mm	20
