84533 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

FFC / FPC BOARD CONNECTOR, 1.25 MM, 20 CONTACTS, RECEPTACLE, THROUGH HOLE, TOP

Part	Cable End Type	Operating Temperature [Max]	Operating Temperature [Min]	FFC, FCB Thickness	Number of Positions	Voltage Rating	Housing Material	Mounting Type	Termination	Contact Material	Contact Finish	Flat Flex Type	Connector/Contact Type	Height Above Board	Height Above Board	Pitch	Pitch	Number of Positions [custom]

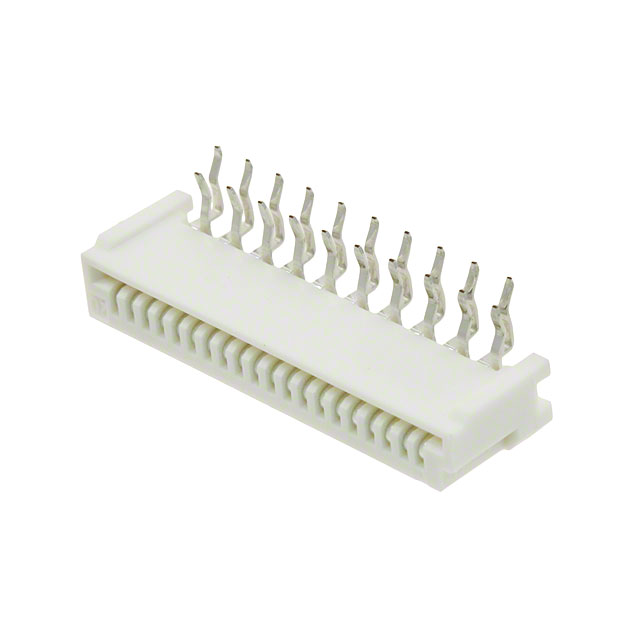

TE Connectivity AMP Connectors 2-84533-0	Tapered	85 °C	-40 C	0.3 mm	20	50 V	Polybutylene Terephthalate (PBT) Glass Filled	Right Angle Through Hole	Kinked Pin	Phosphor Bronze	Tin	FFC	Contacts Top	0.189 in	4.8 mm	0.049 in	1.25 mm
TE Connectivity AMP Connectors 2-84533-1	Tapered	85 °C	-40 C	0.3 mm	21	50 V	Polybutylene Terephthalate (PBT) Glass Filled	Right Angle Through Hole	Kinked Pin	Phosphor Bronze	Tin	FFC	Contacts Top	0.189 in	4.8 mm	0.049 in	1.25 mm
TE Connectivity AMP Connectors 3-84533-1	Tapered	85 °C	-40 C	0.3 mm		50 V	Polybutylene Terephthalate (PBT) Glass Filled	Right Angle Through Hole	Kinked Pin	Phosphor Bronze	Tin	FFC	Contacts Top	0.189 in	4.8 mm	0.049 in	1.25 mm	31
TE Connectivity AMP Connectors 4-84533-0	Tapered	85 °C	-40 C	0.3 mm	40	50 V	Polybutylene Terephthalate (PBT) Glass Filled	Right Angle Through Hole	Kinked Pin	Phosphor Bronze	Tin	FFC	Contacts Top	0.189 in	4.8 mm	0.049 in	1.25 mm
TE Connectivity AMP Connectors 3-84533-6	Tapered	85 °C	-40 C	0.3 mm	36	50 V	Polybutylene Terephthalate (PBT) Glass Filled	Right Angle Through Hole	Kinked Pin	Phosphor Bronze	Tin	FFC	Contacts Top	0.189 in	4.8 mm	0.049 in	1.25 mm
TE Connectivity AMP Connectors 3-84533-4	Tapered	85 °C	-40 C	0.3 mm		50 V	Polybutylene Terephthalate (PBT) Glass Filled	Right Angle Through Hole	Kinked Pin	Phosphor Bronze	Tin	FFC	Contacts Top	0.189 in	4.8 mm	0.049 in	1.25 mm	34
TE Connectivity AMP Connectors 2-84533-3	Tapered	85 °C	-40 C	0.3 mm	23	50 V	Polybutylene Terephthalate (PBT) Glass Filled	Right Angle Through Hole	Kinked Pin	Phosphor Bronze	Tin	FFC	Contacts Top	0.189 in	4.8 mm	0.049 in	1.25 mm
TE Connectivity AMP Connectors 3-84533-2	Tapered	85 °C	-40 C	0.3 mm		50 V	Polybutylene Terephthalate (PBT) Glass Filled	Right Angle Through Hole	Kinked Pin	Phosphor Bronze	Tin	FFC	Contacts Top	0.189 in	4.8 mm	0.049 in	1.25 mm
TE Connectivity AMP Connectors 84533-7	Tapered	85 °C	-40 C	0.3 mm	7	50 V	Polybutylene Terephthalate (PBT) Glass Filled	Right Angle Through Hole	Kinked Pin	Phosphor Bronze	Tin	FFC	Contacts Top	0.189 in	4.8 mm	0.049 in	1.25 mm
TE Connectivity AMP Connectors 84533-4	Tapered	85 °C	-40 C	0.3 mm	4	50 V	Polybutylene Terephthalate (PBT) Glass Filled	Right Angle Through Hole	Kinked Pin	Phosphor Bronze	Tin	FFC	Contacts Top	0.189 in	4.8 mm	0.049 in	1.25 mm
