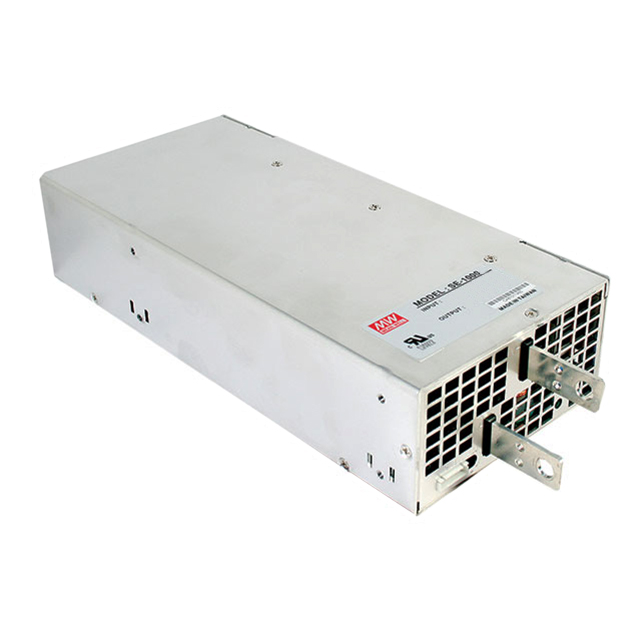

SE-1000 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 12V 1000W
| Part | Minimum Load Required | Efficiency | Voltage - Output 1 | Features | Current - Output 1 | Mounting Type | Applications | Voltage - Isolation | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Power (Watts) | Voltage - Input [Min] | Voltage - Input [Max] | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 85 % | 12 V | Adjustable Output Remote On/Off Remote Sense | 83.3 A | Chassis Mount | ITE (Commercial) | 3000 V | 5 in | 63.5 mm | 2.5 in | 5 in | 278 mm | 10.94 in | 1 kW | 90 VAC 180 VAC 254 VDC | 132 VAC 264 VAC 370 VDC | 1 | 60 °C | -20 °C | Enclosed | |
MEAN WELL USA Inc. | 84 % | 9 V | Adjustable Output Remote On/Off Remote Sense | 100 A | Chassis Mount | ITE (Commercial) | 3000 V | 5 in | 63.5 mm | 2.5 in | 5 in | 278 mm | 10.94 in | 900 W | 90 VAC 180 VAC 254 VDC | 132 VAC 264 VAC 370 VDC | 1 | 60 °C | -20 °C | Enclosed | |
MEAN WELL USA Inc. | 89 % | 48 V | Adjustable Output Remote On/Off Remote Sense | 20.8 A | Chassis Mount | ITE (Commercial) | 3000 V | 5 in | 63.5 mm | 2.5 in | 5 in | 278 mm | 10.94 in | 998 W | 90 VAC 180 VAC 254 VDC | 132 VAC 264 VAC 370 VDC | 1 | 60 °C | -20 °C | Enclosed |
