AON793 Series

Catalog

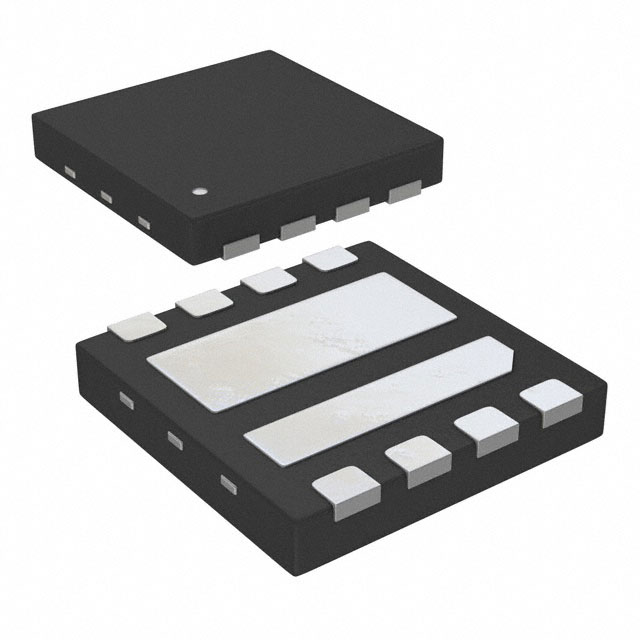

MOSFET 2N-CH 30V 13A 8DFN

Part	Input Capacitance (Ciss) (Max) @ Vds	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Configuration	Gate Charge (Qg) (Max) @ Vgs [Max]	Gate Charge (Qg) (Max) @ Vgs [Min]	Power - Max	Current - Continuous Drain (Id) @ 25°C	Vgs(th) (Max) @ Id	Rds On (Max) @ Id, Vgs	Technology	Mounting Type	Drain to Source Voltage (Vdss)	Supplier Device Package	Gate Charge (Qg) (Max) @ Vgs	FET Feature	Power - Max [Max]
Alpha & Omega Semiconductor Inc. AON7934_101	485 pF 807 pF	8-WDFN Exposed Pad	150 °C	-55 °C	2 N-Channel (Dual)	17.5 nC	11 nC	2.5 W 23 W 25 W	13 A 15 A 16 A 18 A	2.2 V	7.7 mOhm 10.2 mOhm	MOSFET (Metal Oxide)	Surface Mount	30 V	8-DFN-EP (3x3)
Alpha & Omega Semiconductor Inc. AON7932	460 pF	8-WDFN Exposed Pad	150 °C	-55 °C	2 N-Channel (Dual)					2.4 V	20 mOhm	MOSFET (Metal Oxide)	Surface Mount	30 V	8-DFN-EP (3x3)	6.5 nC	Logic Level Gate	1.4 W
Alpha & Omega Semiconductor Inc. AON7934_102	485 pF 807 pF	8-WDFN Exposed Pad	150 °C	-55 °C	2 N-Channel (Dual) Asymmetrical	17.5 nC	11 nC	2.5 W 23 W 25 W	13 A 15 A 16 A 18 A	2.2 V	7.7 mOhm 10.2 mOhm	MOSFET (Metal Oxide)	Surface Mount	30 V	8-DFN-EP (3x3)
