GPB527D Series
Manufacturer: CW Industries
Beta
⌘K
SWITCH PUSHBUTTON SPST 10A 125V
| Part | Ingress Protection | Panel Cutout Dimensions [diameter] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Illumination Type, Color | Color - Actuator/Cap | Voltage Rating - AC | Illumination Voltage (Nominal) | Actuator Type | Actuator Marking | Type | Circuit | Current Rating (Amps) | Switch Function | Voltage Rating - DC | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

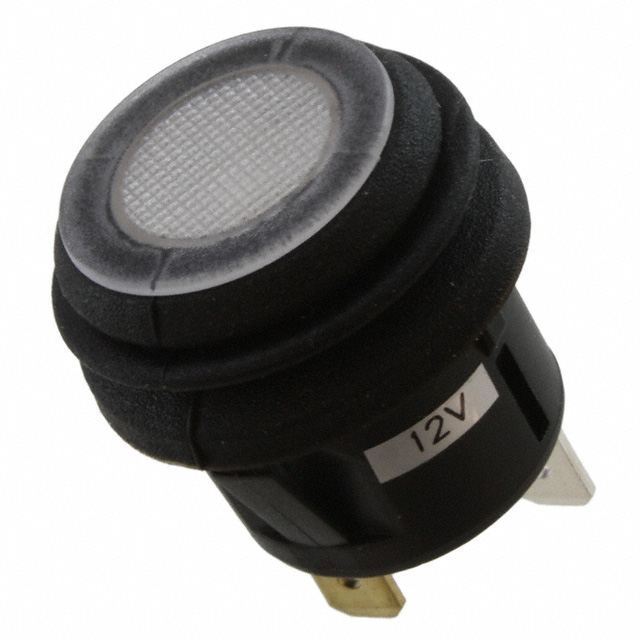

 CW Industries | IP65 - Dust Tight Water Resistant | 20.2 mm | Panel Mount Snap-In | 85 °C | -25 °C | LED White | White | 125 V | 12 VDC | Button Round | No Marking | Illuminated Standard | SPST | 10 A | Off-On | 28 V | Quick Connect |

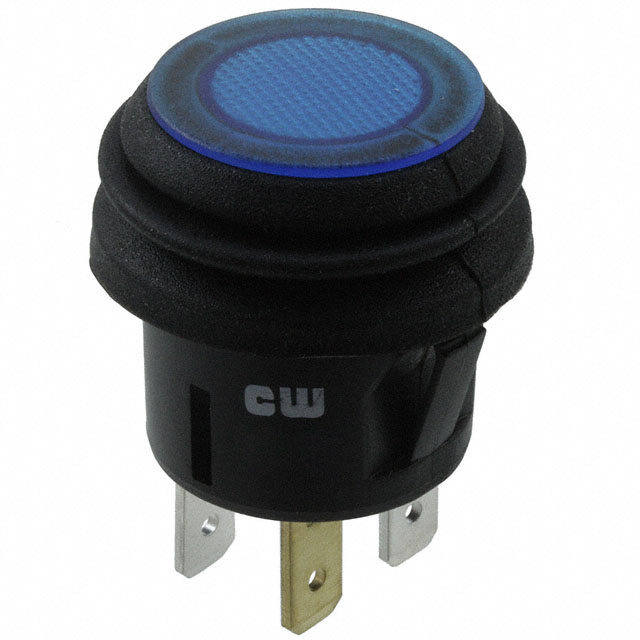

 CW Industries | IP65 - Dust Tight Water Resistant | 20.2 mm | Panel Mount Snap-In | 85 °C | -25 °C | Blue LED | Blue | 125 V | 12 VDC | Button Round | No Marking | Illuminated Standard | SPST | 10 A | Off-On | 28 V | Quick Connect |

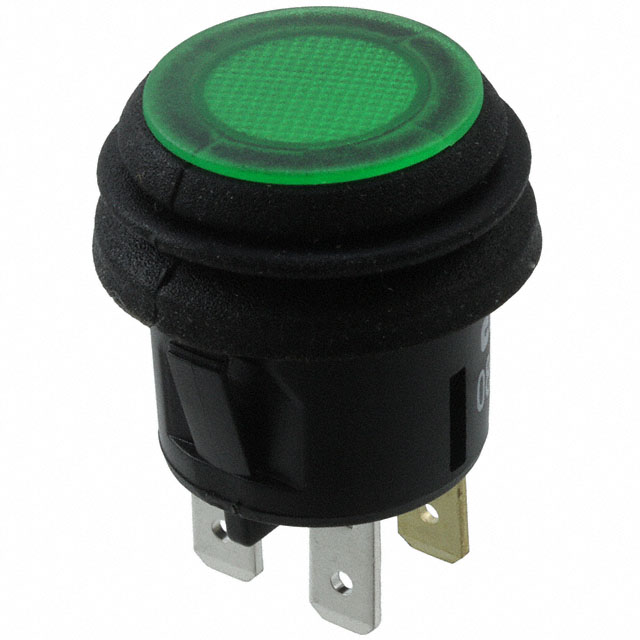

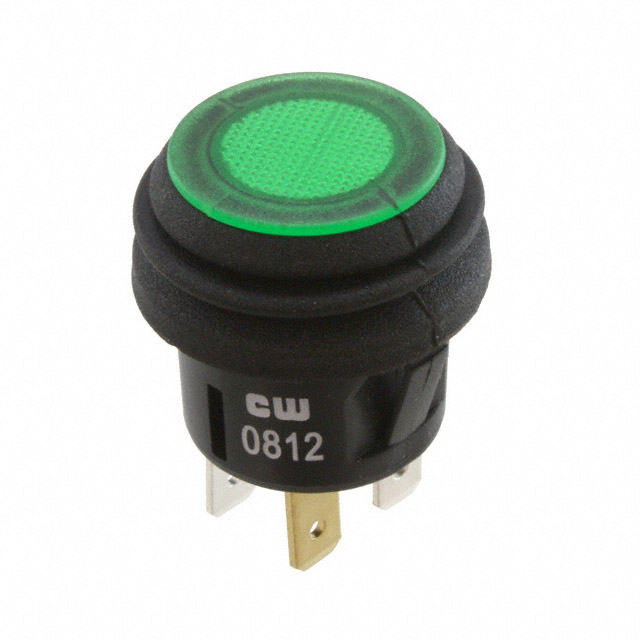

 CW Industries | IP65 - Dust Tight Water Resistant | 20.2 mm | Panel Mount Snap-In | 85 °C | -25 °C | Green LED | Green | 125 V | 12 VDC | Button Round | No Marking | Illuminated Standard | SPST | 10 A | Off-On | 28 V | Quick Connect |
 CW Industries | IP65 - Dust Tight Water Resistant | 20.2 mm | Panel Mount Snap-In | 85 °C | -25 °C | Red | 125 V | Button Round | No Marking | Standard | SPST | 10 A 20 A | Off-On | 14 V | Quick Connect | ||

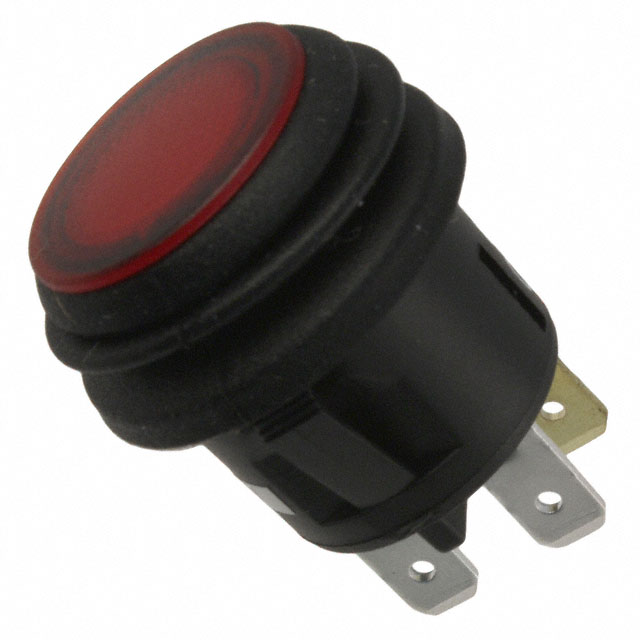

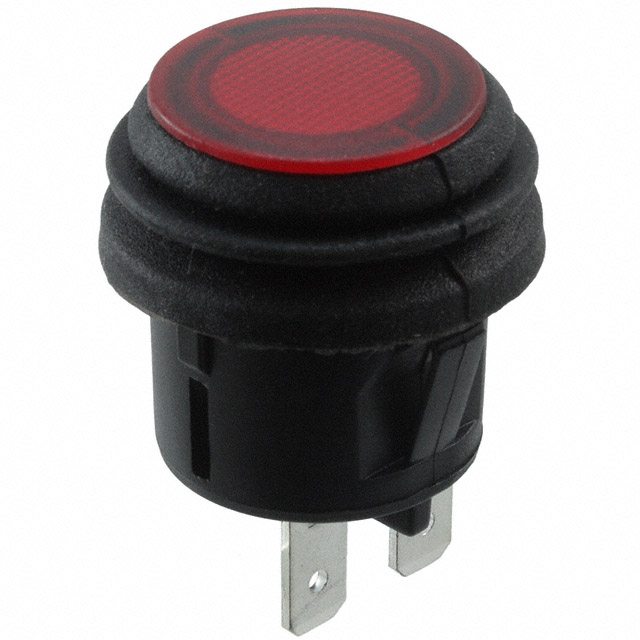

 CW Industries | IP65 - Dust Tight Water Resistant | 20.2 mm | Panel Mount Snap-In | 85 °C | -25 °C | LED Red | Red | 125 V | 12 VDC | Button Round | No Marking | Illuminated Standard | SPST | 10 A | Off-On | 28 V | Quick Connect |

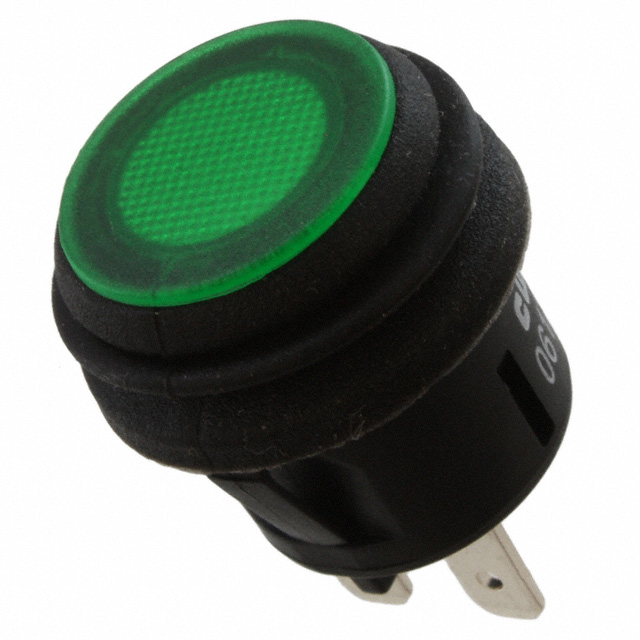

 CW Industries | IP65 - Dust Tight Water Resistant | 20.2 mm | Panel Mount Snap-In | 85 °C | -25 °C | Green | 125 V | Button Round | No Marking | Standard | SPST | 10 A 20 A | On-Off | 14 V | Quick Connect | ||

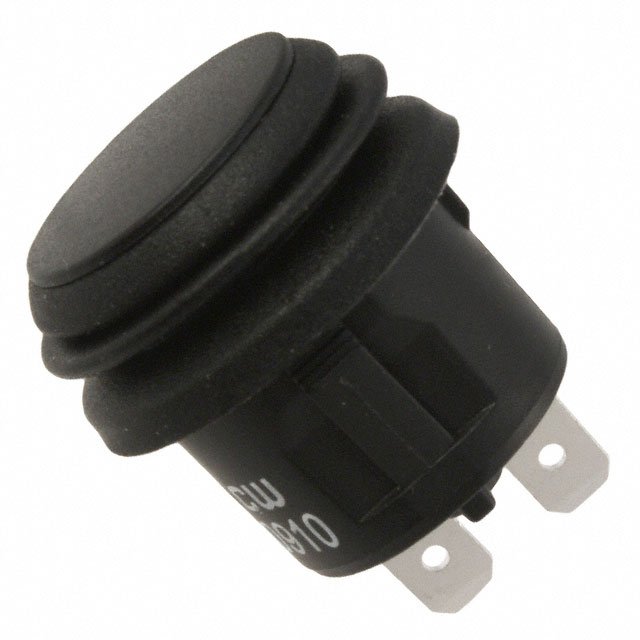

 CW Industries | IP65 - Dust Tight Water Resistant | 20.2 mm | Panel Mount Snap-In | 85 °C | -25 °C | Black | 125 V | Button Round | No Marking | Standard | SPST | 10 A 20 A | Off-On | 14 V | Quick Connect | ||

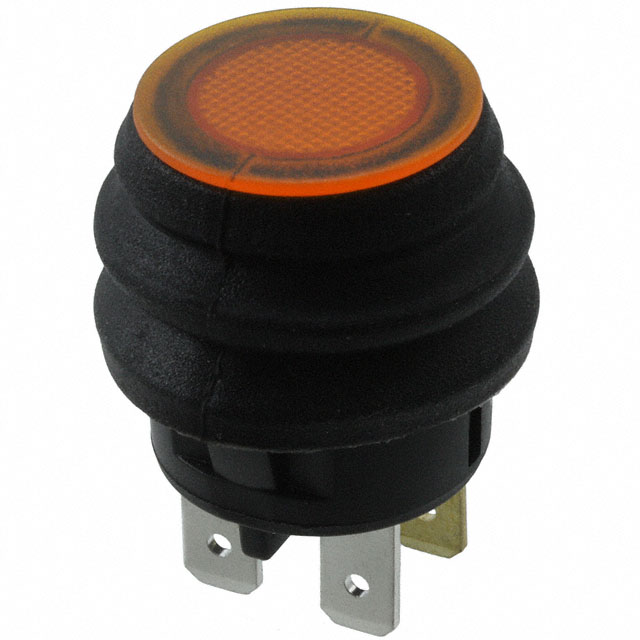

 CW Industries | IP65 - Dust Tight Water Resistant | 20.2 mm | Panel Mount Snap-In | 85 °C | -25 °C | Amber LED | Amber | 125 V | 12 VDC | Button Round | No Marking | Illuminated Standard | SPST | 10 A | Off-On | 28 V | Quick Connect |
 CW Industries | IP65 - Dust Tight Water Resistant | 20.2 mm | Panel Mount Snap-In | 85 °C | -25 °C | Green LED | Green | 125 V | 12 VDC | Button Round | No Marking | Illuminated Standard | SPST | 10 A | Off-On | 28 V | Quick Connect |

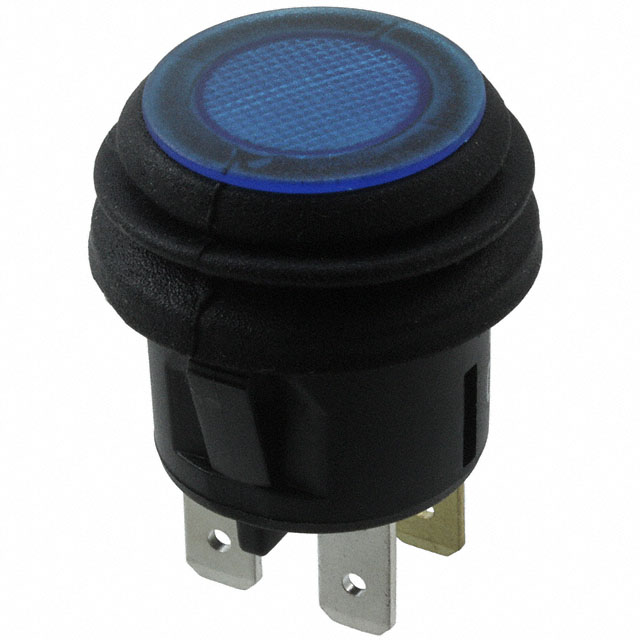

 CW Industries | IP65 - Dust Tight Water Resistant | 20.2 mm | Panel Mount Snap-In | 85 °C | -25 °C | Blue LED | Blue | 125 V | 12 VDC | Button Round | No Marking | Illuminated Standard | SPST | 10 A | Off-On | 28 V | Quick Connect |
