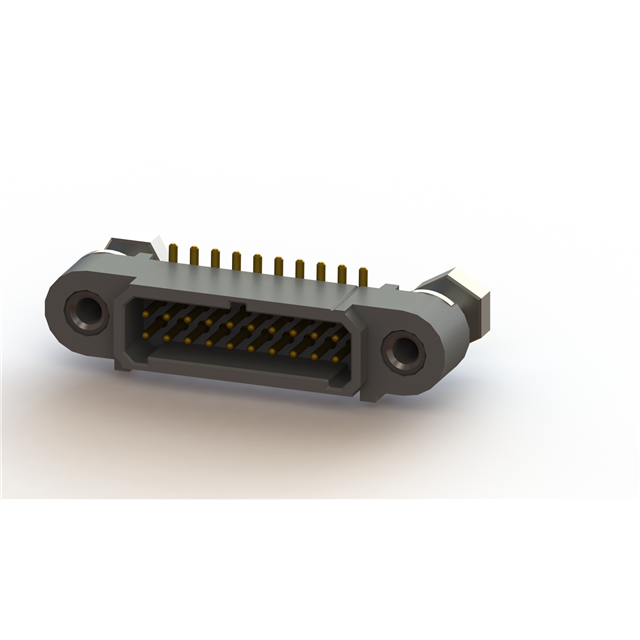

A221T20V Series
Manufacturer: Nicomatic
Beta
⌘K
MALE 20POS STRAIGHT SMT 1.27MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Insulation Material | Contact Shape | Current Rating (Amps) | Number of Positions | Row Spacing - Mating | Row Spacing - Mating | Termination | Contact Type | Voltage Rating | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Contact Material | Style | Insulation Height [z] | Insulation Height [z] | Number of Rows [custom] | Features | Contact Finish - Post | Insulation Color | Shrouding | Number of Positions Loaded | Material Flammability Rating | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nicomatic | 0.15 µm | 5.9 µin | 5.9 µin | 0.15 µm | Liquid Crystal Polymer (LCP) | Circular | 2.5 A | 20 | 0.039 in | 1 mm | Solder | Male Pin | 600 VAC | Gold | 1 mm | 0.039 in | Copper Alloy | Board to Board Cable | 4 mm | 0.157 in | 2 | Mating Flange Mounting Flange Mounting Hardware | Gold | Black | Shrouded - 4 Wall | All | UL94 V-0 | Header | -65 ░C | 200 °C | Surface Mount |
