1379659 Series

Catalog

AUTOMOTIVE HOUSING, RECEPTACLE, 8POS ROHS COMPLIANT: YES

Part	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Number of Positions	Color	Number of Rows [custom]	Contact Termination	Connector Type	Insulation Material	Row Spacing	Row Spacing	Features	Fastening Type	Mounting Type	Contact Type	Note	Row Spacing
TE Connectivity AMP Connectors 1379659-5	-40 C	100 °C	2.2 mm	0.087 in	8	Natural	2	Crimp	Receptacle	Polybutylene Terephthalate (PBT)	3 mm	0.118 "	Terminal Position Lock (TPA)	Latch Lock	Free Hanging (In-Line)	Female Socket

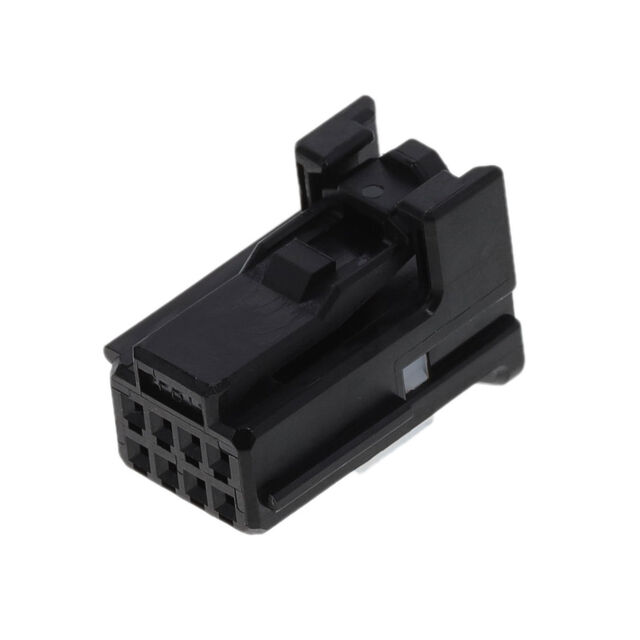

TE Connectivity AMP Connectors 1379659-1	-40 C	100 °C	2.2 mm	0.087 in	8	Black	2	Crimp	Plug	Polybutylene Terephthalate (PBT)	3 mm	0.118 "			Free Hanging (In-Line)	Female Socket	Contacts Not Included

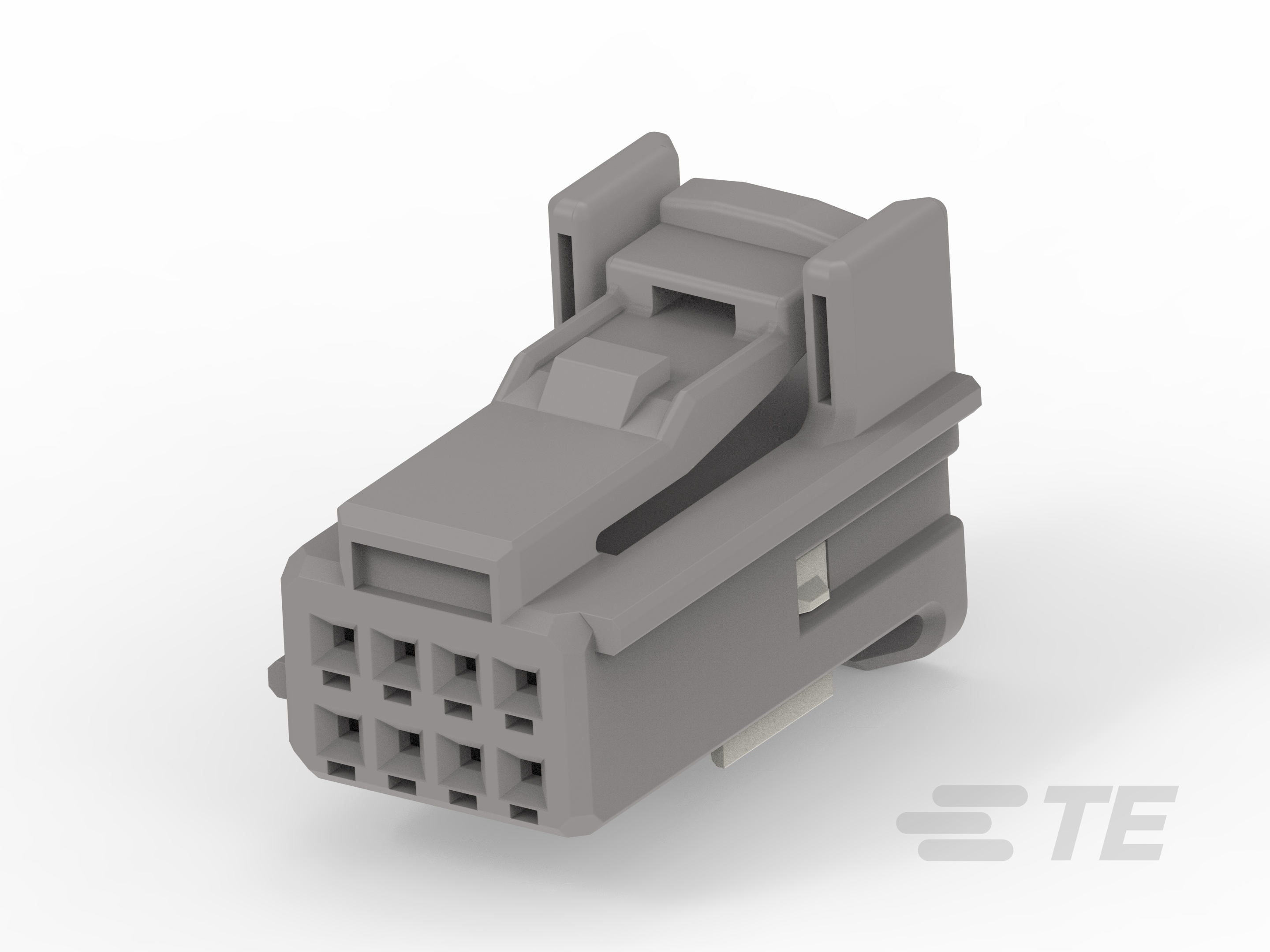

TE Connectivity AMP Connectors 1379659-2	-40 C	100 °C	2.2 mm	0.087 in	8	Gray	2	Crimp	Receptacle	Polybutylene Terephthalate (PBT)		7.6 mm	Terminal Position Lock (TPA)	Latch Lock	Surface Mount	Female Socket		0.299 in

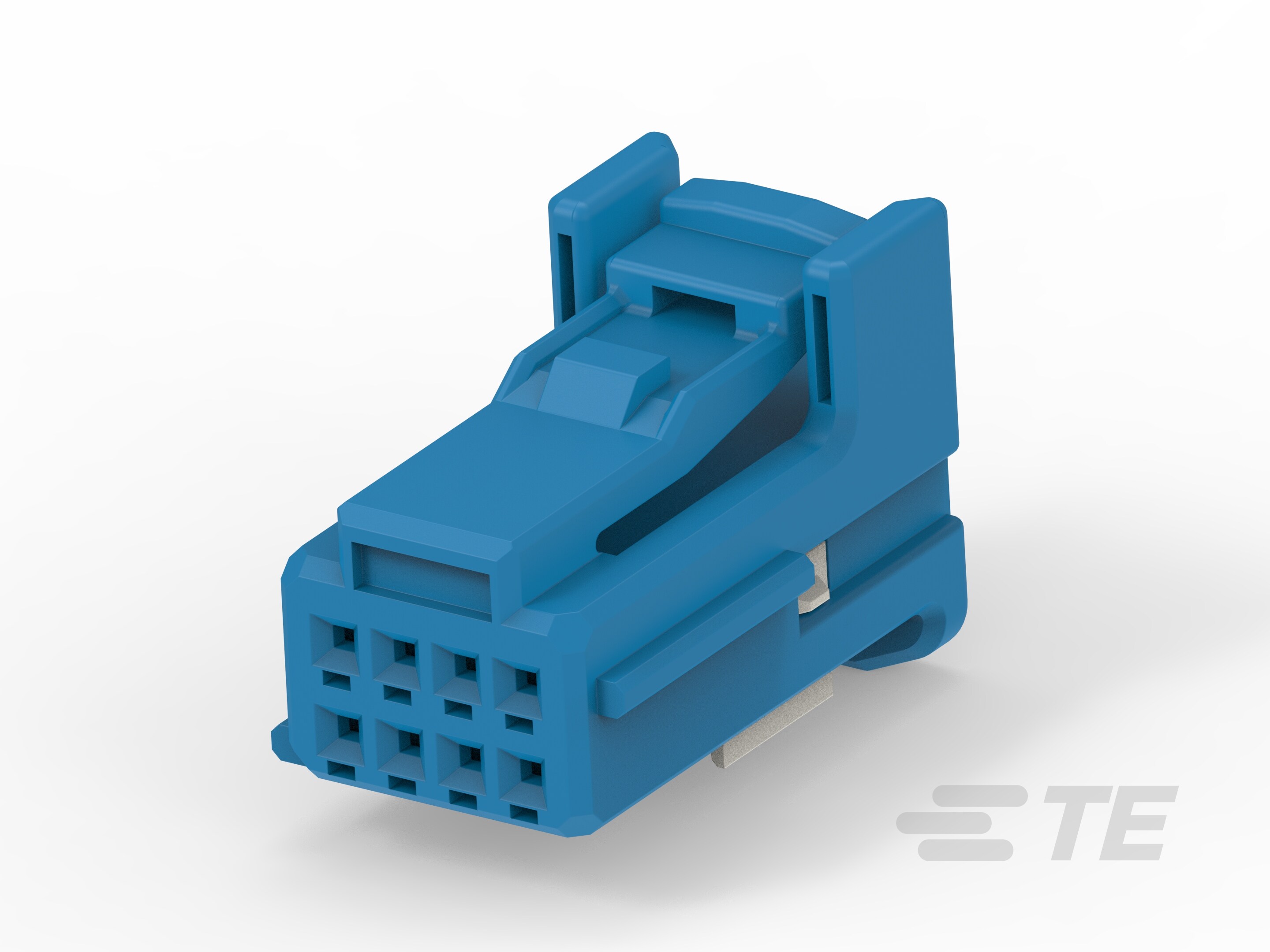

TE Connectivity AMP Connectors 1379659-3	-40 C	100 °C	2.2 mm	0.087 in	8	Blue	2	Crimp	Housing for Female Insert	Polybutylene Terephthalate (PBT)	3 mm	0.118 "	Terminal Position Lock (TPA)	Latch Lock	Free Hanging (In-Line)	Male Pin
TE Connectivity AMP Connectors 1379659-4	-40 C	100 °C	2.2 mm	0.087 in	8	Green	2	Crimp	Housing for Female Insert	Polybutylene Terephthalate (PBT)	3 mm	0.118 "	Terminal Position Lock (TPA)	Latch Lock	Free Hanging (In-Line)	Female Socket
