PRPN032 Series

Catalog

CONN HEADER SMD 6POS 2MM

Part	Contact Finish Thickness - Post	Insulation Color	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Fastening Type	Insulation Height	Insulation Height	Insulation Material	Style	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Mating	Contact Type	Contact Finish Thickness - Mating	Mounting Type	Number of Positions Loaded	Termination	Number of Rows [custom]	Contact Finish - Post	Contact Material	Contact Shape	Number of Positions	Connector Type	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Insulation Height [z]	Insulation Height [z]	Overall Contact Length	Overall Contact Length	Contact Length - Post [custom]	Contact Length - Post	Features
Sullins Connector Solutions PRPN032MAMS	Flash	Black	UL94 V-0	0.079 "	2 mm	Push-Pull	0.059 in	1.5 mm	Polyester	Board to Board Cable	2 mm	0.079 in	Gold	Male Pin	Flash	Surface Mount	All	Solder	2	Gold	Brass	Square	6	Header	4 mm	0.157 in	-40 C	105 ░C	Unshrouded

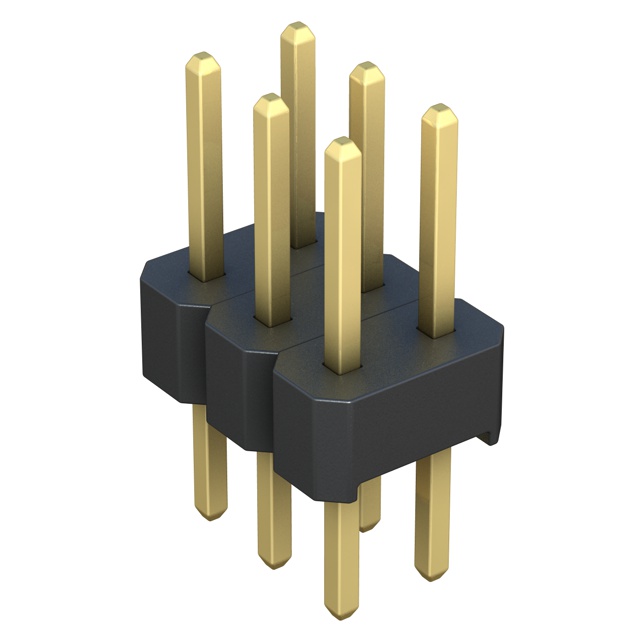

Sullins Connector Solutions PRPN032PAEN	Flash	Black	UL94 V-0	0.079 "	2 mm	Push-Pull			Polyester	Board to Board Cable	2 mm	0.079 in	Gold	Male Pin	Flash	Through Hole	All	Solder	2	Gold	Brass	Square	6	Header	4 mm	0.157 in	-40 C	105 ░C	Unshrouded	2 mm	0.079 in	8.8 mm	0.346 in	0.11 in	2.79 mm
Sullins Connector Solutions PRPN032MAMP	Flash	Black	UL94 V-0	0.079 "	2 mm	Push-Pull	0.059 in	1.5 mm	Polyester	Board to Board Cable	2 mm	0.079 in	Gold	Male Pin	Flash	Surface Mount	All	Solder	2	Gold	Brass	Square	6	Header	4 mm	0.157 in	-40 C	105 ░C	Unshrouded							Board Guide
