Schaffner FN350 Series

Catalog

LINE FILTER 250VAC 55A CHASS MNT

Part	Current	Frequency - Operating	Applications	Mounting Type	Configuration	Voltage - Rated AC	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Filter Type
TE Connectivity AMP Connectors FN350-55-33	55 A	DC ~ 400Hz	Regenerative Motor Drive	Chassis Mount	Single Stage	250 V	Terminal Block	100 °C	-25 °C	CSA ENEC UR	Single Phase
TE Connectivity AMP Connectors FN350-8-29	8 A	DC ~ 400Hz	Regenerative Motor Drive	Chassis Mount	Single Stage	250 V	Terminal Block	100 °C	-25 °C	CSA ENEC UR	Single Phase
TE Connectivity AMP Connectors FN350-55-33	55 A	DC ~ 400Hz	Regenerative Motor Drive	Chassis Mount	Single Stage	250 V	Terminal Block	100 °C	-25 °C	CSA ENEC UR	Single Phase
TE Connectivity AMP Connectors FN350-30-33	30 A	DC ~ 400Hz	Regenerative Motor Drive	Chassis Mount	Single Stage	250 V	Terminal Block	100 °C	-25 °C	CSA ENEC UR	Single Phase
TE Connectivity AMP Connectors FN350-20-29	20 A	DC ~ 400Hz	Regenerative Motor Drive	Chassis Mount	Single Stage	250 V	Terminal Block	100 °C	-25 °C	CSA ENEC UR	Single Phase
TE Connectivity AMP Connectors FN350-12-29	12 A	DC ~ 400Hz	Regenerative Motor Drive	Chassis Mount	Single Stage	250 V	Terminal Block	100 °C	-25 °C	CSA ENEC UR	Single Phase
TE Connectivity AMP Connectors FN350-30-33	30 A	DC ~ 400Hz	Regenerative Motor Drive	Chassis Mount	Single Stage	250 V	Terminal Block	100 °C	-25 °C	CSA ENEC UR	Single Phase

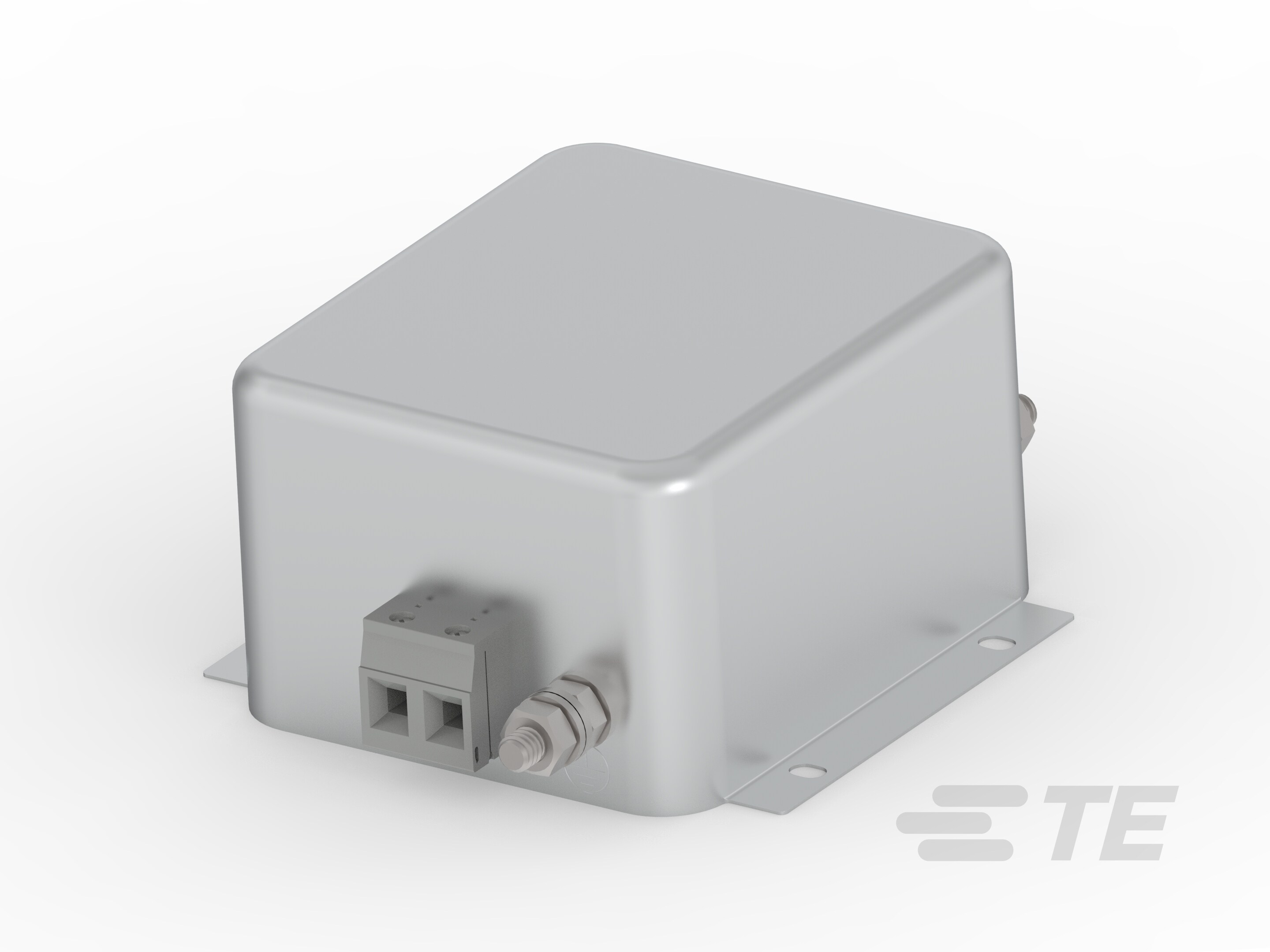

TE Connectivity AMP Connectors FN350-8-29	8 A	DC ~ 400Hz	Regenerative Motor Drive	Chassis Mount	Single Stage	250 V	Terminal Block	100 °C	-25 °C	CSA ENEC UR	Single Phase
