073644 Series

Manufacturer: Molex

Catalog

CONN HEADER HDM 144POS PCB

Part	Mounting Type	Termination	Number of Positions	Number of Positions Loaded	Pitch [x]	Pitch [x]	Features	Number of Rows	Color	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Connector Type	Material Flammability Rating	Connector Style	Number of Columns	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Connector Usage
Molex 0736441216	Through Hole	Press-Fit	144	All	0.079 in	2 mm	Guide Pin	6	Black	Flash	105 ░C	-55 °C	250 VDC	Header Male Pins	UL94 V-0	HDM	24	Gold
Molex 0736440015
Molex 0736440216	Through Hole	Press-Fit	72	All	0.079 in	2 mm	Guide Pin	6	Black	Flash	105 ░C	-55 °C	250 VDC	Header Male Pins	UL94 V-0	HDM	12	Gold
Molex 0736440217	Through Hole	Press-Fit	72	All	0.079 in	2 mm	Guide Pin	6	Black	Flash	105 ░C	-55 °C	250 VDC	Header Male Pins	UL94 V-0	HDM	12	Gold

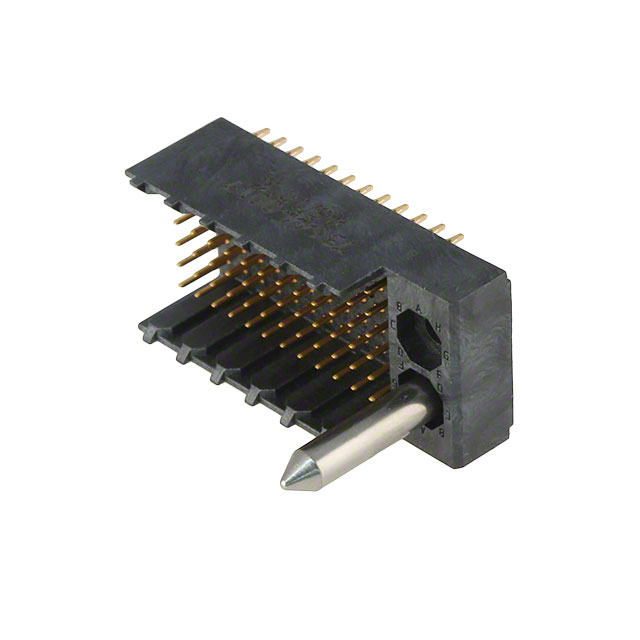

Molex 0736440017	Through Hole	Press-Fit	72	All	0.079 in	2 mm		6	Black		105 ░C	-55 °C		Header Male Pins	UL94 V-0	HDM Guide A	12	Gold	0.76 Ám	30 Áin
Molex 0736441017	Through Hole	Press-Fit	144	All	0.079 in	2 mm		6	Black		105 ░C	-55 °C		Header Male Pins	UL94 V-0	HDM Guide A	24	Gold	0.76 Ám	30 Áin	Backplane
Molex 0736441004	Through Hole	Press-Fit	144	All	0.079 in	2 mm	Guide Pin	6	Black	Flash	105 ░C	-55 °C	250 VDC	Header Male Pins	UL94 V-0	HDM	24	Gold
Molex 0736441005	Through Hole	Press-Fit	144	All	0.079 in	2 mm	Guide Pin	6	Black	Flash	105 ░C	-55 °C	250 VDC	Header Male Pins	UL94 V-0	HDM	24	Gold
