68626 Series

Catalog

CONN HEADER R/A 9POS 2.54MM

Part	Contact Shape	Insulation Color	Mounting Type	Number of Positions Loaded	Fastening Type	Number of Rows	Pitch - Mating	Pitch - Mating	Termination	Contact Type	Number of Positions	Contact Length - Mating [x]	Contact Length - Mating	Shrouding	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Connector Type	Insulation Height [z]	Insulation Height [z]	Material Flammability Rating	Contact Finish - Mating
Amphenol ICC (FCI) 68626-409HLF	Square	Black	Through Hole Right Angle	All	Push-Pull	1	0.1 in	2.54 mm	Solder	Male Pin	9	0.23 in	5.84 mm	Unshrouded	Tin	2.54 çm	100 çin	Phosphor Bronze	7.49 mm	0.295 in	Header	0.095 in	2.41 mm	UL94 V-0
Amphenol ICC (FCI) 68626-436HLF	Square	Black	Through Hole Right Angle	All	Push-Pull	1	0.1 in	2.54 mm	Solder	Male Pin	36	0.23 in	5.84 mm	Unshrouded	Tin	2.54 çm	100 çin	Phosphor Bronze	7.49 mm	0.295 in	Header	0.095 in	2.41 mm	UL94 V-0

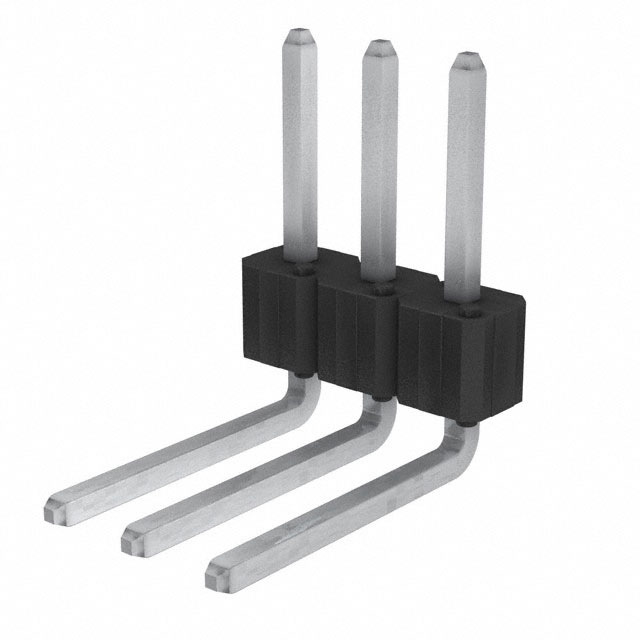

Amphenol ICC (FCI) 68626-403HLF	Square	Black	Through Hole Right Angle	All	Push-Pull	1	0.1 in	2.54 mm	Solder	Male Pin		0.23 in	5.84 mm	Unshrouded	Tin	2.54 çm	100 çin	Phosphor Bronze	7.49 mm	0.295 in	Header	0.095 in	2.41 mm	UL94 V-0
Amphenol ICC (FCI) 68626-135HLF	Square	Black	Through Hole Right Angle	All	Push-Pull	1	0.1 in	2.54 mm	Solder	Male Pin	35	0.23 in	5.84 mm	Unshrouded		0.76 Ám	30 Áin	Phosphor Bronze	7.49 mm	0.295 in	Header	0.095 in	2.41 mm	UL94 V-0	Gold or Gold GXT™
Amphenol ICC (FCI) 68626-210HLF	Square	Black	Through Hole Right Angle	All	Push-Pull	1	0.1 in	2.54 mm	Solder	Male Pin	10	0.23 in	5.84 mm	Unshrouded		0.38 µm	15 µin	Phosphor Bronze	7.49 mm	0.295 in	Header	0.095 in	2.41 mm	UL94 V-0	Gold or Gold GXT™
Amphenol ICC (FCI) 68626-236	Square	Black	Through Hole Right Angle	All	Push-Pull	1	0.1 in	2.54 mm	Solder	Male Pin	36	0.23 in	5.84 mm	Unshrouded		0.38 µm	15 µin	Phosphor Bronze	7.49 mm	0.295 in	Header	0.095 in	2.41 mm	UL94 V-0	Gold or Gold GXT™
Amphenol ICC (FCI) 68626-406HLF	Square	Black	Through Hole Right Angle	All	Push-Pull	1	0.1 in	2.54 mm	Solder	Male Pin	6	0.23 in	5.84 mm	Unshrouded	Tin	2.54 çm	100 çin	Phosphor Bronze	7.49 mm	0.295 in	Header	0.095 in	2.41 mm	UL94 V-0
Amphenol ICC (FCI) 68626-424HLF	Square	Black	Through Hole Right Angle	All	Push-Pull	1	0.1 in	2.54 mm	Solder	Male Pin	24	0.23 in	5.84 mm	Unshrouded	Tin	2.54 çm	100 çin	Phosphor Bronze	7.49 mm	0.295 in	Header	0.095 in	2.41 mm	UL94 V-0
Amphenol ICC (FCI) 68626-408HLF	Square	Black	Through Hole Right Angle	All	Push-Pull	1	0.1 in	2.54 mm	Solder	Male Pin	8	0.23 in	5.84 mm	Unshrouded	Tin	2.54 çm	100 çin	Phosphor Bronze	7.49 mm	0.295 in	Header	0.095 in	2.41 mm	UL94 V-0
Amphenol ICC (FCI) 68626-536	Square	Black	Through Hole Right Angle	All	Push-Pull	1	0.1 in	2.54 mm	Solder	Male Pin	36	0.23 in	5.84 mm	Unshrouded		0.38 µm	15 µin	Phosphor Bronze	7.49 mm	0.295 in	Header	0.095 in	2.41 mm	UL94 V-0	Gold or Gold GXT™
