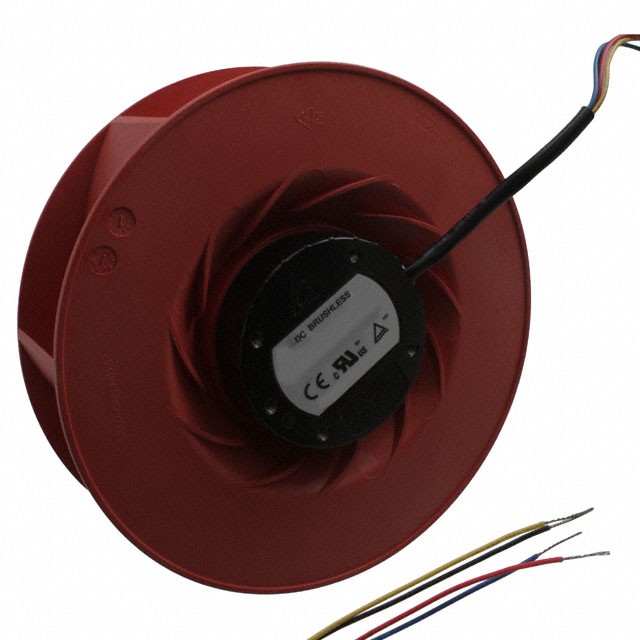

TCA1748 Series
Manufacturer: Delta Electronics
Beta
⌘K
FAN IMP MTRZD 175X69MM 48VDC
| Part | Lifetime @ Temp. | Material - Blade | Voltage Range [Min] | Voltage Range [Max] | Current Rating (Amps) | Material - Frame | Bearing Type | Approval Agency | Voltage - Rated | Width [y] | Static Pressure | Static Pressure | Weight [custom] | Weight [custom] | Noise | Power (Watts) | Features | Termination | Size / Dimension | Size / Dimension [diameter] | Air Flow | Air Flow | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | RPM | Fan Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 70000 Hrs | Plastic | 36 VDC | 60 V | 1.6 A | Aluminum | Ball | CE cURus TUV | 48 VDC | 69 mm | 487.5 Pa | 1.957 in H2O | 0.67 kg | 1.5 lbs | 70.8 dB(A) | 76.8 W | GR-487 (Salt Fog Protection) Locked Rotor Protection PWM Control Speed Sensor (Tach) | 4 Wire Leads | Round | 175 mm | 11.98 m³/min | 428 CFM | IP54 - Dust Protected Water Resistant | 70 °C | -25 °C | 4000 RPM | Motorized Impellers |
