1304 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN TERM RECT TONG 14-16 AWG #8

Part	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Contact Material	Contact Finish	Color	Insulation	Width - Outer Edges [x]	Width - Outer Edges [x]	Tab Thickness	Tab Thickness	Length - Overall [x]	Length - Overall [x]	Terminal Style	Terminal Type	Mounting Type	Stud/Tab Size	Termination	Wire Gauge [Min]	Wire Gauge [Max]	Material - Insulation	Features	Thickness	Thickness	Width - Outer Edges [y]	Width - Outer Edges [y]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]
TE Connectivity AMP Connectors 130477	4.34 mm	0.171 in	Copper	Tin	Blue	Insulated	6.35 mm	0.25 "	0.79 mm	0.031 in	20.65 mm	0.813 in	Single Stud Hole	Rectangular Tongue	Free Hanging (In-Line)	8 Stud	Crimp	14 AWG	16 AWG

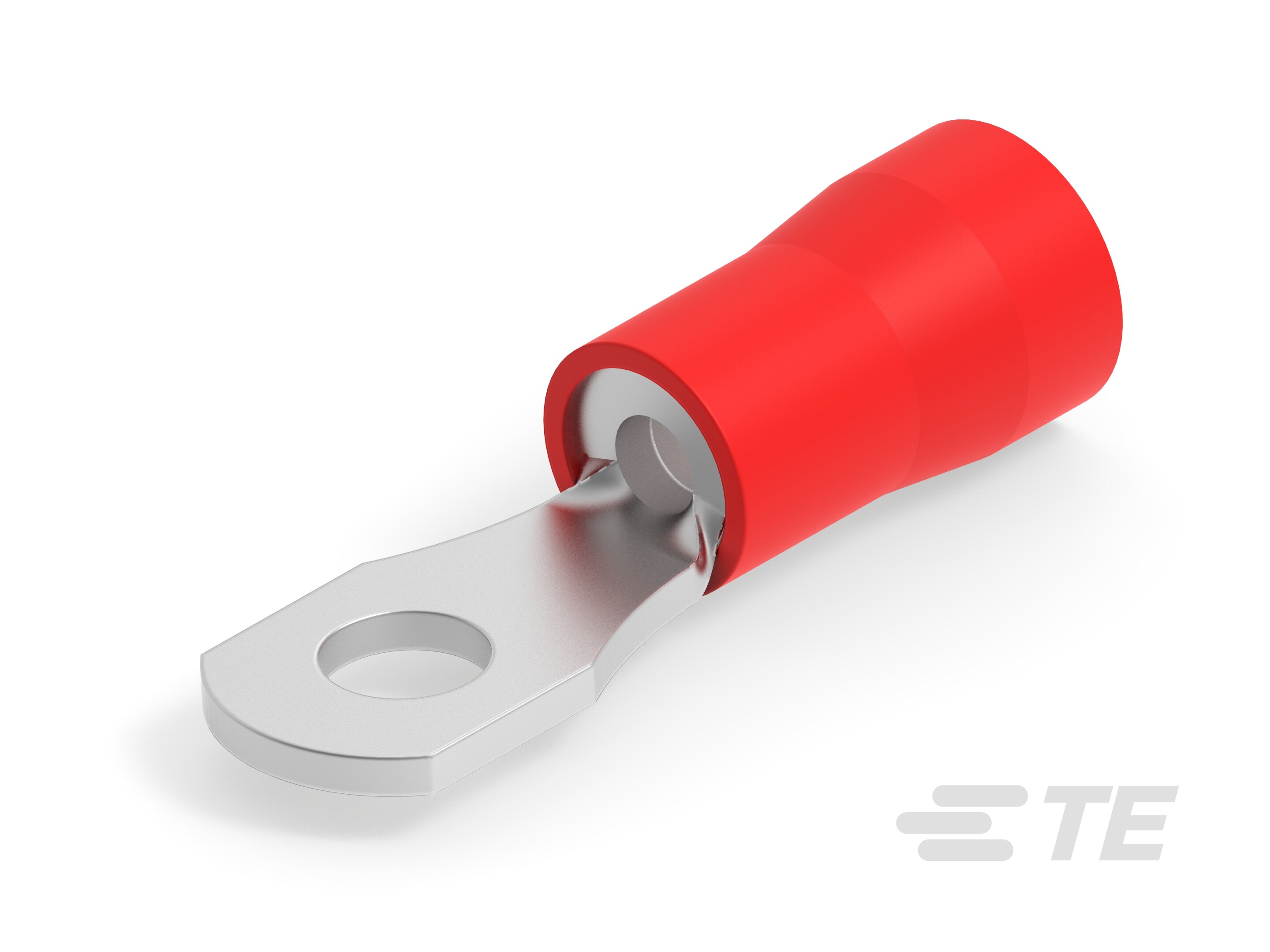

TE Connectivity AMP Connectors 130452			Copper	Tin	Red	Insulated					20.5 mm	0.807 in		Flat Sided	Free Hanging (In-Line)	4 Stud	Crimp	16 AWG	22 AWG	Nylon Polyamide (PA)	Serrated Termination	0.79 mm	0.031 in	5.5 mm	0.217 in
TE Connectivity AMP Connectors 130417			Copper	Tin	Blue	Insulated	8.71 mm	0.343 in			22.3 mm	0.878 in		Circular	Free Hanging (In-Line)	4 Stud	Crimp	14 AWG	16 AWG	Poly-Vinyl Chloride (PVC)	Serrated Termination	0.79 mm	0.031 in			0.118 in	4.9 mm	0.193 in	3 mm

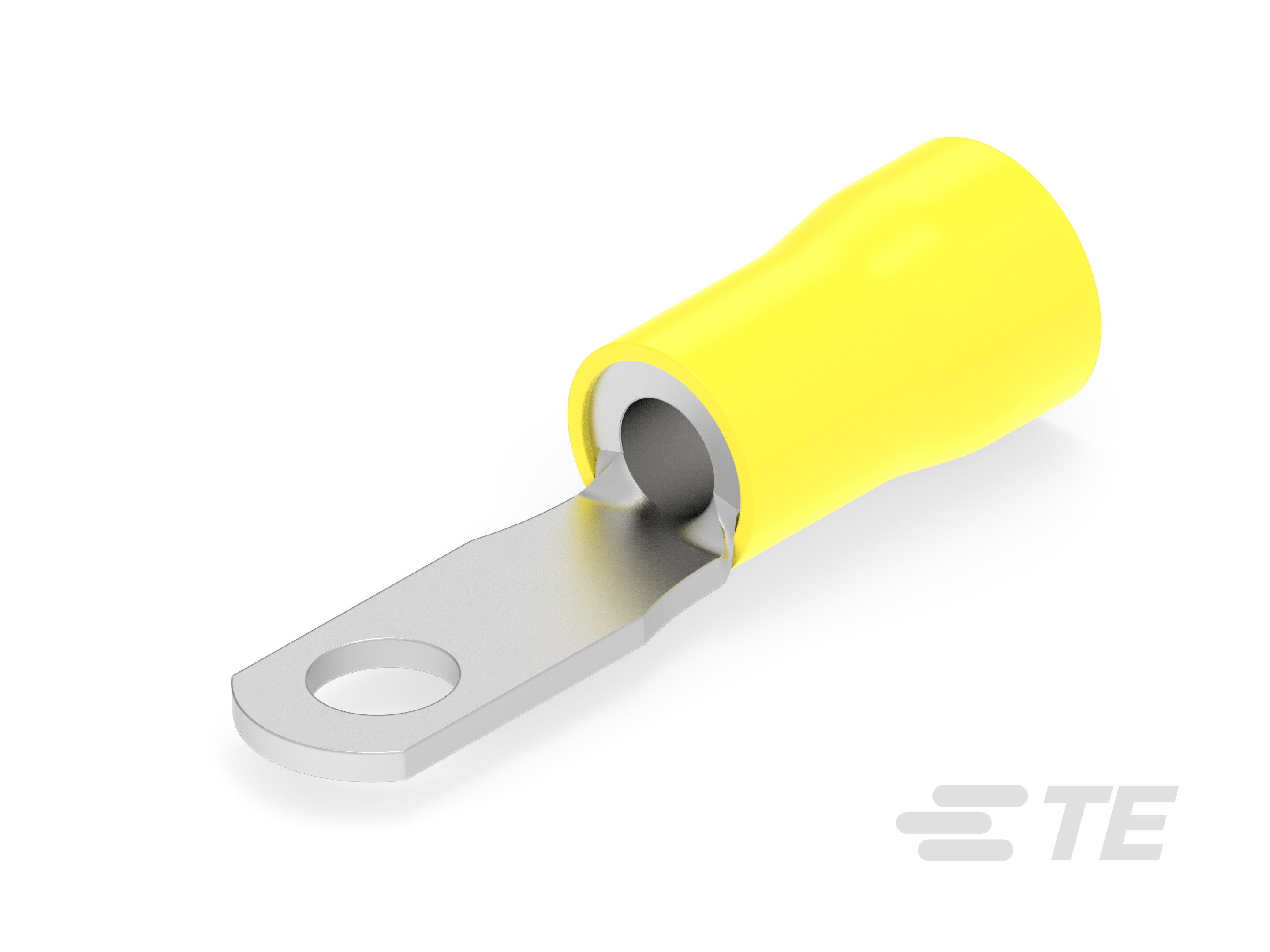

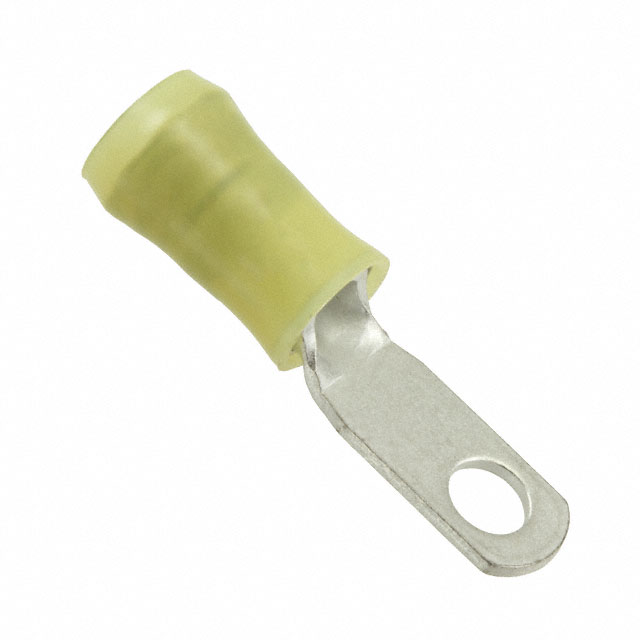

TE Connectivity AMP Connectors 130446			Copper	Tin	Yellow	Insulated					31.4 mm	1.236 in		Flat Sided	Free Hanging (In-Line)	8 Stud	Crimp	10 AWG	12 AWG	Nylon Polyamide (PA)	Serrated Termination	0.99 mm	0.039 in	6.8 mm	0.268 in					3.81 mm	0.15 "	6.35 mm	0.25 "

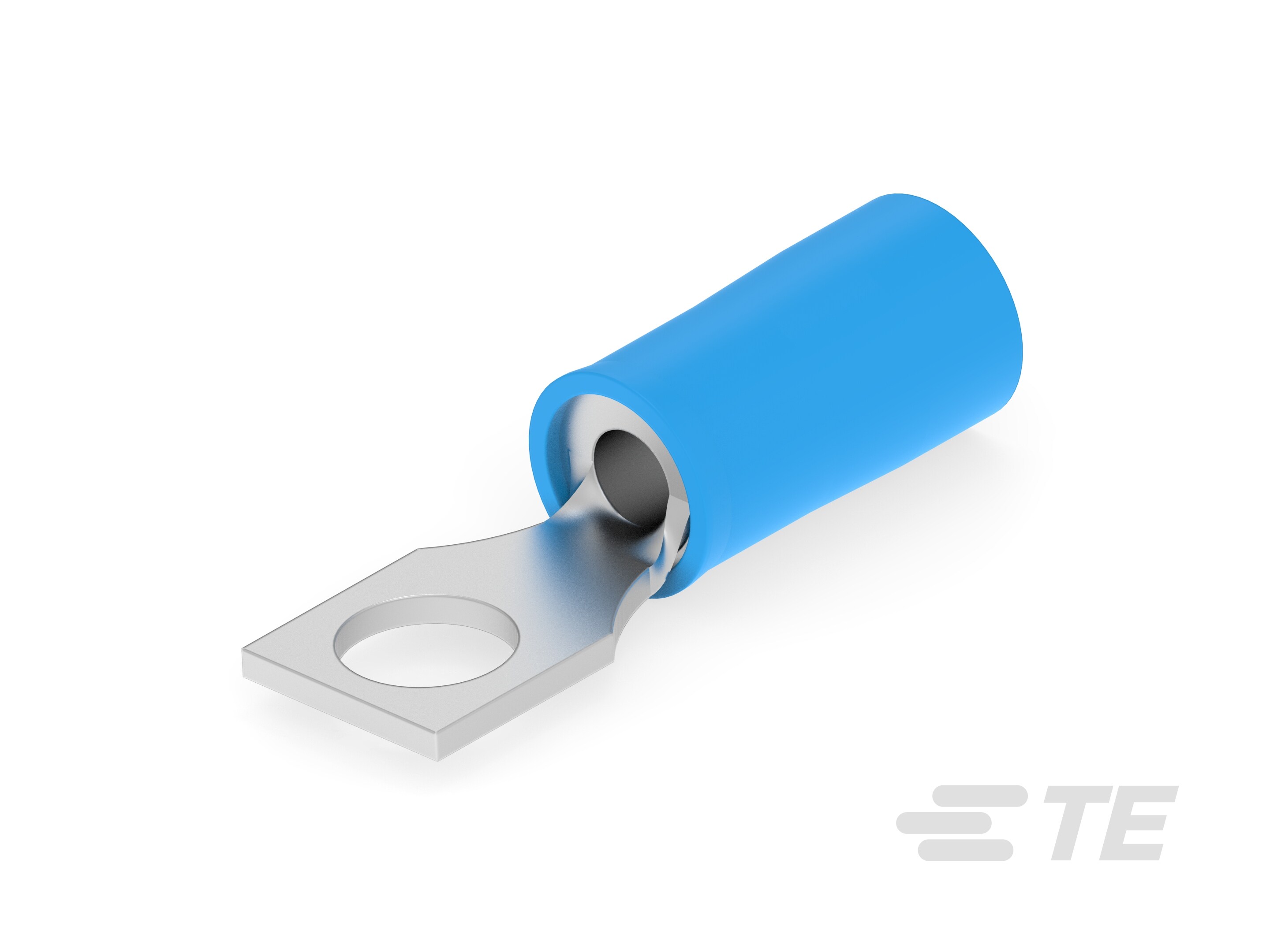

TE Connectivity AMP Connectors 130476	4.34 mm	0.171 in	Copper	Tin	Blue	Insulated	6.35 mm	0.25 "	0.79 mm	0.031 in	20.65 mm	0.813 in	Single Stud Hole	Rectangular Tongue	Free Hanging (In-Line)	8 Stud	Crimp	14 AWG	16 AWG

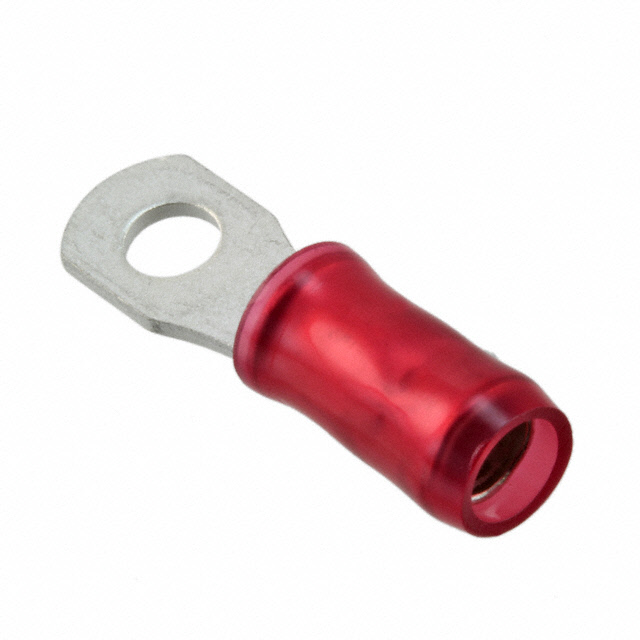

TE Connectivity AMP Connectors 130451			Copper	Tin		Insulated					20.5 mm	0.807 in		Flat Sided	Free Hanging (In-Line)		Crimp	16 AWG	22 AWG		Serrated Termination	0.79 mm	0.031 in	5.5 mm	0.217 in
