315-018 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 18POS 0.156

Part	Termination Rows [custom]	Material - Insulation	Card Type	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Contact Material	Termination	Number of Positions/Bay/Row	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish	Contact Type	Mounting Type	Gender	Number of Positions	Number of Rows [custom]	Color	Read Out	Features

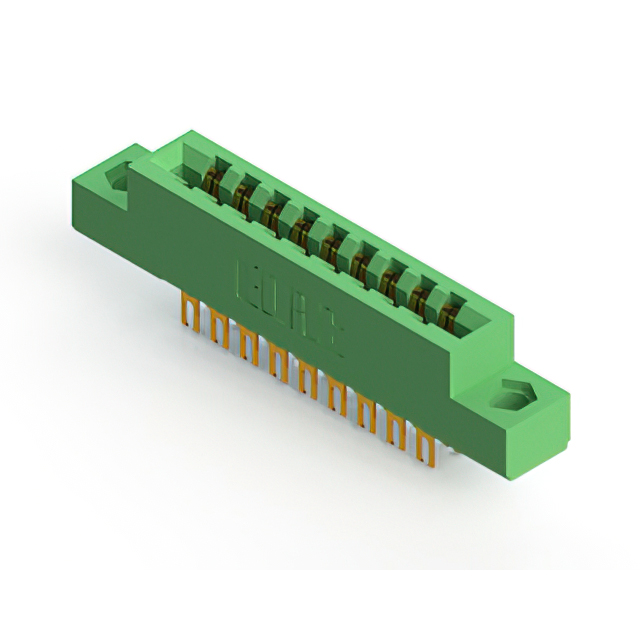

EDAC Inc. 315-018-500-204	2	Polyester Thermoplastic	Non Specified - Dual Edge	0.25 Ám	10 Áin	-40 C	105 ░C	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Solder Eyelet(s)	9	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Gold	Semi Bellows	Panel Mount	Female	18	2	Green	Dual

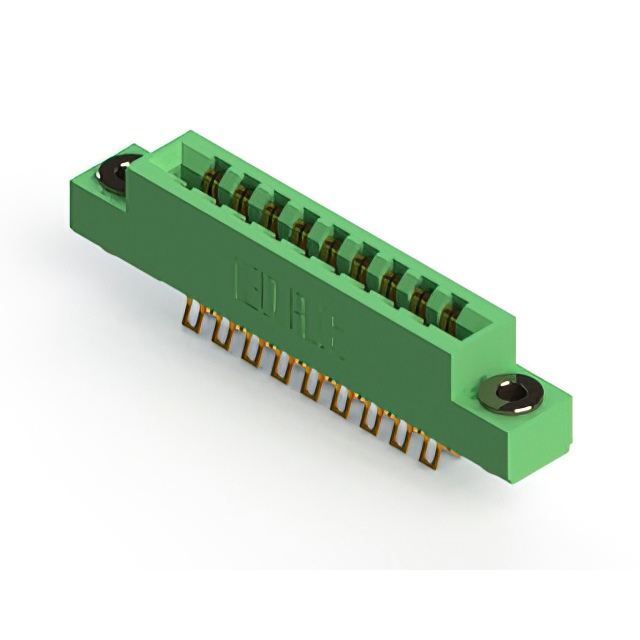

EDAC Inc. 315-018-555-203	2	Polyester Thermoplastic	Non Specified - Dual Edge	0.25 Ám	10 Áin	-40 C	105 ░C	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Solder	9	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Gold	Semi Bellows	Board Edge Straddle Mount	Female	18	2	Green	Dual	Card Extender
EDAC Inc. 315-018-520-258	2	Polyester Thermoplastic	Non Specified - Dual Edge	0.25 Ám	10 Áin	-40 C	105 ░C	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Solder	9	4-40 Flush Mount Threaded Insert Top Opening			Gold	Semi Bellows	Panel Mount Through Hole	Female	18	2	Green	Dual

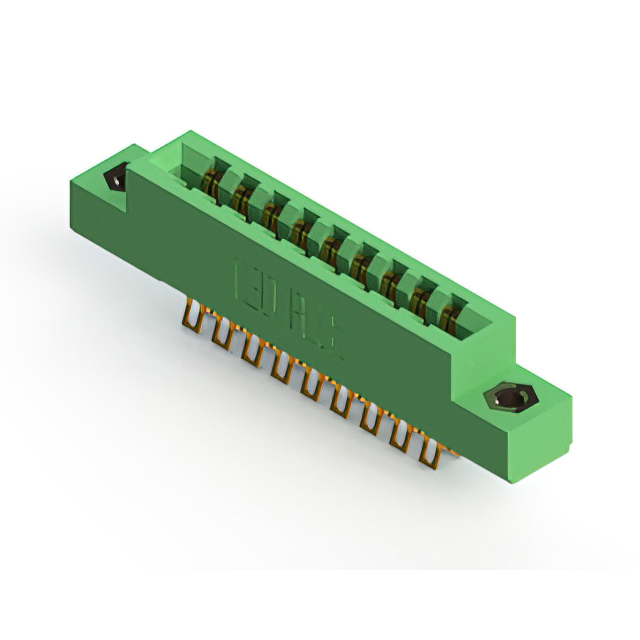

EDAC Inc. 315-018-555-207	2	Polyester Thermoplastic	Non Specified - Dual Edge	0.25 Ám	10 Áin	-40 C	105 ░C	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Solder	9	Flush Mount M3 Threaded Insert Top Opening			Gold	Semi Bellows	Board Edge Straddle Mount	Female	18	2	Green	Dual	Card Extender

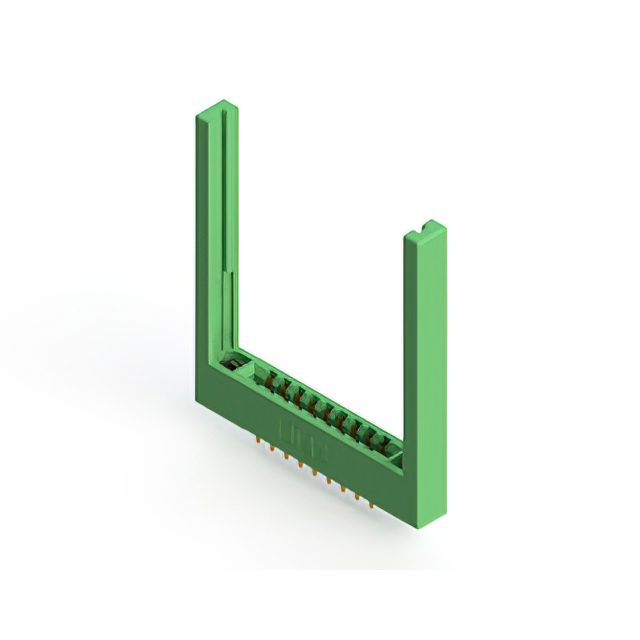

EDAC Inc. 315-018-521-268	2	Polyester Thermoplastic	Non Specified - Dual Edge	0.25 Ám	10 Áin	-40 C	105 ░C	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Solder	9	4-40 Flush Mount Threaded Insert Top Opening			Gold	Semi Bellows	Panel Mount Through Hole	Female	18	2	Green	Dual
EDAC Inc. 315-018-555-278	2	Polyester Thermoplastic	Non Specified - Dual Edge	0.25 Ám	10 Áin	-40 C	105 ░C	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Solder	9	4-40 Flush Mount Threaded Insert Top Opening			Gold	Semi Bellows	Board Edge Straddle Mount	Female	18	2	Green	Dual	Card Extender Card Guides

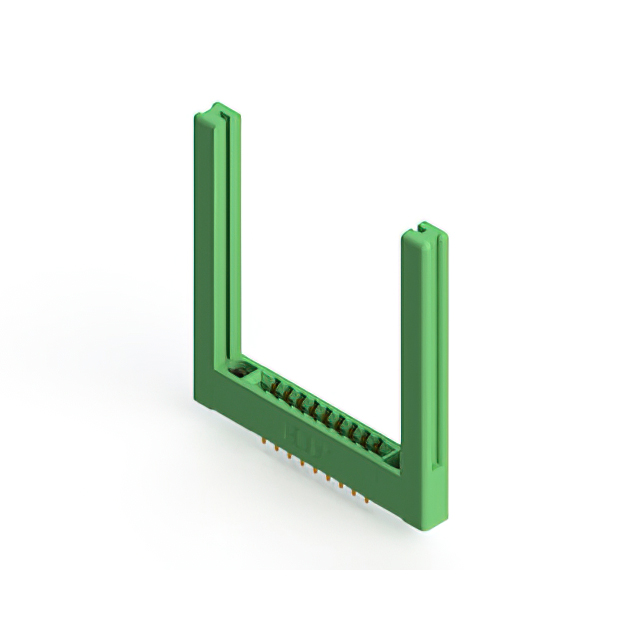

EDAC Inc. 315-018-521-258	2	Polyester Thermoplastic	Non Specified - Dual Edge	0.25 Ám	10 Áin	-40 C	105 ░C	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Solder	9	4-40 Flush Mount Threaded Insert Top Opening			Gold	Semi Bellows	Panel Mount Through Hole	Female	18	2	Green	Dual
EDAC Inc. 315-018-556-268	2	Polyester Thermoplastic	Non Specified - Dual Edge	0.25 Ám	10 Áin	-40 C	105 ░C	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Solder	9	4-40 Flush Mount Threaded Insert Top Opening			Gold	Semi Bellows	Board Edge Straddle Mount	Female	18	2	Green	Dual	Card Extender Card Guides

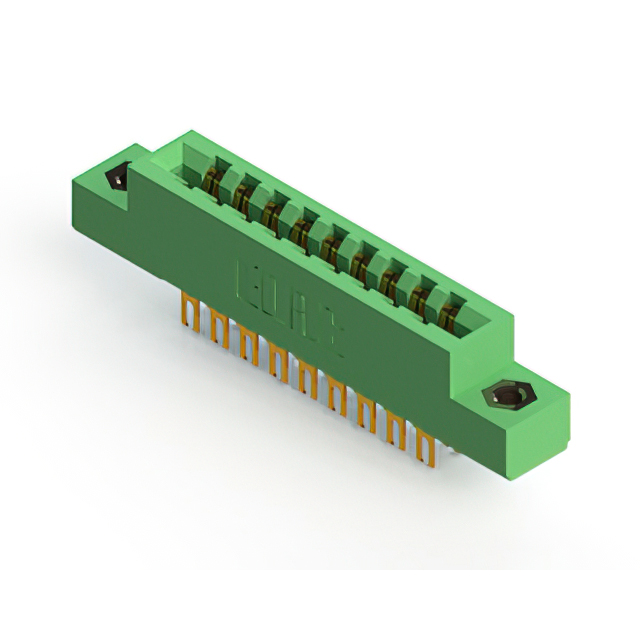

EDAC Inc. 315-018-500-207	2	Polyester Thermoplastic	Non Specified - Dual Edge	0.25 Ám	10 Áin	-40 C	105 ░C	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Solder Eyelet(s)	9	Flush Mount M3 Threaded Insert Top Opening			Gold	Semi Bellows	Panel Mount	Female	18	2	Green	Dual
EDAC Inc. 315-018-520-207	2	Polyester Thermoplastic	Non Specified - Dual Edge	0.25 Ám	10 Áin	-40 C	105 ░C	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Solder	9	Flush Mount M3 Threaded Insert Top Opening			Gold	Semi Bellows	Panel Mount Through Hole	Female	18	2	Green	Dual
