78286 Series

Catalog

CONN HEADER VERT 40POS 2.54MM

Part	Contact Finish - Mating	Overall Contact Length	Overall Contact Length	Insulation Color	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating [x]	Material Flammability Rating	Number of Positions Loaded	Shrouding	Contact Material	Fastening Type	Contact Shape	Number of Positions	Contact Length - Post	Contact Length - Post	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Type	Termination	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows	Contact Finish - Post

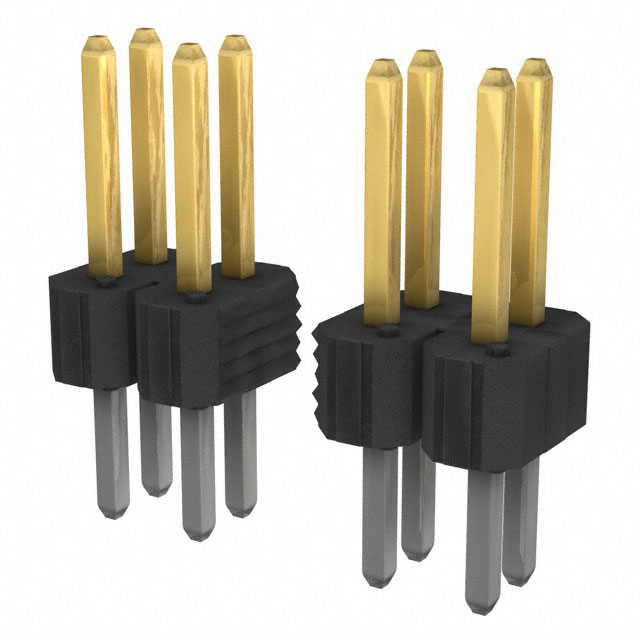

Amphenol ICC (FCI) 78286-140HLF	Gold or Gold GXT™	12.7 mm	0.5 "	Black	0.1 in	2.54 mm	6.1 mm	0.24 in	UL94 V-0	All	Unshrouded	Phosphor Bronze	Push-Pull	Square	40	4.06 mm	0.16 in	Through Hole	0.1 in	2.54 mm	Male Pin	Solder	Header	30 Áin	0.76 Ám	2.54 mm	0.1 in	2

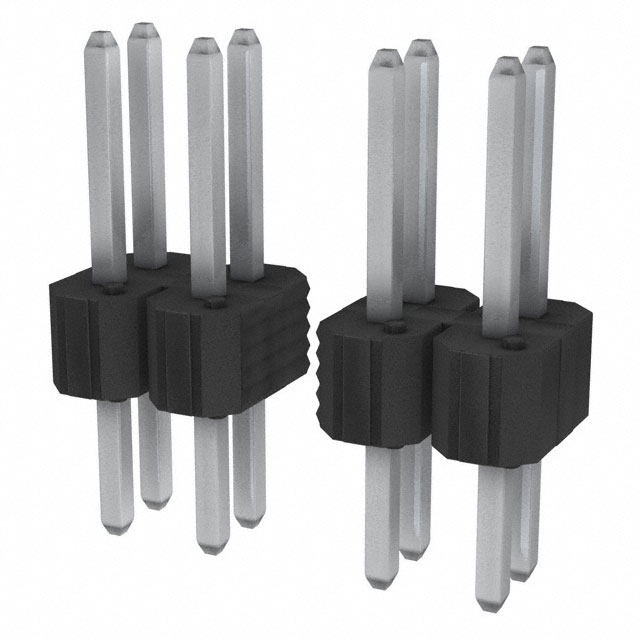

Amphenol ICC (FCI) 78286-422HLF		12.7 mm	0.5 "	Black	0.1 in	2.54 mm	6.1 mm	0.24 in	UL94 V-0	All	Unshrouded	Phosphor Bronze	Push-Pull	Square	22 positions	4.06 mm	0.16 in	Through Hole	0.1 in	2.54 mm	Male Pin	Solder	Header	100 çin	2.54 çm	2.54 mm	0.1 in	2	Tin
Amphenol ICC (FCI) 78286-440HLF		12.7 mm	0.5 "	Black	0.1 in	2.54 mm	6.1 mm	0.24 in	UL94 V-0	All	Unshrouded	Phosphor Bronze	Push-Pull	Square	40	4.06 mm	0.16 in	Through Hole	0.1 in	2.54 mm	Male Pin	Solder	Header	100 çin	2.54 çm	2.54 mm	0.1 in	2	Tin
Amphenol ICC (FCI) 78286-132HLF	Gold or Gold GXT™	12.7 mm	0.5 "	Black	0.1 in	2.54 mm	6.1 mm	0.24 in	UL94 V-0	All	Unshrouded	Phosphor Bronze	Push-Pull	Square		4.06 mm	0.16 in	Through Hole	0.1 in	2.54 mm	Male Pin	Solder	Header	30 Áin	0.76 Ám	2.54 mm	0.1 in	2
Amphenol ICC (FCI) 78286-426HLF		12.7 mm	0.5 "	Black	0.1 in	2.54 mm	6.1 mm	0.24 in	UL94 V-0	All	Unshrouded	Phosphor Bronze	Push-Pull	Square	26	4.06 mm	0.16 in	Through Hole	0.1 in	2.54 mm	Male Pin	Solder	Header	100 çin	2.54 çm	2.54 mm	0.1 in	2	Tin
Amphenol ICC (FCI) 78286-134HLF	Gold or Gold GXT™	12.7 mm	0.5 "	Black	0.1 in	2.54 mm	6.1 mm	0.24 in	UL94 V-0	All	Unshrouded	Phosphor Bronze	Push-Pull	Square	34	4.06 mm	0.16 in	Through Hole	0.1 in	2.54 mm	Male Pin	Solder	Header	30 Áin	0.76 Ám	2.54 mm	0.1 in	2
Amphenol ICC (FCI) 78286-130HLF	Gold or Gold GXT™	12.7 mm	0.5 "	Black	0.1 in	2.54 mm	6.1 mm	0.24 in	UL94 V-0	All	Unshrouded	Phosphor Bronze	Push-Pull	Square	30	4.06 mm	0.16 in	Through Hole	0.1 in	2.54 mm	Male Pin	Solder	Header	30 Áin	0.76 Ám	2.54 mm	0.1 in	2
Amphenol ICC (FCI) 78286-420HLF		12.7 mm	0.5 "	Black	0.1 in	2.54 mm	6.1 mm	0.24 in	UL94 V-0	All	Unshrouded	Phosphor Bronze	Push-Pull	Square	20	4.06 mm	0.16 in	Through Hole	0.1 in	2.54 mm	Male Pin	Solder	Header	100 çin	2.54 çm	2.54 mm	0.1 in	2	Tin
