076985 Series

Manufacturer: Molex

Catalog

CONN HEADER IMPACT 180POS PCB

Part	Number of Positions	Number of Columns	Color	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Termination	Material Flammability Rating	Voltage Rating	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Connector Type	Number of Positions Loaded	Contact Layout, Typical	Connector Style	Contact Layout, Typical
Molex 0769855208	180	12	Black	0.76 Ám	30 Áin	Gold	Press-Fit	UL94 V-0	30 VDC	Through Hole	85 °C	-55 °C	15	Header Male Pins	All	60 Ground

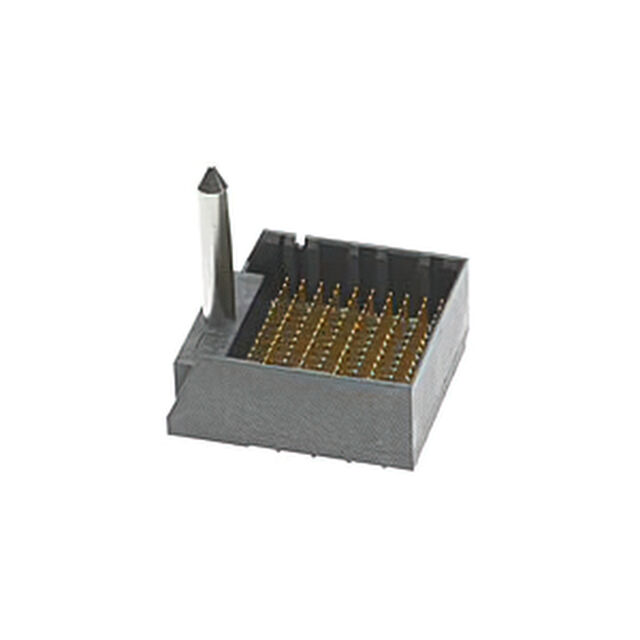

Molex 0769857107	150	10	Black	0.76 Ám	30 Áin	Gold	Press-Fit	UL94 V-0	30 VDC	Through Hole	85 °C	-55 °C	15	Header Male Pins	All	50 Differential Pairs	Guide Left Impact
Molex 0769857105	150	10	Black	0.76 Ám	30 Áin	Gold	Press-Fit	UL94 V-0	30 VDC	Through Hole	85 °C	-55 °C	15	Header Male Pins	All	50 Differential Pairs	Guide Left Impact
Molex 0769859208	180	12	Black	0.76 Ám	30 Áin	Gold	Press-Fit	UL94 V-0	30 VDC	Through Hole	85 °C	-55 °C	15	Header Male Pins	All	60 Ground
Molex 0769851128	150	10	Black	0.76 Ám	30 Áin	Gold	Press-Fit	UL94 V-0	30 VDC	Through Hole	85 °C	-55 °C	15	Header Male Pins	All	50 Differential Pairs	Impact
Molex 0769857208	180	12	Black	0.76 Ám	30 Áin	Gold	Press-Fit	UL94 V-0	30 VDC	Through Hole	85 °C	-55 °C	15	Header Male Pins	All	60 Ground	Guide Left Impact
Molex 0769857805	120	8	Black	0.76 Ám	30 Áin	Gold	Press-Fit	UL94 V-0	30 VDC	Through Hole	85 °C	-55 °C	15	Header Male Pins	All		Guide Left Impact	40 Differential Pairs

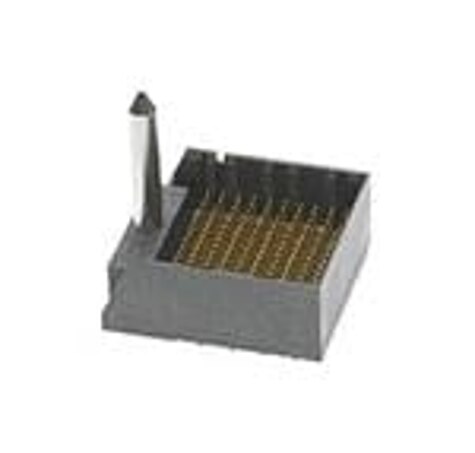

Molex 0769857108	150	10	Black	0.76 Ám	30 Áin	Gold	Press-Fit	UL94 V-0	30 VDC	Through Hole	85 °C	-55 °C	15	Header Male Pins	All	50 Differential Pairs	Guide Left Impact
