C276CC Series

Manufacturer: KEMET

Catalog

CAP FILM 18UF 5% 470VAC RADIAL

Part	Capacitance	Termination	Termination	Termination	Voltage Rating - AC	Dielectric Material	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Applications	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Lead Spacing	Lead Spacing	Size / Dimension
KEMET C276CCI5180LF0J	18 µF	6.3 mm	Quick Connect	0.25 "	470 V	Polypropylene (PP) Metallized	Chassis Stud Mount	85 °C	-25 °C	5 %	73.5 mm	2.894 in	Motor Run	Can Radial	1.575 in	40 mm
KEMET C276CCF4400LG0J	4 µF		Wire Leads		470 V	Polypropylene (PP) Metallized	Chassis Stud Mount	85 °C	-25 °C	5 %			Motor Run	Can Radial	0.984 "	25 mm	60.5 mm	2.382 in
KEMET C276CC35600AA1J	60 µF	6.3 mm	Quick Connect	0.25 "	470 V	Polypropylene (PP) Metallized	Chassis Stud Mount	85 °C	-25 °C	5 %		4.843 in	Motor Run	Can Radial	1.969 in	50 mm			123 mm	0.528 in	13.4 mm

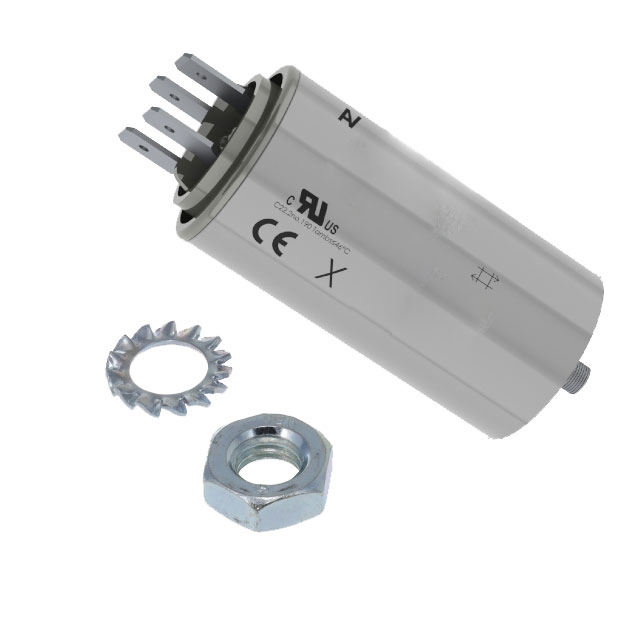

KEMET C276CC24630AA0J	6.3 µF	6.3 mm	Quick Connect	0.25 "	470 V	Polypropylene (PP) Metallized	Chassis Stud Mount	85 °C	-25 °C	5 %	58.5 mm	2.303 in	Motor Run	Can Radial	1.181 "					0.394 in	10 mm	30 mm
KEMET C276CC25100AA0J	10 µF	6.3 mm	Quick Connect	0.25 "	470 V	Polypropylene (PP) Metallized	Chassis Stud Mount	85 °C	-25 °C	5 %	58.5 mm	2.303 in	Motor Run	Can Radial	1.378 "	35 mm				0.394 in	10 mm
KEMET C276CC35250AA1J	25 µF	6.3 mm	Quick Connect	0.25 "	470 V	Polypropylene (PP) Metallized	Chassis Stud Mount	85 °C	-25 °C	5 %			Motor Run	Can Radial	1.575 in	40 mm	96 mm	3.78 in		0.528 in	13.4 mm
KEMET C276CC24150AA0J	1500 nF	6.3 mm	Quick Connect	0.25 "	470 V	Polypropylene (PP) Metallized	Chassis Stud Mount	85 °C	-25 °C	5 %			Motor Run	Can Radial	0.984 "	25 mm	60 mm	2.362 in		0.394 in	10 mm
KEMET C276CC25140AA0J	14 µF	6.3 mm	Quick Connect	0.25 "	470 V	Polypropylene (PP) Metallized	Chassis Stud Mount	85 °C	-25 °C	5 %			Motor Run	Can Radial	1.378 "	35 mm	75.5 mm	2.972 in		0.394 in	10 mm
KEMET C276CC24300AA0J	3 µF	6.3 mm	Quick Connect	0.25 "	470 V	Polypropylene (PP) Metallized	Chassis Stud Mount	85 °C	-25 °C	5 %			Motor Run	Can Radial	0.984 "	25 mm	60 mm	2.362 in		0.394 in	10 mm
KEMET C276CC24600AA0J	6 µF	6.3 mm	Quick Connect	0.25 "	470 V	Polypropylene (PP) Metallized	Chassis Stud Mount	85 °C	-25 °C	5 %	58.5 mm	2.303 in	Motor Run	Can Radial	1.181 "					0.394 in	10 mm	30 mm
