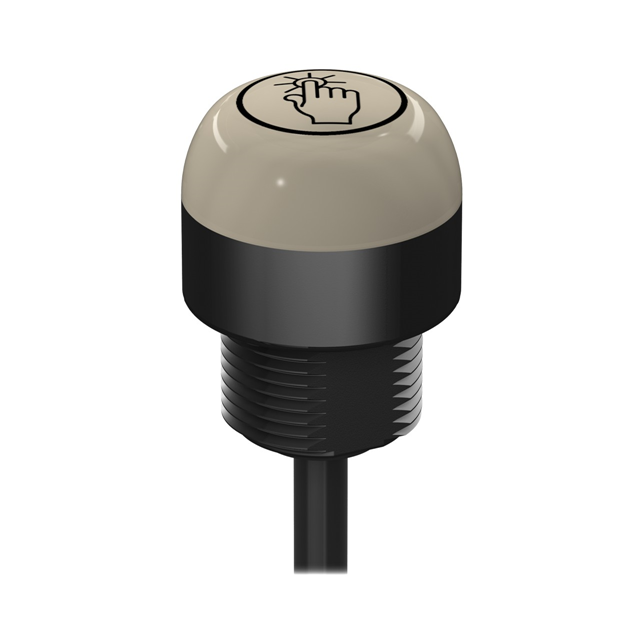

K30 SERIES EZ-LIGHT: 1-COLOR TOUCH SENSOR GEN 2
| Part | Approval Agency | Response Time | Ingress Protection | Illumination Type, Color | Actuator Type | Circuit | Termination Style | Panel Cutout Dimensions [diameter] | Switch Function | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply [Min] | Voltage - Supply [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BANNER ENGINEERING | CE cULus | 150 ms | IP67/IP69K | LED Yellow | Button Domed Round | SPST-NO | Connector (M12) | 22 mm | Off-Mom | Panel Mount Front | -40 C | 50 °C | 12 VDC | 30 VDC |
 BANNER ENGINEERING | CE cULus | 150 ms | IP67/IP69K | Green LED | Button Domed Round | SPST-NO | Cable Leads | 22 mm | Off-Mom | Panel Mount Front | -40 C | 50 °C | 12 VDC | 30 VDC |
BANNER ENGINEERING | CE cULus | 150 ms | IP67/IP69K | Green/Red LED | Button Domed Round | SPST-NO | Connector (M12) | 22 mm | Off-Mom | Panel Mount Front | -40 C | 50 °C | 12 VDC | 30 VDC |
