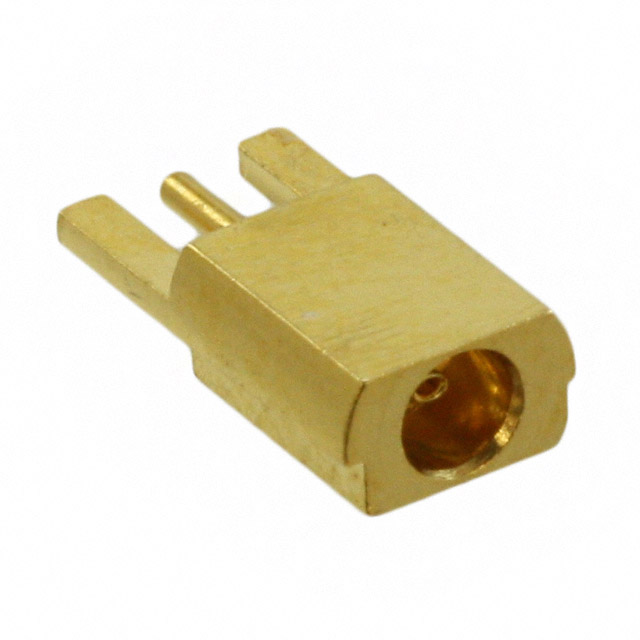

MMCX Jack, Straight, PCB Receptacle, End Launch, Brass Body, Gold (Au) Plating, Tape and Reel, Leads Oriented Opposite Feed Holes, without Label, 50 Ohms
MMCX Jack, Straight, PCB Receptacle, End Launch, Brass Body, Gold (Au) Plating, Tape and Reel, Leads Oriented Opposite Feed Holes, without Label, 50 Ohms
MMCX Jack, Straight, PCB Receptacle, End Launch, Brass Body, Gold (Au) Plating, Tape and Reel, Leads Oriented Opposite Feed Holes, without Label, 50 Ohms
| Part | Dielectric Material | Fastening Type | Connector Style | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Material | Center Contact Plating | Body Finish | Mounting Type | Impedance | Housing Color | Number of Ports | Frequency - Max [Max] | Cable Group | Voltage Rating | Contact Termination | Connector Type | Shield Termination | Adapter Series | Conversion Type | Body Material | Center Gender | Convert To (Adapter End) | Convert From (Adapter End) | Adapter Type | Style | Mating Cycles | Insertion Loss | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Polytetrafluoroethylene (PTFE) | Snap-On | SSMCX | 155 °C | -55 °C | Beryllium Copper | Gold | Gold | Board Edge Cutout Surface Mount | 50 Ohms | Gold | 1 | 6000 MHz | 1.37mm Coaxial Cable | 170 V | Solder | Female Socket Jack | Solder | |||||||||||
Molex | Polytetrafluoroethylene (PTFE) | Snap-On | Beryllium Copper | Gold | Gold | Free Hanging (In-Line) | 50 Ohms | 40 GHz | SMP to SMP | Same Series | Beryllium Copper | Female to Female | Female Socket SMP Jack | SMP Jack Female Socket | Jack to Jack | Straight | |||||||||||||
Molex | |||||||||||||||||||||||||||||
 Molex | |||||||||||||||||||||||||||||
Molex | Polytetrafluoroethylene (PTFE) | Snap-On | MCX | Beryllium Copper | Gold | Gold | Through Hole | 50 Ohms | Gold | 1 | 6000 MHz | 335 V | Solder | Female Socket Jack | Solder | Brass | 500 | ||||||||||||
Molex | Polytetrafluoroethylene (PTFE) | Snap-On | MMCX | Brass | Gold | Gold | Free Hanging (In-Line) Right Angle | 50 Ohms | Gold | 1 | 6000 MHz | RG-405 (.085" Semi Rigid) | 170 V | Solder | Male Pin Plug | Solder | Brass | ||||||||||||
 Molex | Liquid Crystal Polymer (LCP) | Snap-On | 165 °C | -65 ░C | Brass | Gold | Gold | Surface Mount | 50 Ohms | Gold | 1 | 40 GHz | 335 V | Solder | Male Pin Plug | Solder | Brass | 500 | 0.1 dB | Limited Detent | |||||||||
 Molex | |||||||||||||||||||||||||||||
 Molex | Polytetrafluoroethylene (PTFE) | Snap-On | MCX | 155 °C | -55 °C | Beryllium Copper | Gold | Gold | Surface Mount | 75 Ohms | Gold | 1 | 6000 MHz | 335 V | Solder | Female Socket Receptacle | Solder | Brass | 500 | ||||||||||
Molex | Polytetrafluoroethylene (PTFE) | Snap-On | MCX | Brass | Gold | Gold | Free Hanging (In-Line) Right Angle | 1 | RG-179 | Solder | Male Pin Plug | Crimp | Brass |
