53K407 Series
Manufacturer: Rosenberger
Beta
⌘K

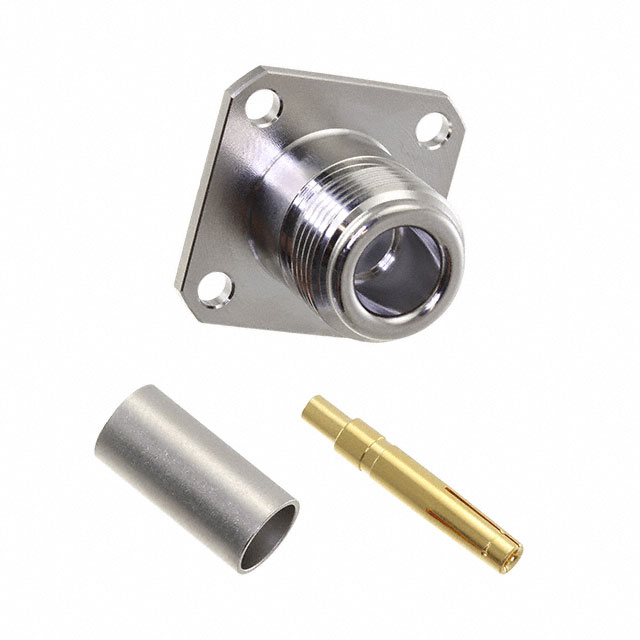

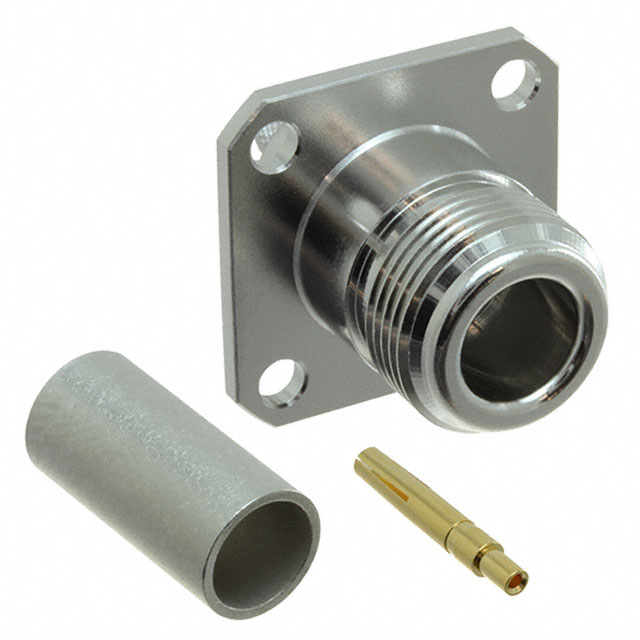

CONN N TYPE JACK STR 50OHM CRIMP
| Part | Mating Cycles | Voltage Rating | Body Material | Includes | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Center Contact Plating | Body Finish | Mounting Type | Frequency - Max [Max] | Housing Color | Connector Type | Connector Style | Mounting Feature | Contact Termination | Number of Ports | Center Contact Material | Impedance | Shield Termination | Cable Group | Cable Group | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 500 | 500 V | Brass | 1 Connector 1 Contact 1 Ferrule | 155 C | -55 C | Polytetrafluoroethylene (PTFE) | Gold | White Bronze | Panel Mount | 11 GHz | Silver | Female Socket Jack | N Type | Flange | Crimp | 1 | Bronze | 50 Ohms | Crimp | 223 400 | RG-142B | Threaded |
 Rosenberger | 500 | 500 V | Brass | 1 Connector 1 Contact 1 Ferrule | 155 C | -55 C | Polytetrafluoroethylene (PTFE) | Gold | White Bronze | Panel Mount | 11 GHz | Silver | Female Socket Jack | N Type | Flange | Crimp | 1 | Beryllium Copper | 50 Ohms | Crimp | 141 RG-58C | Threaded |
