2SH-C Series

Manufacturer: Adam Tech

Catalog

CONN SHROUDED HEADER (4 SIDES) HDR 6 POS 2MM SOLDER ST THRU-HOLE

Part	Insulation Material	Insulation Color	Number of Positions	Contact Shape	Style	Termination	Contact Type	Insulation Height [z]	Insulation Height [z]	Mounting Type	Shrouding	Contact Finish - Post	Current Rating (Amps)	Voltage Rating	Number of Rows	Number of Positions Loaded	Connector Type	Material Flammability Rating	Contact Material	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post	Operating Temperature [Max]	Operating Temperature [Min]	Features	Insulation Height [custom]	Insulation Height [custom]	Contact Length - Post	Insulation Height	Insulation Height
Adam Tech 2SH-C-06-TS	Nylon 6/6 Polyamide (PA66)	White	6	Square	Board to Cable/Wire	Kinked Pin Solder	Male Pin	6.1 mm	0.24 in	Through Hole	Shrouded - 4 Wall	Tin	2 A	100 VAC	1	All	Header	UL94 V-0	Brass	0.079 "	2 mm	0.134 "	3.4 mm	85 °C	-25 °C

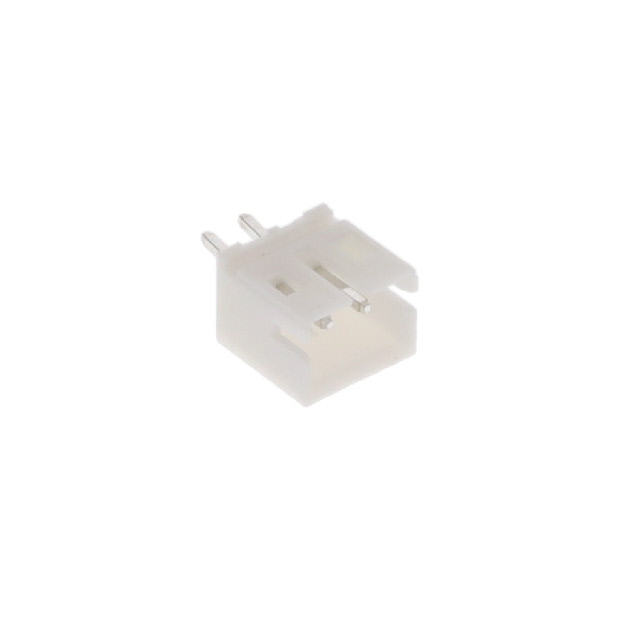

Adam Tech 2SH-C-02-TS	Nylon 6/6 Polyamide (PA66)	White	2	Square	Board to Cable/Wire	Kinked Pin Solder	Male Pin	6.1 mm	0.24 in	Through Hole	Shrouded - 4 Wall	Tin	2 A	100 VAC	1	All	Header	UL94 V-0	Brass	0.079 "	2 mm	0.134 "	3.4 mm	85 °C	-25 °C
Adam Tech 2SH-C-04-TS	Nylon 6/6 Polyamide (PA66)	White	4	Square	Board to Cable/Wire	Kinked Pin Solder	Male Pin	6.1 mm	0.24 in	Through Hole	Shrouded - 4 Wall	Tin	2 A	100 VAC	1	All	Header	UL94 V-0	Brass	0.079 "	2 mm	0.134 "	3.4 mm	85 °C	-25 °C

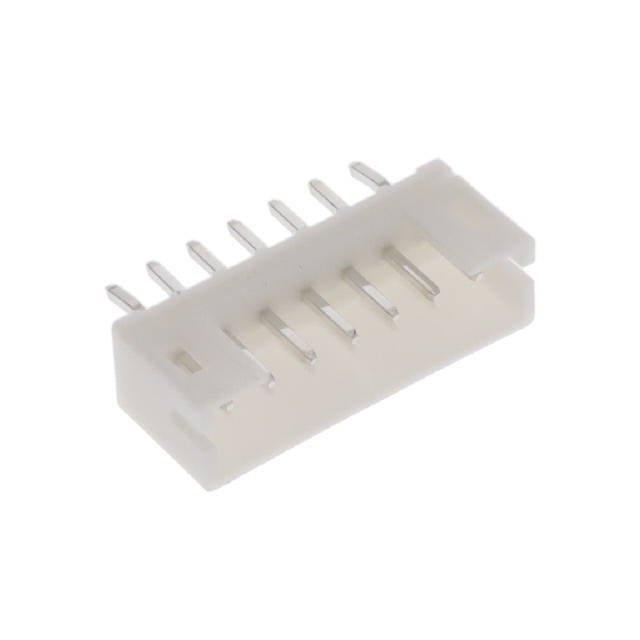

Adam Tech 2SH-C-07-TS	Nylon 6/6 Polyamide (PA66)	White	7	Square	Board to Cable/Wire	Kinked Pin Solder	Male Pin	6.1 mm	0.24 in	Through Hole	Shrouded - 4 Wall	Tin	2 A	100 VAC	1	All	Header	UL94 V-0	Brass	0.079 "	2 mm	0.134 "	3.4 mm	85 °C	-25 °C

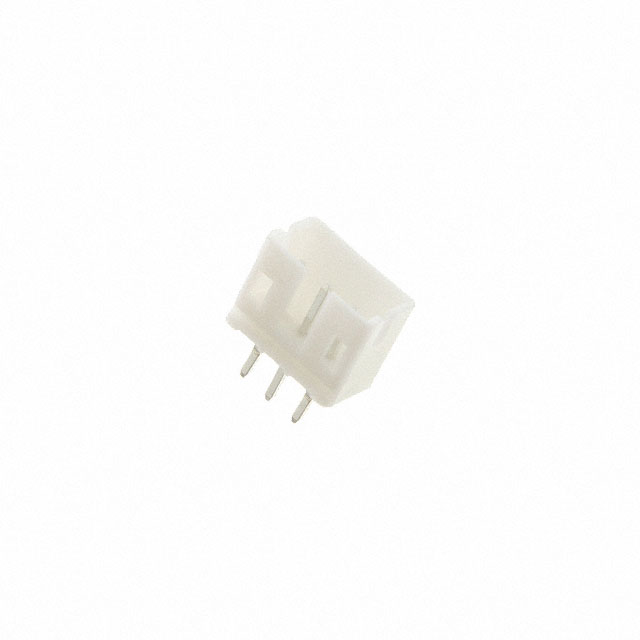

Adam Tech 2SH-C-03-TS	Nylon 6/6 Polyamide (PA66)	White		Square	Board to Cable/Wire	Kinked Pin Solder	Male Pin	6.1 mm	0.24 in	Through Hole	Shrouded - 4 Wall	Tin	2 A	100 VAC	1	All	Header	UL94 V-0	Brass	0.079 "	2 mm	0.134 "	3.4 mm	85 °C	-25 °C
Adam Tech 2SH-C-04-TS-SMT	Nylon 4/6 Polyamide (PA46)	White	4	Square	Board to Cable/Wire	Solder	Male Pin			Surface Mount	Shrouded - 4 Wall	Tin	2 A	100 VAC	1	All	Header	UL94 V-0	Brass	0.079 "	2 mm			85 °C	-25 °C	Solder Retention	6.6 mm	0.26 in
Adam Tech 2SH-C-09-TR	Nylon 6/6 Polyamide (PA66)	White	9	Square	Board to Cable/Wire	Kinked Pin Solder	Male Pin			Right Angle Through Hole	Shrouded - 4 Wall	Tin	2 A	100 VAC	1	All	Header	UL94 V-0	Brass	0.079 "	2 mm		3.3 mm	85 °C	-25 °C				0.13 "	0.197 "	5 mm

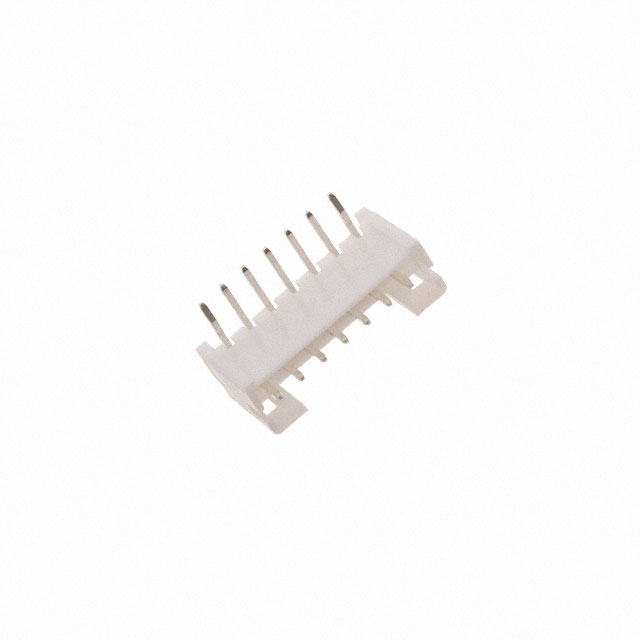

Adam Tech 2SH-C-07-TR	Nylon 6/6 Polyamide (PA66)	White	7	Square	Board to Cable/Wire	Kinked Pin Solder	Male Pin			Right Angle Through Hole	Shrouded - 4 Wall	Tin	2 A	100 VAC	1	All	Header	UL94 V-0	Brass	0.079 "	2 mm		3.3 mm	85 °C	-25 °C				0.13 "	0.197 "	5 mm

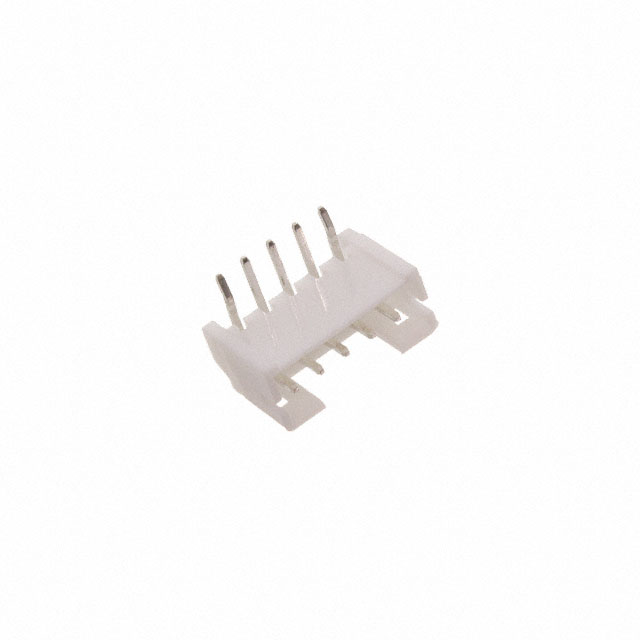

Adam Tech 2SH-C-05-TR	Nylon 6/6 Polyamide (PA66)	White	5	Square	Board to Cable/Wire	Kinked Pin Solder	Male Pin			Right Angle Through Hole	Shrouded - 4 Wall	Tin	2 A	100 VAC	1	All	Header	UL94 V-0	Brass	0.079 "	2 mm		3.3 mm	85 °C	-25 °C				0.13 "	0.197 "	5 mm

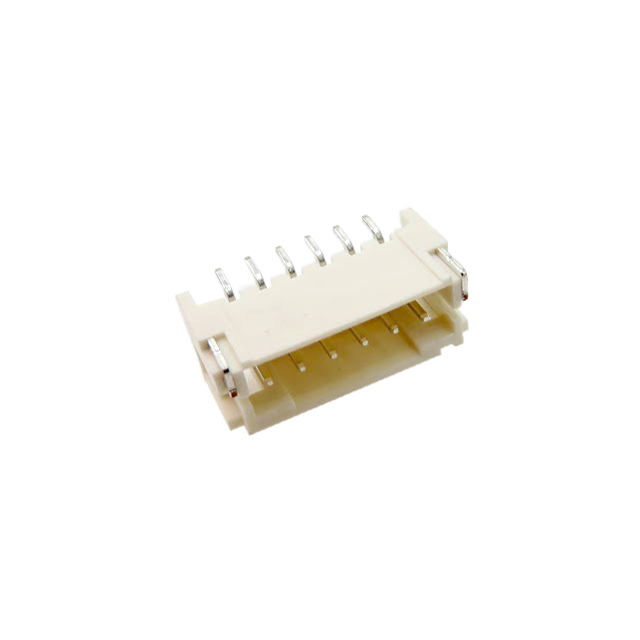

Adam Tech 2SH-C-06-TR-SMT	Thermoplastic	White	6	Square	Board to Cable/Wire	Solder	Male Pin			Right Angle Surface Mount	Shrouded - 4 Wall	Tin	2 A	100 VAC	1	All	Header	UL94 V-0	Brass	0.079 "	2 mm			85 °C	-25 °C	Solder Retention				0.217 in	5.51 mm
