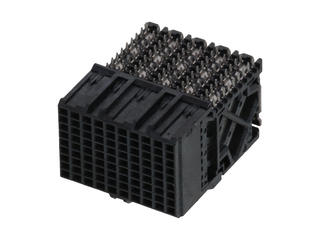

Impact 100 Ohm 3 Pair Right-Angle Daughtercard Receptacle, Left Guided, 10 Columns, 90 Circuits, Plated Through Hole Dimension 0.39mm, Polarizing Key Position D, Lead-Free
Impact 100 Ohm 3 Pair Right-Angle Daughtercard Receptacle, Left Guided, 10 Columns, 90 Circuits, Plated Through Hole Dimension 0.39mm, Polarizing Key Position D, Lead-Free
Impact 100 Ohm 3 Pair Right-Angle Daughtercard Receptacle, Left Guided, 10 Columns, 90 Circuits, Plated Through Hole Dimension 0.39mm, Polarizing Key Position D, Lead-Free
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Color | Number of Rows | Number of Positions Loaded | Voltage Rating | Connector Type | Number of Positions | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Material Flammability Rating | Contact Layout, Typical | Connector Style | Number of Columns | Mounting Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | 85 °C | -55 °C | Black | 9 | All | 30 VDC | Receptacle Female Sockets | 90 | Gold | 0.76 Ám | 30 Áin | UL94 V-0 | 30 Differential Pairs | Impact | 10 | Board Edge Right Angle Through Hole | Press-Fit |
