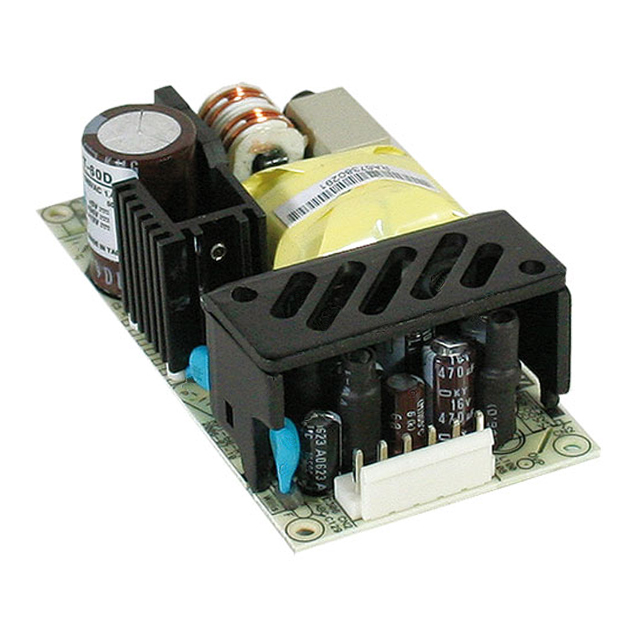

RPT-60 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 5V 12V -5V 47W
| Part | Minimum Load Required | Mounting Type | Efficiency | Approval Agency | Type | Current - Output 3 | Voltage - Output 2 | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Isolation | Applications | Voltage - Output 3 | Current - Output 2 | Voltage - Output 1 | Number of Outputs | Current - Output 1 | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Features | Power (Watts) | Voltage - Input [Max] | Voltage - Input [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Chassis Mount | 77 % | CB CE cURus TUV | Open Frame | 500 mA | 12 V | -20 °C | 65 °C | 4000 V | ITE (Commercial) Medical | -5 V | 2 A | 5 V | 3 | 4 A | 50.8 mm | 4 " | 101.6 mm | 29 mm | 2 in | 1.14 in | Universal Input | 47 W | 264 VAC 370 VDC | 90 VAC 127 VDC | |
MEAN WELL USA Inc. | Chassis Mount | 79 % | CB CE cURus TUV | Open Frame | 500 mA | 15 V | -20 °C | 65 °C | 4000 V | ITE (Commercial) Medical | -15 V | 1.5 A | 5 V | 3 | 4 A | 50.8 mm | 4 " | 101.6 mm | 29 mm | 2 in | 1.14 in | Adjustable Output Universal Input | 50 W | 264 VAC 370 VDC | 90 VAC 127 VDC | |
MEAN WELL USA Inc. | Chassis Mount | 79 % | CB CE cURus TUV | Open Frame | 500 mA | 24 V | -20 °C | 65 °C | 4000 V | ITE (Commercial) Medical | 12 V | 1 A | 5 V | 3 | 3.5 A | 50.8 mm | 4 " | 101.6 mm | 29 mm | 2 in | 1.14 in | Universal Input | 48 W | 264 VAC 370 VDC | 90 VAC 127 VDC |
