177908 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
POWER DBL LOCK CAP HSG P/M 4P(GW
| Part | Insulation Material | Number of Positions | Fastening Type | Color | Contact Termination | Contact Type | Number of Rows | Note | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Connector Type | Row Spacing | Row Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | ||||||||||||||||

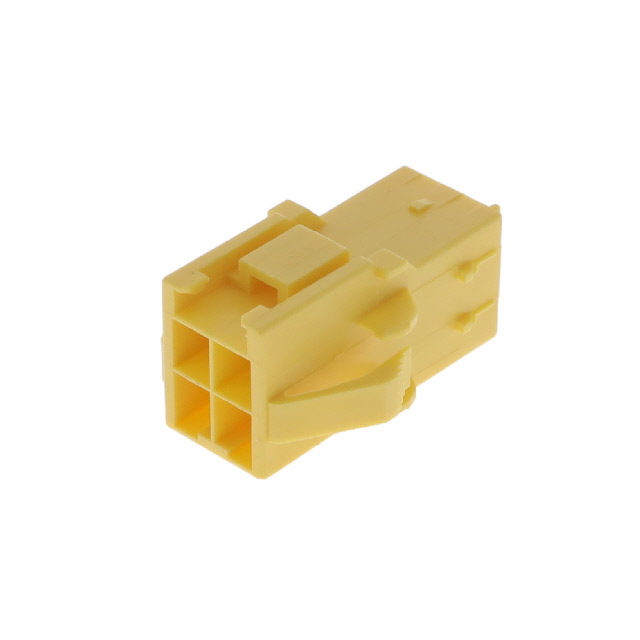

 TE Connectivity Raychem Cable Protection | Polyamide (PA66) Nylon 6/6 | 4 | Latch Holder | Yellow | Crimp | Tab | 2 | Contacts Not Included | 0.156 in | 3.96 mm | -30 ░C | 105 ░C | Panel Mount Snap-In | Receptacle | 4.6 mm | 0.181 in |

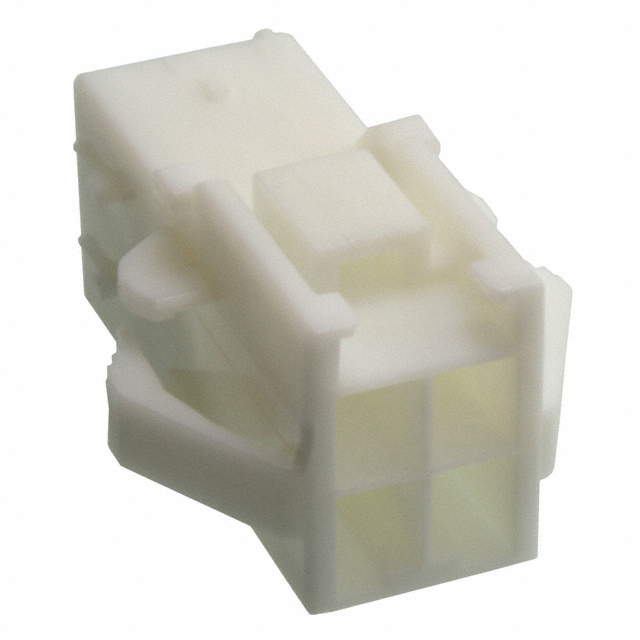

 TE Connectivity Raychem Cable Protection | Polyamide (PA66) Nylon 6/6 | 4 | Latch Holder | Natural | Crimp | Tab | 2 | Contacts Not Included | 0.156 in | 3.96 mm | -30 ░C | 105 ░C | Panel Mount Snap-In | Receptacle | 4.6 mm | 0.181 in |

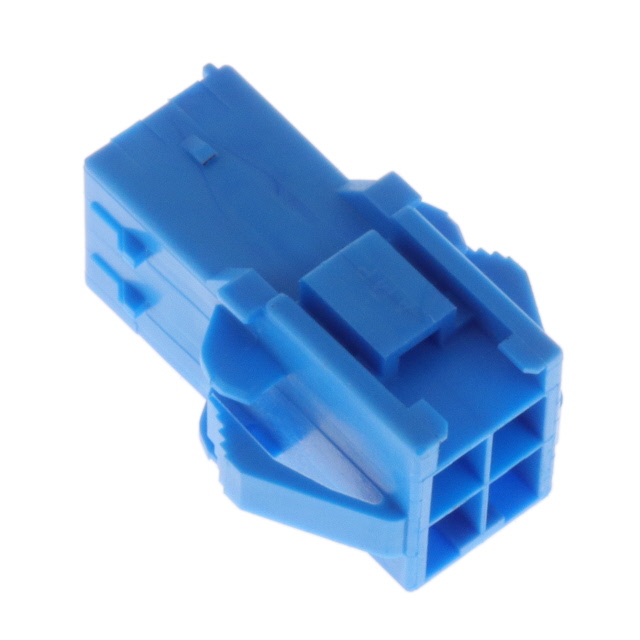

 TE Connectivity Raychem Cable Protection | Polyamide (PA66) Nylon 6/6 | 4 | Latch Holder | Blue | Crimp | Tab | 2 | Contacts Not Included | 0.156 in | 3.96 mm | -30 ░C | 105 ░C | Panel Mount Snap-In | Receptacle | 4.6 mm | 0.181 in |
