8360-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

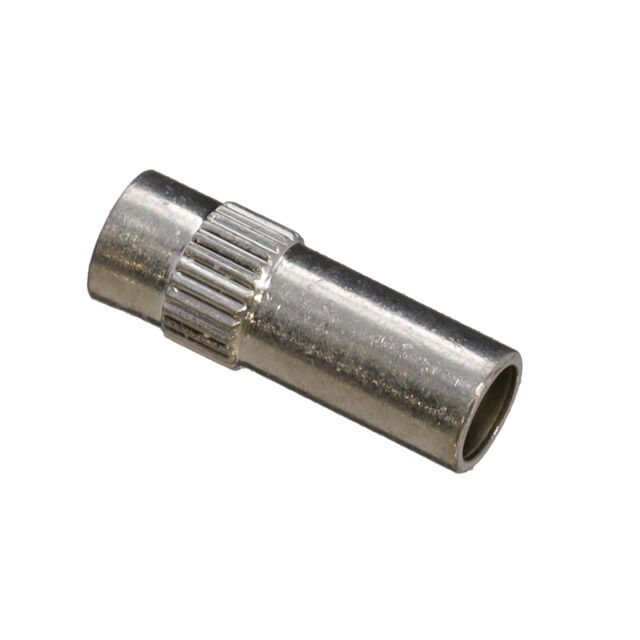

CONN PIN RCPT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Socket Depth [z] | Socket Depth [z] | Tail Type | Contact Material | Length - Overall [x] | Length - Overall [x] | Mounting Hole Diameter | Mounting Hole Diameter | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Termination | Flange Diameter [diameter] | Flange Diameter [diameter] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Contact Finish | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.131 in | 3.33 mm | No Tail | Beryllium Copper | 6.35 mm | 0.25 in | 0.064 " | 1.63 mm | 1.63 mm | 0.064 in | 200 Áin | 5.08 Ám | Press-Fit | 0.09 in | 2.29 mm | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " | Tin | ||
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | No Tail | Beryllium Copper | 6.35 mm | 0.25 in | 1.63 mm | 0.064 in | 200 Áin | 5.08 Ám | Knurled Press-Fit | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " | Tin-Lead | 0.087 in | 2.21 mm | ||||||
Mill-Max Manufacturing Corp. | -55 C | 125 °C | No Tail | Beryllium Copper | 6.35 mm | 0.25 in | 1.63 mm | 0.064 in | 10 Áin | 0.25 Ám | Knurled Press-Fit | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " | Gold | 0.087 in | 2.21 mm |
