408-029 Series

Manufacturer: EDAC Inc.

Catalog

STANDARD CARD EDGE CONNECTORS CARD EDGE METAL TO METAL 2 PIECE CONNECTORS

Part	Material - Insulation	Termination Rows [custom]	Card Type	Mounting Type	Card Thickness	Card Thickness	Gender	Contact Material	Number of Positions	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Color	Termination	Features	Contact Finish	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]

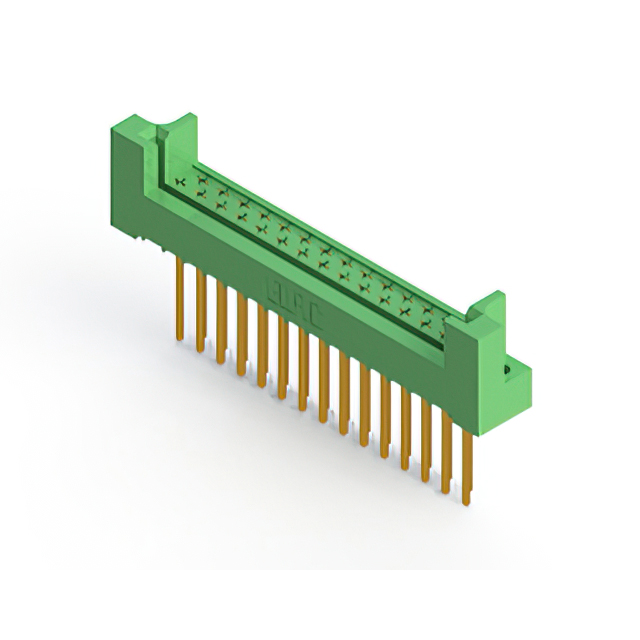

EDAC Inc. 408-029-542-222	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Panel Mount Through Hole	2.36 mm	0.093 "	Female	Copper Alloy	29	5.08 mm	0.2 in	-65 ░C	125 °C	2	0.25 Ám	10 Áin	Green	Wire Wrap	Card Guides	Gold	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "

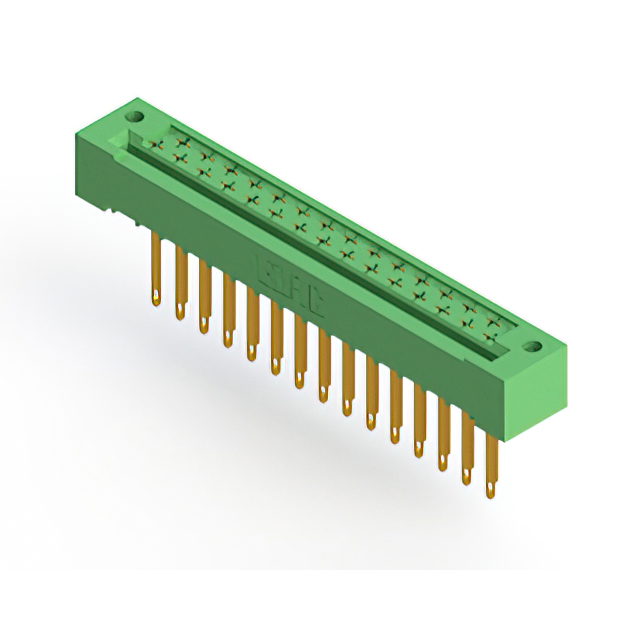

EDAC Inc. 408-029-540-112	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Panel Mount Through Hole	1.57 mm	0.062 in	Female	Copper Alloy	29	5.08 mm	0.2 in	-65 ░C	125 °C	2	0.25 Ám	10 Áin	Green	Wire Wrap		Gold	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "
EDAC Inc. 408-029-502-112	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Panel Mount Through Hole	1.57 mm	0.062 in	Female	Copper Alloy	29	5.08 mm	0.2 in	-65 ░C	125 °C	2	0.25 Ám	10 Áin	Green	Solder		Gold	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "
EDAC Inc. 408-029-520-122	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Panel Mount Through Hole	2.36 mm	0.093 "	Female	Copper Alloy	29	5.08 mm	0.2 in	-65 ░C	125 °C	2	0.25 Ám	10 Áin	Green	Solder		Gold	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "

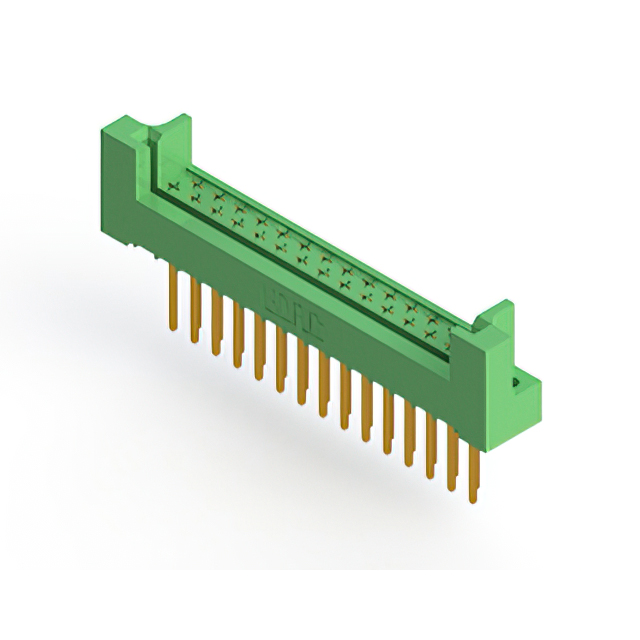

EDAC Inc. 408-029-541-212	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Panel Mount Through Hole	1.57 mm	0.062 in	Female	Copper Alloy	29	5.08 mm	0.2 in	-65 ░C	125 °C	2	0.25 Ám	10 Áin	Green	Wire Wrap	Card Guides	Gold	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "

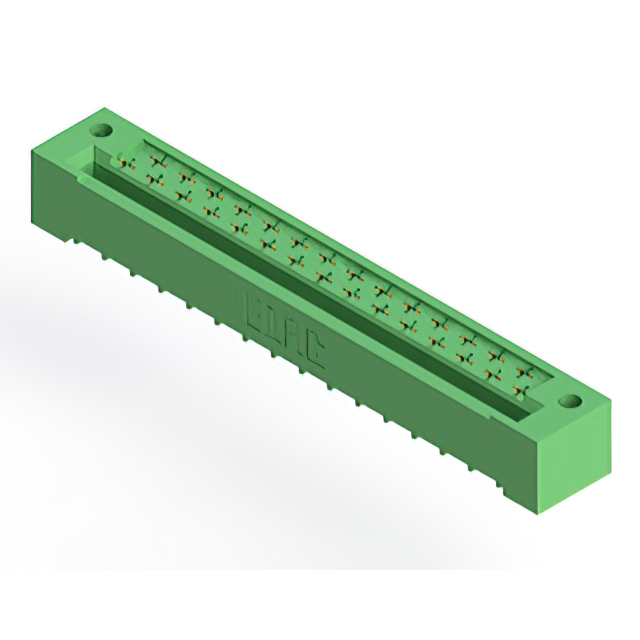

EDAC Inc. 408-029-523-122	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Panel Mount Through Hole	2.36 mm	0.093 "	Female	Copper Alloy	29	5.08 mm	0.2 in	-65 ░C	125 °C	2	0.25 Ám	10 Áin	Green	Solder		Gold	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "
EDAC Inc. 408-029-542-212	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Panel Mount Through Hole	1.57 mm	0.062 in	Female	Copper Alloy	29	5.08 mm	0.2 in	-65 ░C	125 °C	2	0.25 Ám	10 Áin	Green	Wire Wrap	Card Guides	Gold	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "
EDAC Inc. 408-029-541-122	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Panel Mount Through Hole	2.36 mm	0.093 "	Female	Copper Alloy	29	5.08 mm	0.2 in	-65 ░C	125 °C	2	0.25 Ám	10 Áin	Green	Wire Wrap		Gold	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "
EDAC Inc. 408-029-525-112	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Panel Mount Through Hole	1.57 mm	0.062 in	Female	Copper Alloy	29	5.08 mm	0.2 in	-65 ░C	125 °C	2	0.25 Ám	10 Áin	Green	Solder		Gold	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "

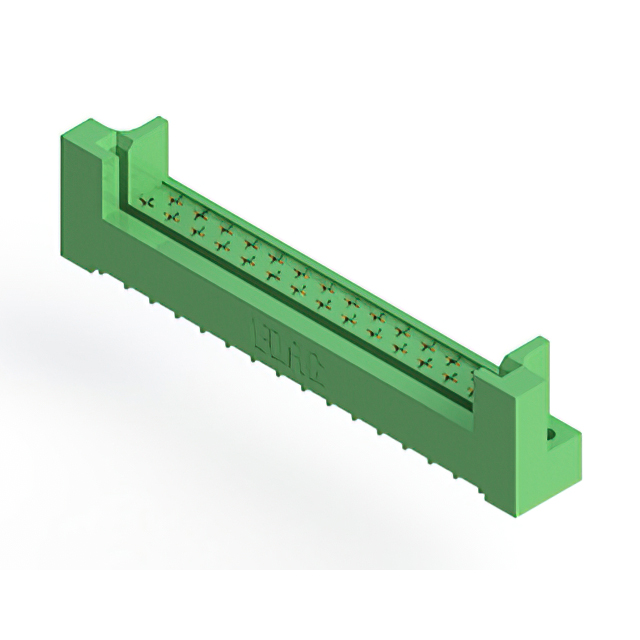

EDAC Inc. 408-029-525-212	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Panel Mount Through Hole	1.57 mm	0.062 in	Female	Copper Alloy	29	5.08 mm	0.2 in	-65 ░C	125 °C	2	0.25 Ám	10 Áin	Green	Solder	Card Guides	Gold	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "
