TPA2016D2 Series

2.8-W, stereo, analog input Class-D audio amp with auto. gain control & dynamic range compression

Catalog

2.8-W, stereo, analog input Class-D audio amp with auto. gain control & dynamic range compression

Part	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Max Output Power x Channels @ Load	Max Output Power x Channels @ Load [custom]	Mounting Type	Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Features	Package / Case	Supplier Device Package	Utilized IC / Part	Board Type	Supplied Contents	Supplier Device Package [x]	Supplier Device Package [y]
Texas Instruments TPA2016D2RTJT	85 °C	-40 °C	2-Channel (Stereo)	2.8 W	2	Surface Mount	Class D	2.5 V	5.5 V	Differential Inputs I2C Short-Circuit and Thermal Protection Shutdown Volume Control	20-WFQFN Exposed Pad	20-QFN (4x4)

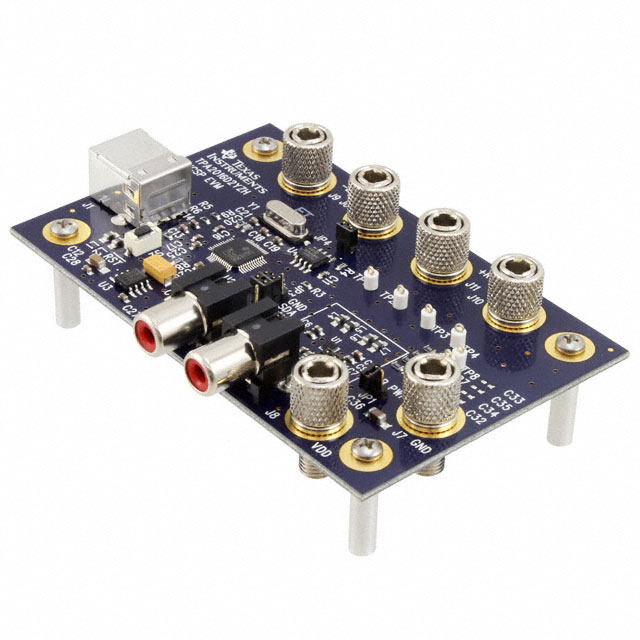

Texas Instruments TPA2016D2EVM			2-Channel (Stereo)	1.72 W 2				2.5 V	5.5 V				TPA2016D2	Fully Populated	Board(s)
Texas Instruments TPA2016D2YZHR	85 °C	-40 °C	2-Channel (Stereo)	2.8 W	2	Surface Mount	Class D	2.5 V	5.5 V	Differential Inputs I2C Short-Circuit and Thermal Protection Shutdown Volume Control	16-UFBGA DSBGA	16-DSBGA				2.24	2.16
Texas Instruments TPA2016D2RTJR	85 °C	-40 °C	2-Channel (Stereo)	2.8 W	2	Surface Mount	Class D	2.5 V	5.5 V	Differential Inputs I2C Short-Circuit and Thermal Protection Shutdown Volume Control	20-WFQFN Exposed Pad	20-QFN (4x4)

Catalog

2.8-W, stereo, analog input Class-D audio amp with auto. gain control & dynamic range compression

Key Features

• Filter-Free Class-D Architecture1.7 W/Ch Into 8 Ω at 5 V (10% THD+N)750 mW/Ch Into 8 Ω at 3.6 V (10% THD+N)2.8 W/Ch Into 4 Ω at 5 V (10% THD+N)1.5 W/Ch Into 4 Ω at 3.6 V (10% THD+N)Power Supply Range: 2.5 V to 5.5 VFlexible Operation With or Without I2CProgrammable DRC and AGC ParametersDigital I2C Volume Control /li>Selectable Gain from –28 dB to 30 dB in 1-dBSteps (When Compression is Used)Selectable Attack, Release, and Hold Times4 Selectable Compression RatiosLow Supply Current: 3.5 mALow Shutdown Current: 0.2 µAHigh PSRR: 80 dBFast Start-Up Time: 5 msAGC Enable or Disable FunctionLimiter Enable or Disable FunctionShort-Circuit and Thermal ProtectionSpace-Saving Package2.2 mm × 2.2 mm Nano-Free™ DSBGA (YZH)Filter-Free Class-D Architecture1.7 W/Ch Into 8 Ω at 5 V (10% THD+N)750 mW/Ch Into 8 Ω at 3.6 V (10% THD+N)2.8 W/Ch Into 4 Ω at 5 V (10% THD+N)1.5 W/Ch Into 4 Ω at 3.6 V (10% THD+N)Power Supply Range: 2.5 V to 5.5 VFlexible Operation With or Without I2CProgrammable DRC and AGC ParametersDigital I2C Volume Control /li>Selectable Gain from –28 dB to 30 dB in 1-dBSteps (When Compression is Used)Selectable Attack, Release, and Hold Times4 Selectable Compression RatiosLow Supply Current: 3.5 mALow Shutdown Current: 0.2 µAHigh PSRR: 80 dBFast Start-Up Time: 5 msAGC Enable or Disable FunctionLimiter Enable or Disable FunctionShort-Circuit and Thermal ProtectionSpace-Saving Package2.2 mm × 2.2 mm Nano-Free™ DSBGA (YZH)

Description

The TPA2016D2 device is a stereo, filter-free Class-D audio power amplifier with volume control, dynamic range compression (DRC), and automatic gain control (AGC). It is available in a 2.2 mm × 2.2 mm DSBGA package and 20-pin QFN package. The DRC and AGC function in the TPA2016D2 is programmable through a digital I2C interface. The DRC and AGC function can be configured to automatically prevent distortion of the audio signal and enhance quiet passages that are normally not heard. The DRC and AGC can also be configured to protect the speaker from damage at high power levels and compress the dynamic range of music to fit within the dynamic range of the speaker. The gain can be selected from –28 dB to +30 dB in 1-dB steps. The TPA2016D2 is capable of driving 1.7 W/Ch at 5 V or 750 mW/Ch at 3.6 V into 8-Ω load or 2.8 W/Ch at 5 V or 1.5 W/Ch at 3.6 V into 4-Ω load. The device features independent software shutdown controls for each channel and also provides thermal and short-circuit protection. In addition to these features, a fast start-up time and small package size make the TPA2016D2 an ideal choice for cellular handsets, PDAs, and other portable applications. The TPA2016D2 device is a stereo, filter-free Class-D audio power amplifier with volume control, dynamic range compression (DRC), and automatic gain control (AGC). It is available in a 2.2 mm × 2.2 mm DSBGA package and 20-pin QFN package. The DRC and AGC function in the TPA2016D2 is programmable through a digital I2C interface. The DRC and AGC function can be configured to automatically prevent distortion of the audio signal and enhance quiet passages that are normally not heard. The DRC and AGC can also be configured to protect the speaker from damage at high power levels and compress the dynamic range of music to fit within the dynamic range of the speaker. The gain can be selected from –28 dB to +30 dB in 1-dB steps. The TPA2016D2 is capable of driving 1.7 W/Ch at 5 V or 750 mW/Ch at 3.6 V into 8-Ω load or 2.8 W/Ch at 5 V or 1.5 W/Ch at 3.6 V into 4-Ω load. The device features independent software shutdown controls for each channel and also provides thermal and short-circuit protection. In addition to these features, a fast start-up time and small package size make the TPA2016D2 an ideal choice for cellular handsets, PDAs, and other portable applications.
