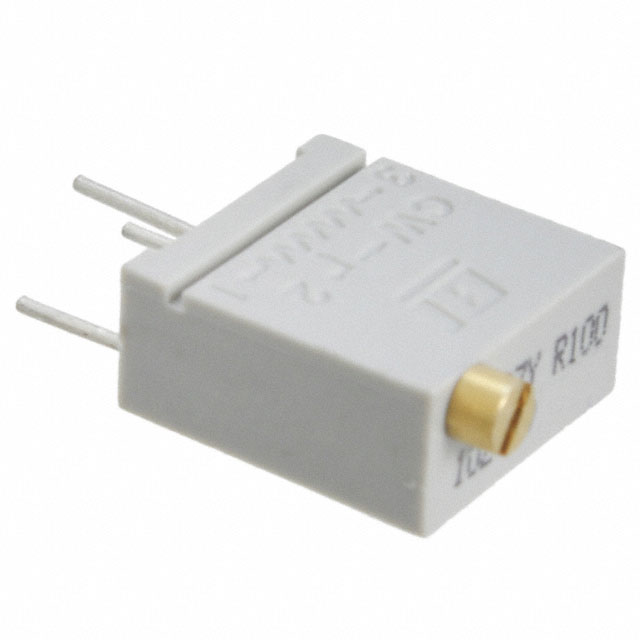

67WR Series

Catalog

TRIMMER 100K OHM 0.5W PC PIN TOP

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Power (Watts)	Power (Watts)	Temperature Coefficient	Resistance	Tolerance	Termination Style	Resistive Material	Adjustment Type	Number of Turns
TT Electronics/BI 67WR100KLF	0.375 in	4.95 mm	0.195 in	9.53 mm	Through Hole	0.5 W	0.5 W	100 ppm/°C	100 kOhms	10 %	PC Pins	Cermet	Top Adjustment	20
TT Electronics/BI 67WR500KLFTB	0.375 in	4.95 mm	0.195 in	9.53 mm	Through Hole	0.5 W	0.5 W	100 ppm/°C		10 %	PC Pins	Cermet	Top Adjustment	20
TT Electronics/BI 67WR100LF	0.375 in	4.95 mm	0.195 in	9.53 mm	Through Hole	0.5 W	0.5 W	100 ppm/°C	100 Ohms	10 %	PC Pins	Cermet	Top Adjustment	20
TT Electronics/BI 67WR1KLF	0.375 in	4.95 mm	0.195 in	9.53 mm	Through Hole	0.5 W	0.5 W	100 ppm/°C	1000 Ohms	10 %	PC Pins	Cermet	Top Adjustment	20
TT Electronics/BI 67WR10KLFTB	0.375 in	4.95 mm	0.195 in	9.53 mm	Through Hole	0.5 W	0.5 W	100 ppm/°C	10000 Ohms	10 %	PC Pins	Cermet	Top Adjustment	20
TT Electronics/BI 67WR2KLFTB	0.375 in	4.95 mm	0.195 in	9.53 mm	Through Hole	0.5 W	0.5 W	100 ppm/°C	2 kOhms	10 %	PC Pins	Cermet	Top Adjustment	20
TT Electronics/BI 67WR20LF	0.375 in	4.95 mm	0.195 in	9.53 mm	Through Hole	0.5 W	0.5 W	250 ppm/°C	20 Ohms	20 %	PC Pins	Cermet	Top Adjustment	20
TT Electronics/BI 67WR10KLF	0.375 in	4.95 mm	0.195 in	9.53 mm	Through Hole	0.5 W	0.5 W	100 ppm/°C	10000 Ohms	10 %	PC Pins	Cermet	Top Adjustment	20
TT Electronics/BI 67WR2KLF	0.375 in	4.95 mm	0.195 in	9.53 mm	Through Hole	0.5 W	0.5 W	100 ppm/°C	2 kOhms	10 %	PC Pins	Cermet	Top Adjustment	20

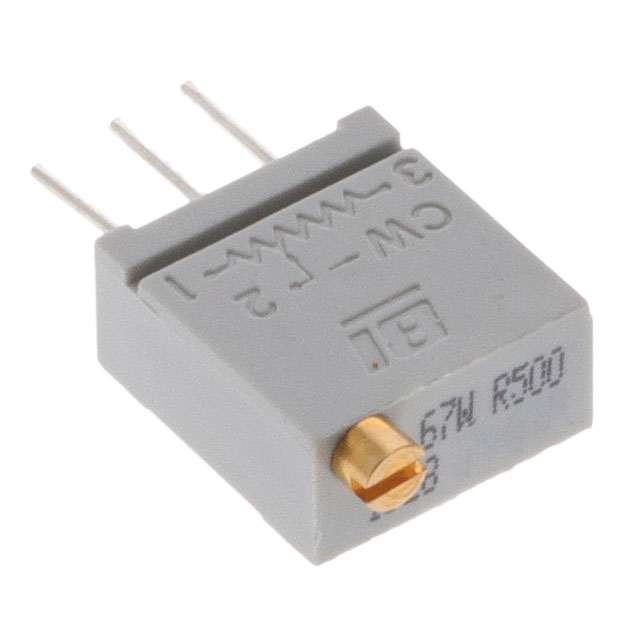

TT Electronics/BI 67WR500LF	0.375 in	4.95 mm	0.195 in	9.53 mm	Through Hole	0.5 W	0.5 W	100 ppm/°C	0.5 kOhms	10 %	PC Pins	Cermet	Top Adjustment	20
