GTC36 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER SMD 72POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Type	Voltage Rating	Number of Positions Loaded	Number of Rows [custom]	Insulation Material	Connector Type	Termination	Fastening Type	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Contact Shape	Mounting Type	Insulation Color	Insulation Height	Insulation Height	Current Rating (Amps)	Contact Finish - Post	Contact Finish - Mating	Number of Positions	Number of Rows
Sullins Connector Solutions GTC36DFBN-M30	2.54 µm	100 µin	Board to Board Cable	-65 ░C	125 °C	Unshrouded	0.1 in	2.54 mm	UL94 V-0	0.1 "	2.54 mm	Male Pin	600 V	All	2	Nylon 9T Polyamide (PA9T)	Header	Solder	Push-Pull	Phosphor Bronze	100 çin	2.54 çm	8.08 mm	0.318 in	Square	Surface Mount	Black	0.1 in	2.54 mm	3 A	Tin-Lead	Tin-Lead	72

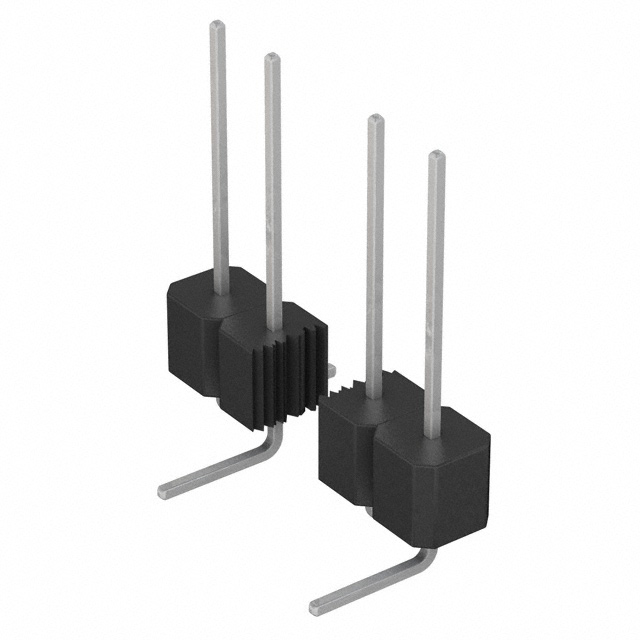

Sullins Connector Solutions GTC36SFBN-M30	2.54 µm	100 µin	Board to Board Cable	-65 ░C	125 °C	Unshrouded			UL94 V-0	0.1 "	2.54 mm	Male Pin	600 V	All		Nylon 9T Polyamide (PA9T)	Header	Solder	Push-Pull	Phosphor Bronze	100 çin	2.54 çm	8.08 mm	0.318 in	Square	Surface Mount	Black	0.1 in	2.54 mm	3 A	Tin-Lead	Tin-Lead	36	1
Sullins Connector Solutions GTC36SBSN-M89	2.54 µm	100 µin	Board to Board Cable	-65 ░C	125 °C	Unshrouded			UL94 V-0	0.1 "	2.54 mm	Male Pin	600 V	All		Nylon 9T Polyamide (PA9T)	Header	Solder	Push-Pull	Phosphor Bronze	100 çin	2.54 çm	5.84 mm	0.23 in	Square	Right Angle Surface Mount	Black	0.14 in	3.56 mm	3 A	Tin-Lead	Tin-Lead	36	1
