213780 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

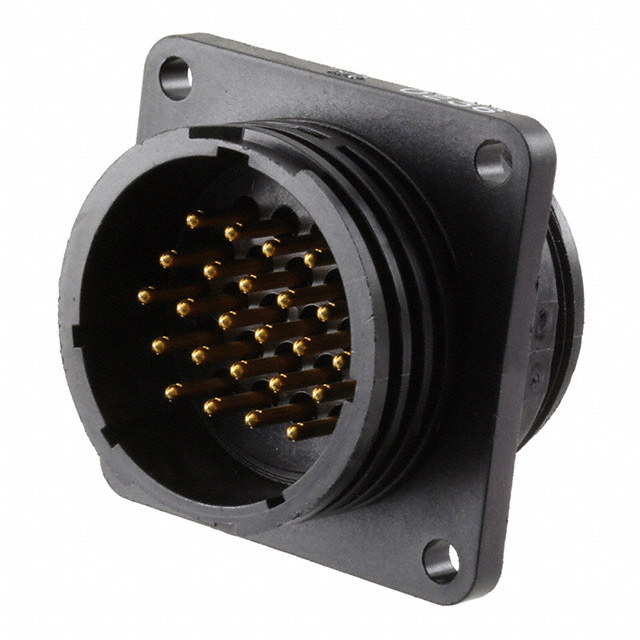

CONN CPC RECPT 24POS
| Part | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Mounting Type | Color | Contact Material | Voltage Rating | Orientation | Contact Finish - Mating | Mounting Feature | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Connector Type | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 24 | 23 | Solder | 105 ░C | -55 °C | Unshielded | Panel Mount Through Hole | Black | Brass | 250 VAC | A | Tin-Lead | Flange | 24 | 2.54 çm | 100 çin | UL94 V-0 | Male Pins Receptacle | |
 TE Connectivity Raychem Cable Protection | 24 | 23 | Solder | 105 ░C | -55 °C | Panel Mount Through Hole | Brass | 250 VAC | A | Gold | Flange | 24 | 0.76 Ám | 30 Áin | UL94 V-0 | Male Pins Receptacle | Plastic |
