Nano-Fit Right-Angle Header, Through Hole, 2.50mm Pitch, Single Row, 2 Circuits, 0.38µm Gold (Au) Plating, Natural, Glow-Wire Capable, Tape and Reel
Nano-Fit Right-Angle Header, Through Hole, 2.50mm Pitch, Single Row, 2 Circuits, 0.38µm Gold (Au) Plating, Natural, Glow-Wire Capable, Tape and Reel
Nano-Fit Right-Angle Header, Through Hole, 2.50mm Pitch, Single Row, 2 Circuits, 0.38µm Gold (Au) Plating, Natural, Glow-Wire Capable, Tape and Reel
| Part | Number of Rows | Mounting Type | Insulation Material | Pitch - Mating | Pitch - Mating | Number of Positions | Termination | Contact Material | Insulation Height [z] | Insulation Height [z] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Shape | Shrouding | Features | Insulation Color | Contact Length - Post | Contact Length - Post [x] | Number of Positions Loaded | Connector Type | Voltage Rating | Applications | Contact Type | Style | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Fastening Type | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Current Rating (Amps) | Insulation Height | Insulation Height | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

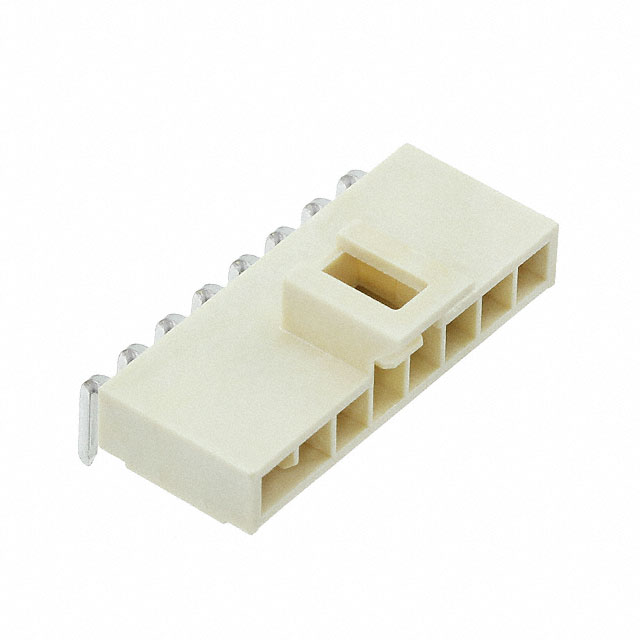

 Molex | 1 | Through Hole Right Angle | Liquid Crystal Polymer (LCP) | 2.5 mm | 0.098 in | 8 | Solder | Brass | 3.78 mm | 0.149 " | 59 Áin | 1.5 Ám | Square | Shrouded - 4 Wall | Board Guide | Natural | 3.2 mm | 0.126 in | All | Header | 250 VDC | Automotive General Purpose Industrial Medical Military Telecommunications | Male Pin | Board to Cable/Wire | 1.5 µm | 59 µin | Latch Holder | Tin | -40 °C | 105 ░C | |||||
 Molex | 1 | Through Hole Right Angle | Liquid Crystal Polymer (LCP) | 2.5 mm | 0.098 in | Solder | Brass | 3.78 mm | 0.149 " | 59 Áin | 1.5 Ám | Square | Shrouded - 4 Wall | Board Guide | Natural | 3.2 mm | 0.126 in | All | Header | 250 VDC | Automotive General Purpose Industrial Medical Military Telecommunications | Male Pin | Board to Cable/Wire | 1.5 µm | 59 µin | Latch Holder | Tin | -40 °C | 105 ░C | ||||||
Molex | 1 | Through Hole Right Angle | Liquid Crystal Polymer (LCP) | 2.5 mm | 0.098 in | 8 | Solder | Brass | 3.78 mm | 0.149 " | 30 Áin | 0.76 Ám | Square | Shrouded - 4 Wall | Board Guide | Natural | 3.2 mm | 0.126 in | All | Header | 250 VDC | Automotive General Purpose Industrial Medical Military Telecommunications | Male Pin | Board to Cable/Wire | 1.5 µm | 59 µin | Latch Holder | Tin | -40 °C | 105 ░C | Gold | ||||
Molex | 1 | Through Hole Right Angle | Liquid Crystal Polymer (LCP) | 2.5 mm | 0.098 in | 6 | Solder | Brass | 59 Áin | 1.5 Ám | Square | Shrouded - 4 Wall | Board Guide | Natural | 3.2 mm | 0.126 in | All | Header | 250 VAC | Male Pin | Board to Cable/Wire | 1.5 µm | 59 µin | Latch Holder | Tin | -40 °C | 105 ░C | Varies by Wire Gauge | 0.26 in | 6.6 mm | UL94 V-0 | ||||

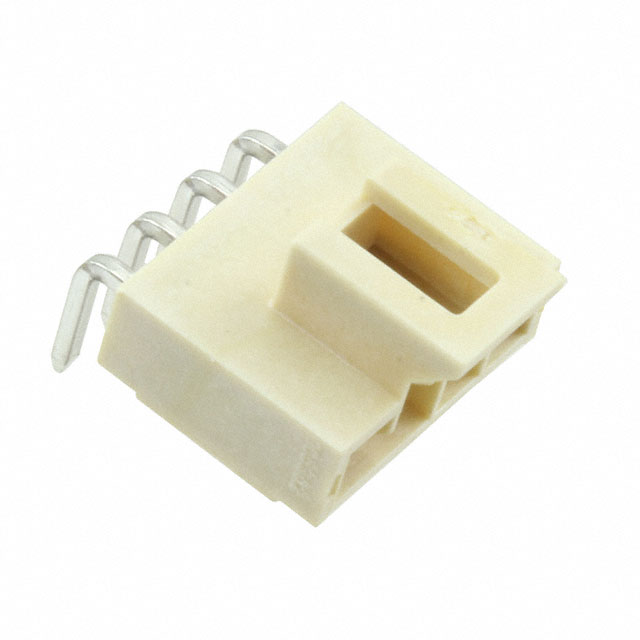

 Molex | 1 | Through Hole Right Angle | Liquid Crystal Polymer (LCP) | 2.5 mm | 0.098 in | 4 | Solder | Brass | 3.78 mm | 0.149 " | 59 Áin | 1.5 Ám | Square | Shrouded - 4 Wall | Board Guide | Natural | 3.2 mm | 0.126 in | All | Header | 250 VDC | Automotive General Purpose Industrial Medical Military Telecommunications | Male Pin | Board to Cable/Wire | 1.5 µm | 59 µin | Latch Holder | Tin | -40 °C | 105 ░C | |||||
Molex | 1 | Through Hole Right Angle | Liquid Crystal Polymer (LCP) | 2.5 mm | 0.098 in | Solder | Brass | 3.78 mm | 0.149 " | 15 µin | 0.38 µm | Square | Shrouded - 4 Wall | Board Guide | Natural | 3.2 mm | 0.126 in | All | Header | 250 VDC | Automotive General Purpose Industrial Medical Military Telecommunications | Male Pin | Board to Cable/Wire | 1.5 µm | 59 µin | Latch Holder | Tin | -40 °C | 105 ░C | Gold | |||||

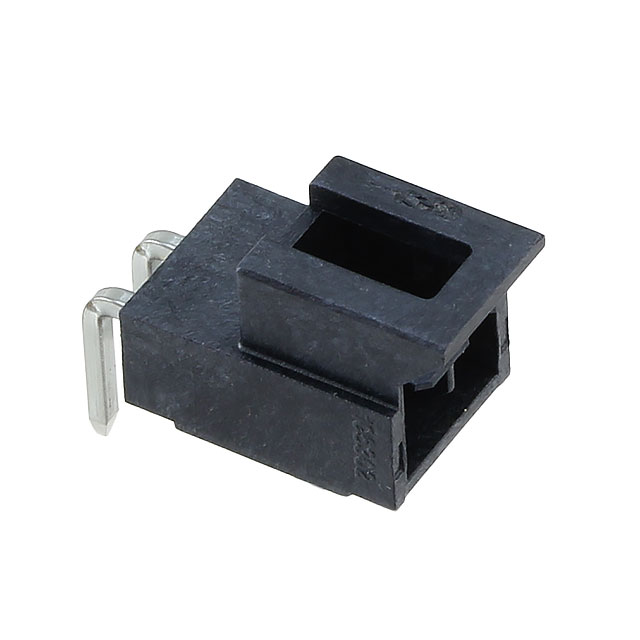

 Molex | 1 | Through Hole Right Angle | Liquid Crystal Polymer (LCP) | 2.5 mm | 0.098 in | 2 | Solder | Brass | 3.78 mm | 0.149 " | 59 Áin | 1.5 Ám | Square | Shrouded - 4 Wall | Board Guide | Black | 3.2 mm | 0.126 in | All | Header | 250 VDC | Automotive General Purpose Industrial Medical Military Telecommunications | Male Pin | Board to Cable/Wire | 1.5 µm | 59 µin | Latch Holder | Tin | -40 °C | 105 ░C | |||||
 Molex | 1 | Through Hole Right Angle | Liquid Crystal Polymer (LCP) | 2.5 mm | 0.098 in | Solder | Brass | 3.78 mm | 0.149 " | 59 Áin | 1.5 Ám | Square | Shrouded - 4 Wall | Board Guide | Black | 3.2 mm | 0.126 in | All | Header | 250 VDC | Automotive General Purpose Industrial Medical Military Telecommunications | Male Pin | Board to Cable/Wire | 1.5 µm | 59 µin | Latch Holder | Tin | -40 °C | 105 ░C | ||||||

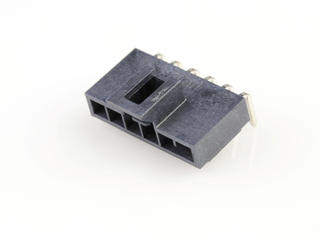

 Molex | 1 | Through Hole Right Angle | Liquid Crystal Polymer (LCP) | 2.5 mm | 0.098 in | 6 | Solder | Brass | 3.78 mm | 0.149 " | 30 Áin | 0.76 Ám | Square | Shrouded - 4 Wall | Board Guide | Black | 3.2 mm | 0.126 in | All | Header | 250 VDC | Automotive General Purpose Industrial Medical Military Telecommunications | Male Pin | Board to Cable/Wire | 1.5 µm | 59 µin | Latch Holder | Tin | -40 °C | 105 ░C | Gold | ||||
 Molex | 1 | Through Hole Right Angle | Liquid Crystal Polymer (LCP) | 2.5 mm | 0.098 in | 8 | Solder | Brass | 15 µin | 0.38 µm | Square | Shrouded - 4 Wall | Board Guide | Natural | 3.2 mm | 0.126 in | All | Header | 250 VAC | Male Pin | Board to Cable/Wire | 1.5 µm | 59 µin | Latch Holder | Tin | -40 °C | 115 °C | Gold | Varies by Wire Gauge | 0.26 in | 6.6 mm | UL94 V-0 |
