M83-LFT1F Series

Catalog

PCB RECEPTACLE, BOARD-TO-BOARD, 2 MM, 3 ROWS, 96 CONTACTS, THROUGH HOLE MOUNT

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Contact Shape	Applications	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Number of Positions	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Connector Type	Termination	Number of Positions Loaded	Number of Rows [custom]	Contact Finish - Mating	Mounting Type	Pitch - Mating	Pitch - Mating	Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Insulation Color	Features	Mated Stacking Heights	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post

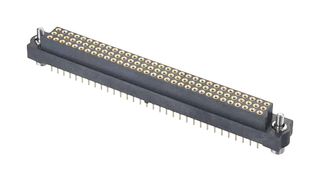

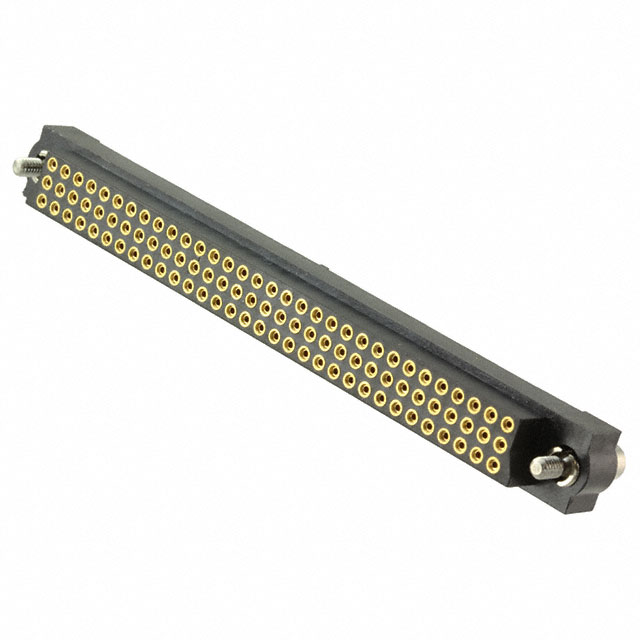

Harwin Inc. M83-LFT1F2N96-0000-000	10 Áin	0.25 çm	Beryllium Copper	Circular	Automotive General Purpose Military	Polyphenylene Sulfide (PPS) Glass Filled	2 mm	0.079 in	UL94 V-0	96	120 VDC	12 Áin	0.3 Ám	Gold	Receptacle	Solder	All	3	Gold	Through Hole	0.079 "	2 mm	Board to Board Cable	-55 C	125 °C	Female Socket	Black	Jackscrews Mating Flange Mounting Flange	10.65 mm	8.38 mm	0.33 in	0.118 in	3 mm
Harwin Inc. M83-LFT1F2N60-0000-000	10 Áin	0.25 çm	Beryllium Copper	Circular	Automotive General Purpose Military	Polyphenylene Sulfide (PPS) Glass Filled	2 mm	0.079 in	UL94 V-0	60	120 VDC	12 Áin	0.3 Ám	Gold	Receptacle	Solder	All	3	Gold	Through Hole	0.079 "	2 mm	Board to Board Cable	-55 C	125 °C	Female Socket	Black	Jackscrews Mating Flange Mounting Flange	10.65 mm	8.38 mm	0.33 in	0.118 in	3 mm

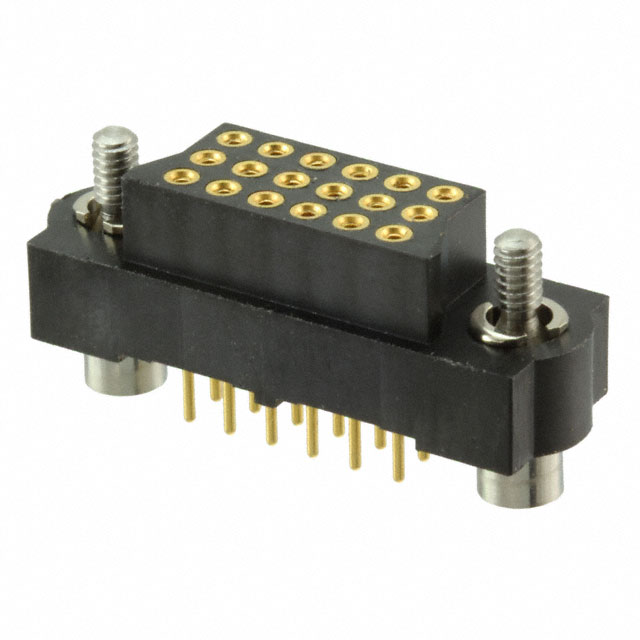

Harwin Inc. M83-LFT1F2N18-0000-000	10 Áin	0.25 çm	Beryllium Copper	Circular	Automotive General Purpose Military	Polyphenylene Sulfide (PPS) Glass Filled	2 mm	0.079 in	UL94 V-0	18	120 VDC	12 Áin	0.3 Ám	Gold	Receptacle	Solder	All	3	Gold	Through Hole	0.079 "	2 mm	Board to Board Cable	-55 C	125 °C	Female Socket	Black	Jackscrews Mating Flange Mounting Flange	10.65 mm	8.38 mm	0.33 in	0.118 in	3 mm
