TSS42 Series

Catalog

DIODE SMALL SIGNAL SCHOTTKY 30V 0.2A 2-PIN CASE 0603(1608METRIC) T/R

Part	Mounting Type	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Capacitance @ Vr, F	Speed	Speed	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Technology	Voltage - Forward (Vf) (Max) @ If [Max]	Package / Case	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Reverse Recovery Time (trr)	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package
Taiwan Semiconductor Corporation TSS42U RGG	Surface Mount	-55 °C	125 °C	10 pF	200 mA	Any Speed	200 mA	500 nA	Schottky	1 V	0603 Metric	0201	30 V

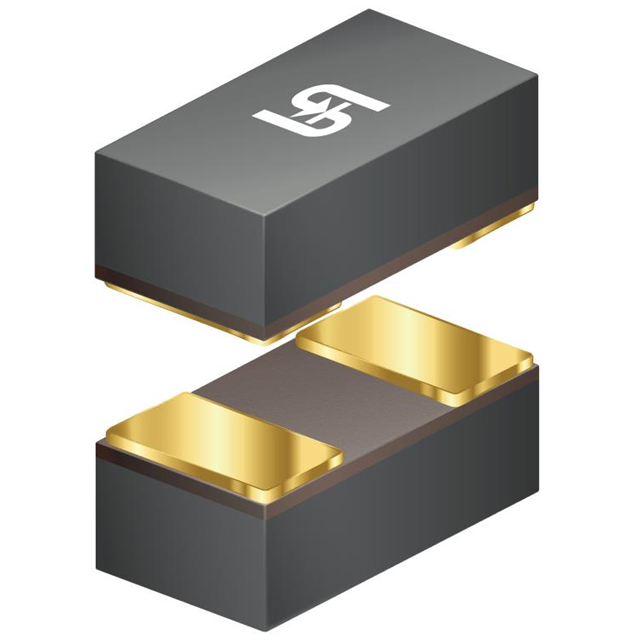

Taiwan Semiconductor Corporation TSS42L RWG	Surface Mount	-55 °C	125 °C	10 pF	200 mA	Any Speed	200 mA	500 nA	Schottky			1005 (2512 Metric)	30 V	5 ns	650 mV	1005
