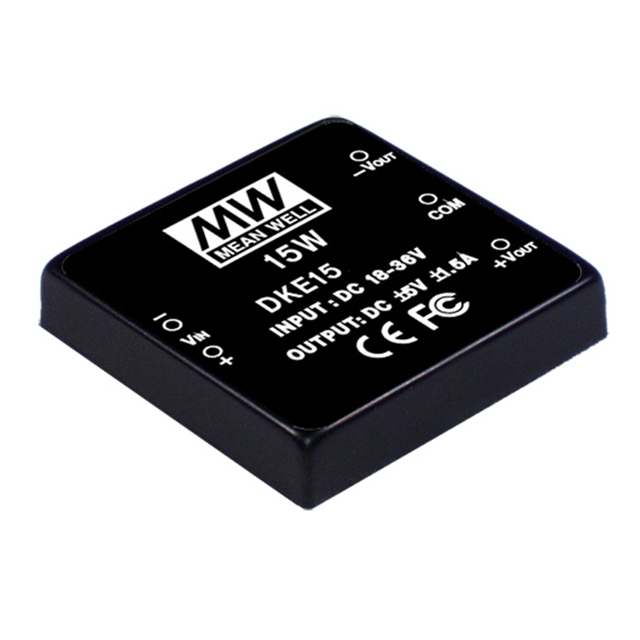

DKE15 Series

Catalog

DC DC CONVERTER +/-5V 15W

Part	Package / Case	Type	Features	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max)	Number of Outputs	Voltage - Input (Max) [Max]	Power (Watts)	Mounting Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 2	Applications	Efficiency	Voltage - Output 1	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Current - Output (Max) [Max]
MEAN WELL USA Inc. DKE15B-05	5-DIP Module	Isolated Module	OCP SCP	1000 V	-25 °C	71 °C	1.5 A	2	36 V	15 W	Through Hole	50.8 mm	0.43 in	2 in	11 mm	50.8 mm	2 in	-5 V	ITE (Commercial)	83 %	5 V	18 V
MEAN WELL USA Inc. DKE15B-12	5-DIP Module	Isolated Module	OCP SCP	1000 V	-25 °C	71 °C		2	36 V	15 W	Through Hole	50.8 mm	0.43 in	2 in	11 mm	50.8 mm	2 in	-12 V	ITE (Commercial)	83 %	12 V	18 V	625 mA	625 mA
MEAN WELL USA Inc. DKE15C-24	5-DIP Module	Isolated Module	OCP SCP	1000 V	-25 °C	71 °C		2	72 V	15 W	Through Hole	50.8 mm	0.43 in	2 in	11 mm	50.8 mm	2 in	-24 V	ITE (Commercial)	85 %	24 V	36 V	313 mA	313 mA
MEAN WELL USA Inc. DKE15A-12	5-DIP Module	Isolated Module	OCP SCP	1000 V	-25 °C	71 °C		2	18 V	15 W	Through Hole	50.8 mm	0.43 in	2 in	11 mm	50.8 mm	2 in	-12 V	ITE (Commercial)		12 V	9 V	625 mA	625 mA
MEAN WELL USA Inc. DKE15B-24	5-DIP Module	Isolated Module	OCP SCP	1000 V	-25 °C	71 °C		2	36 V	15 W	Through Hole	50.8 mm	0.43 in	2 in	11 mm	50.8 mm	2 in	-24 V	ITE (Commercial)	84 %	24 V	18 V	313 mA	313 mA
MEAN WELL USA Inc. DKE15B-15	5-DIP Module	Isolated Module	OCP SCP	1000 V	-25 °C	71 °C	500 mA	2	36 V	15 W	Through Hole	50.8 mm	0.43 in	2 in	11 mm	50.8 mm	2 in	-15 V	ITE (Commercial)	83 %	15 V	18 V
MEAN WELL USA Inc. DKE15C-05	5-DIP Module	Isolated Module	OCP SCP	1000 V	-25 °C	71 °C	1.5 A	2	72 V	15 W	Through Hole	50.8 mm	0.43 in	2 in	11 mm	50.8 mm	2 in	-5 V	ITE (Commercial)	79 %	5 V	36 V
MEAN WELL USA Inc. DKE15C-12	5-DIP Module	Isolated Module	OCP SCP	1000 V	-25 °C	71 °C		2	72 V	15 W	Through Hole	50.8 mm	0.43 in	2 in	11 mm	50.8 mm	2 in	-12 V	ITE (Commercial)		12 V	36 V	625 mA	625 mA
MEAN WELL USA Inc. DKE15C-15	5-DIP Module	Isolated Module	OCP SCP	1000 V	-25 °C	71 °C	500 mA	2	72 V	15 W	Through Hole	50.8 mm	0.43 in	2 in	11 mm	50.8 mm	2 in	-15 V	ITE (Commercial)		15 V	36 V
