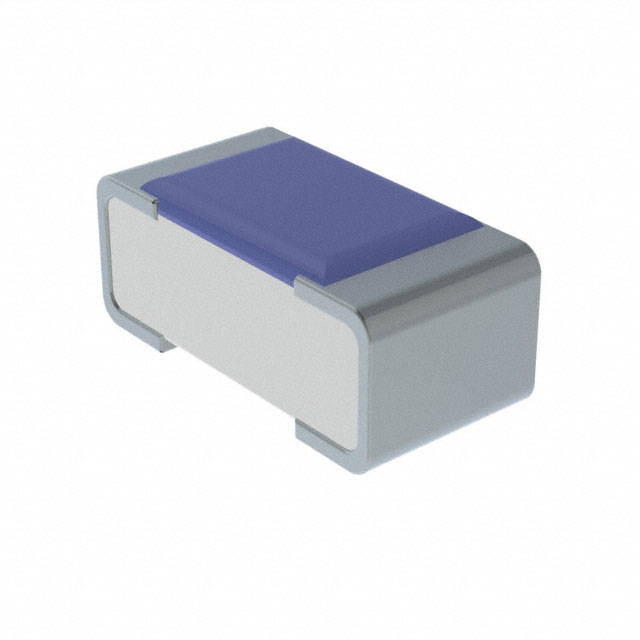

RK73G1H Series

Manufacturer: KOA Speer Electronics, Inc.

Catalog

Catalog

RES 430K OHM 0.5% 1/20W 0201

...

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Number of Terminations [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Temperature Coefficient	Power (Watts)	Power (Watts)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Features	Tolerance	Ratings	Package / Case	Package / Case	Resistance	Composition	Supplier Device Package
KOA Speer Electronics, Inc. RK73G1HTTC4303D	0.012 in	0.024 in	0.3 mm	0.6 mm	2	155 C	-55 C	50 ppm/░C	0.05 W	50 mW	0.01 in	0.26 mm	Automotive AEC-Q200	0.5 %	AEC-Q200	0603 Metric	0201	430 kOhms	Thick Film	0201
KOA Speer Electronics, Inc. RK73G1HTTC6800D	0.012 in	0.024 in	0.3 mm	0.6 mm	2	155 C	-55 C	50 ppm/░C	0.05 W	50 mW	0.01 in	0.26 mm	Automotive AEC-Q200	0.5 %	AEC-Q200	0603 Metric	0201	680 Ohms	Thick Film	0201
KOA Speer Electronics, Inc. RK73G1HTTC4701D	0.012 in	0.024 in	0.3 mm	0.6 mm	2	155 C	-55 C	50 ppm/░C	0.05 W	50 mW	0.01 in	0.26 mm	Automotive AEC-Q200	0.5 %	AEC-Q200	0603 Metric	0201	4.7 kOhms	Thick Film	0201
KOA Speer Electronics, Inc. RK73G1HTTC9100D	0.012 in	0.024 in	0.3 mm	0.6 mm	2	155 C	-55 C	50 ppm/░C	0.05 W	50 mW	0.01 in	0.26 mm	Automotive AEC-Q200	0.5 %	AEC-Q200	0603 Metric	0201	910 Ohms	Thick Film	0201
KOA Speer Electronics, Inc. RK73G1HTTC3601F	0.012 in	0.024 in	0.3 mm	0.6 mm	2	155 C	-55 C	50 ppm/░C	0.05 W	50 mW	0.01 in	0.26 mm	Automotive AEC-Q200	1 %	AEC-Q200	0603 Metric	0201	3.6 kOhms	Thick Film	0201
KOA Speer Electronics, Inc. RK73G1HTTC2700F	0.012 in	0.024 in	0.3 mm	0.6 mm	2	155 C	-55 C	50 ppm/░C	0.05 W	50 mW	0.01 in	0.26 mm	Automotive AEC-Q200	1 %	AEC-Q200	0603 Metric	0201	270 Ohms	Thick Film	0201
KOA Speer Electronics, Inc. RK73G1HTTC2001D	0.012 in	0.024 in	0.3 mm	0.6 mm	2	155 C	-55 C	50 ppm/░C	0.05 W	50 mW	0.01 in	0.26 mm	Automotive AEC-Q200	0.5 %	AEC-Q200	0603 Metric	0201	2 kOhms	Thick Film	0201
KOA Speer Electronics, Inc. RK73G1HTTC3603D	0.012 in	0.024 in	0.3 mm	0.6 mm	2	155 C	-55 C	50 ppm/░C	0.05 W	50 mW	0.01 in	0.26 mm	Automotive AEC-Q200	0.5 %	AEC-Q200	0603 Metric	0201	360 kOhms	Thick Film	0201
KOA Speer Electronics, Inc. RK73G1HTTC2401F	0.012 in	0.024 in	0.3 mm	0.6 mm	2	155 C	-55 C	50 ppm/░C	0.05 W	50 mW	0.01 in	0.26 mm	Automotive AEC-Q200	1 %	AEC-Q200	0603 Metric	0201	2.4 kOhms	Thick Film	0201
KOA Speer Electronics, Inc. RK73G1HTTC6801D	0.012 in	0.024 in	0.3 mm	0.6 mm	2	155 C	-55 C	50 ppm/░C	0.05 W	50 mW	0.01 in	0.26 mm	Automotive AEC-Q200	0.5 %	AEC-Q200	0603 Metric	0201	6.8 kOhms	Thick Film	0201
