140-504 Series

Manufacturer: EDAC Inc.

Catalog

CONN RCPT HSG 4POS 2.00MM

Part	Note	Contact Termination	Connector Type	Number of Rows	Contact Type	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Color	Pitch [x]	Pitch [x]	Features	Number of Positions	Fastening Type	Mounting Type	Contact Shape	Contact Finish - Post	Contact Material	Insulation Height	Insulation Height	Material Flammability Rating	Current Rating (Amps)	Insulation Color	Pitch - Mating	Pitch - Mating	Voltage Rating	Termination	Style	Number of Positions Loaded	Shrouding	Insulation Height [z]	Insulation Height [z]

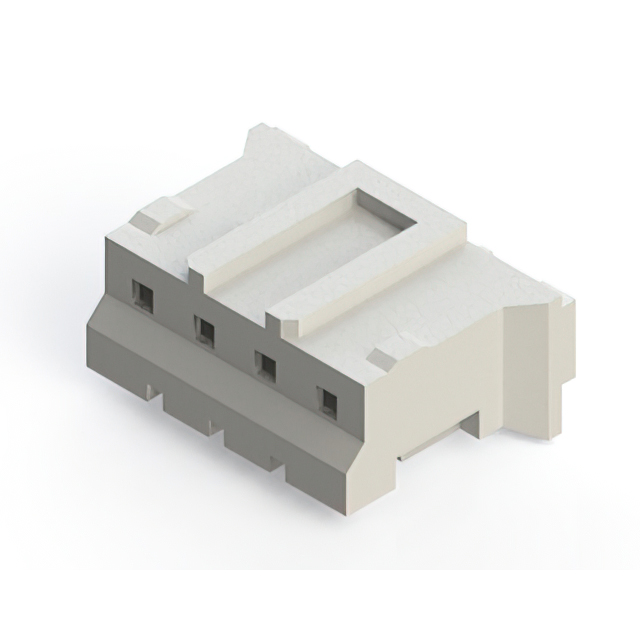

EDAC Inc. 140-504-210-011	Contacts Not Included	Crimp	Receptacle	1	Female Socket	Nylon 6/6 Polyamide (PA66)	85 °C	-25 °C	Natural	0.079 in	2 mm	Polarizing Key	4	Detent Lock	Free Hanging (In-Line)

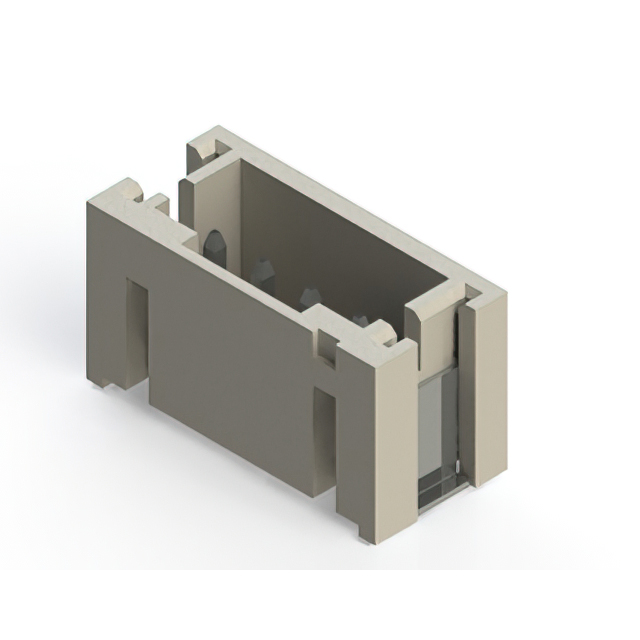

EDAC Inc. 140-504-417-011			Header	1	Male Pin	Liquid Crystal Polymer (LCP)	105 ░C	-40 C				Solder Retention	4	Detent Lock	Surface Mount	Square	Tin	Brass	0.217 in	5.51 mm	UL94 V-0	2 A	Natural	0.079 "	2 mm	100 VAC	Solder	Board to Cable/Wire	All	Shrouded - 4 Wall

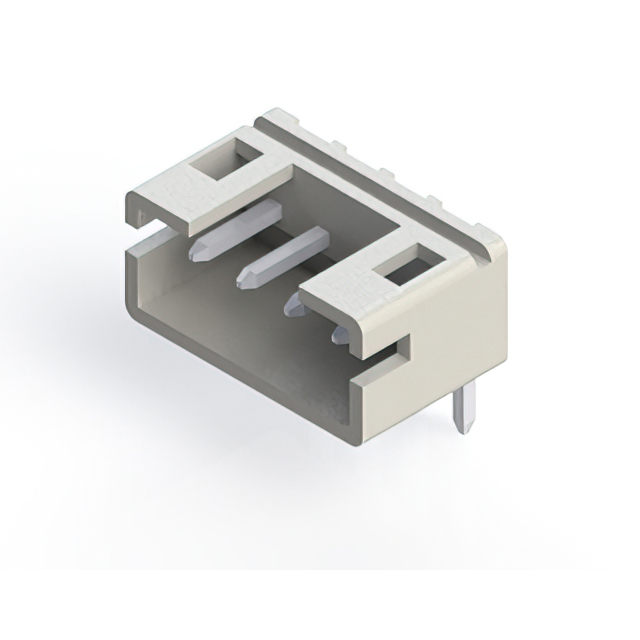

EDAC Inc. 140-504-415-100			Header	1	Male Pin	Nylon 6/6 Polyamide (PA66)	105 ░C	-40 C					4	Detent Lock	Right Angle Through Hole	Square	Tin	Brass			UL94 V-0	2 A	Natural	0.079 "	2 mm	100 VAC	Solder	Board to Cable/Wire	All	Shrouded - 4 Wall	0.185 in	4.7 mm

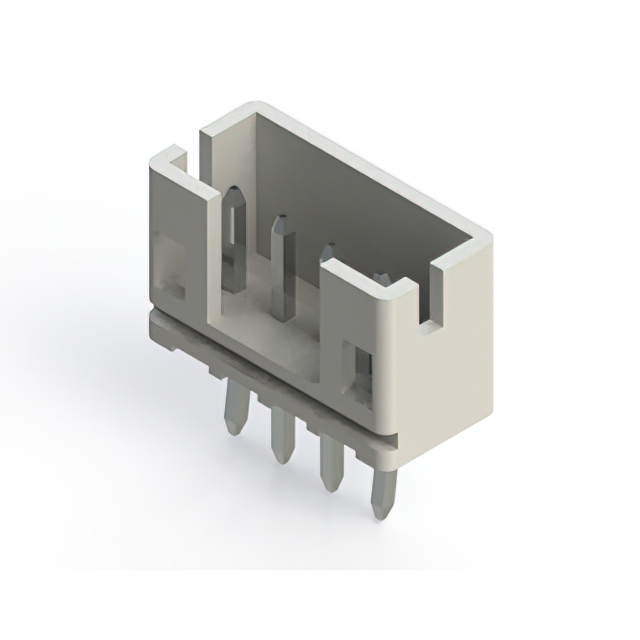

EDAC Inc. 140-504-415-001			Header	1	Male Pin	Nylon 6/6 Polyamide (PA66)	105 ░C	-40 C					4	Detent Lock	Through Hole	Square	Tin	Brass			UL94 V-0	2 A	Natural	0.079 "	2 mm	100 VAC	Kinked Pin Solder	Board to Cable/Wire	All	Shrouded - 4 Wall	0.24 in	6.1 mm

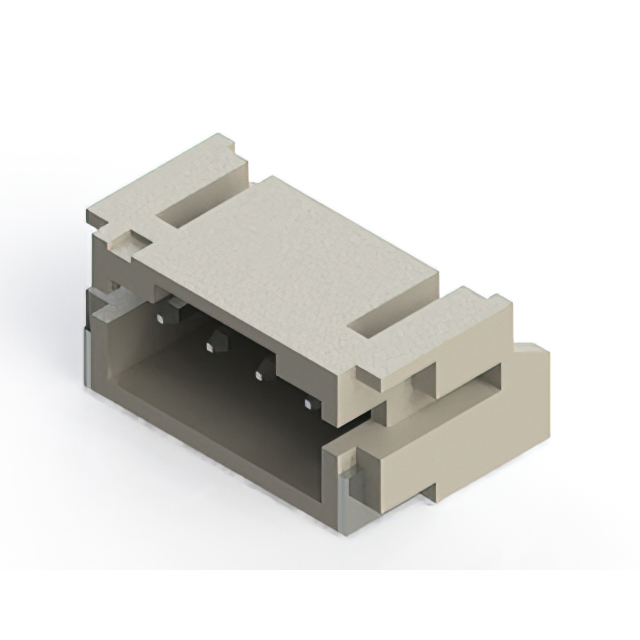

EDAC Inc. 140-504-417-060			Header	1	Male Pin	Nylon 9T Polyamide (PA9T)	85 °C	-25 °C				Solder Retention	4	Detent Lock	Right Angle Surface Mount	Square	Tin	Brass	0.217 in	5.51 mm	UL94 V-0	2 A	Natural	0.079 "	2 mm	100 VAC	Solder	Board to Cable/Wire	All	Shrouded - 4 Wall

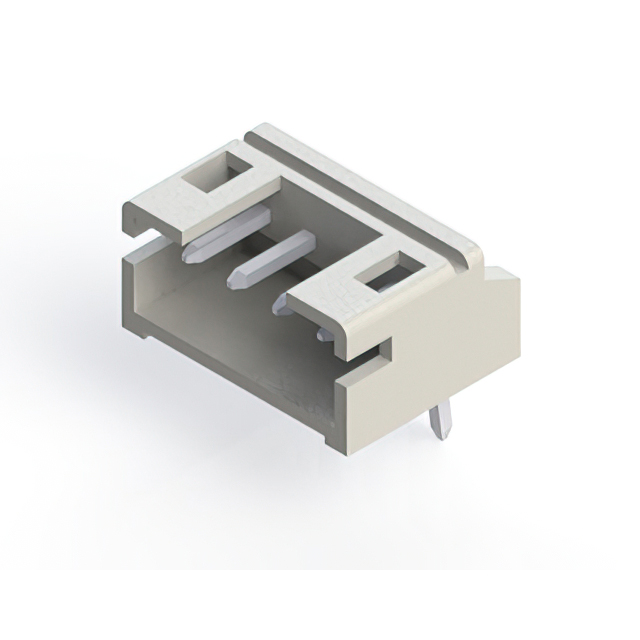

EDAC Inc. 140-504-415-000			Header	1	Male Pin	Nylon 6/6 Polyamide (PA66)	105 ░C	-40 C					4	Detent Lock	Right Angle Through Hole	Square	Tin	Brass	0.197 "	5 mm	UL94 V-0	2 A	Natural	0.079 "	2 mm	100 VAC	Kinked Pin Solder	Board to Cable/Wire	All	Shrouded - 4 Wall
