0001.2501 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

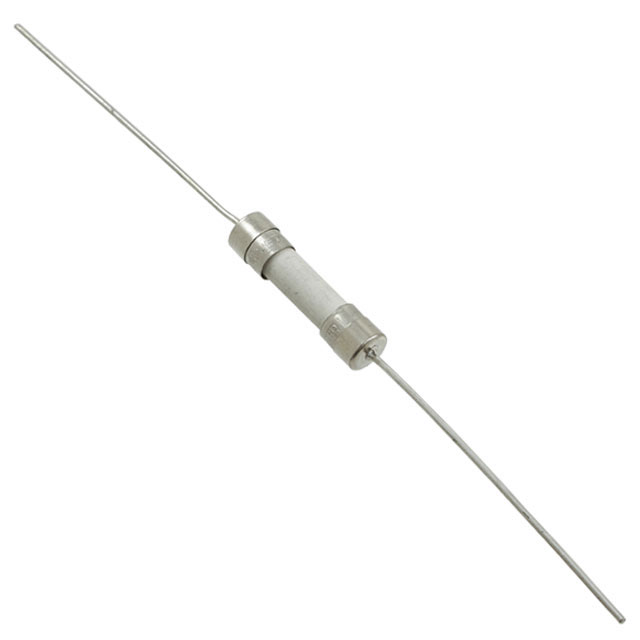

FUSE CERM 500MA 250VAC 300VDC
| Part | Voltage Rating - AC | Fuse Type | Package / Case [y] | Package / Case | Package / Case [x] | Response Time | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Voltage Rating - DC | Mounting Type | Melting I²t | Current Rating (Amps) | Breaking Capacity @ Rated Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 250 V | Cartridge Ceramic | 20 mm | Axial | 5 mm | Slow Blow | -55 C | 125 °C | 0.213 in | 0.886 in | 22.5 mm | 5.4 mm | 300 V | Through Hole | 0.5 I²t | 0.5 A | 1.5 kA |
